Question

Which Versa FleVNF build should I use for my hardware box?


Solution

Versa FlexVNF is supported on a variety of platforms ranging from Atom to Xeon-based processors. To take advantage of the new CPU instruction sets (for optimum performance), two different types of Versa FlexVNF builds are released

  • wsm: Use this build for Atom based CPU (Westmere)
  • non-wsm: Use this build for Xeon based CPU (Sandybridge)


The table below illustrates the builds to use on different hardware.


Versa Model
FlexVNF Package to use
Processor Family (CPU)
  • V100-NW
  • V110-NW
  • V120-NW
  • V100-EX-NW
  • V110-EX-NW
  • V120-EX-NW
  • Versa-100
  • Versa-110

wsm build


Example:

versa-flexvnf-20230413-100510-18f21b3-21.2.3-wsm.bin



Atom
  • Versa-500
  • Versa-510
  • Versa-520

wsm build


Example:

versa-flexvnf-20230413-100510-18f21b3-21.2.3-wsm.bin



Atom

  • Versa-800-A
  • Versa-810-A

non-wsm build

Example:
versa-flexvnf-20221103-050000-856bdfb-21.3.2.bin


Xeon-D

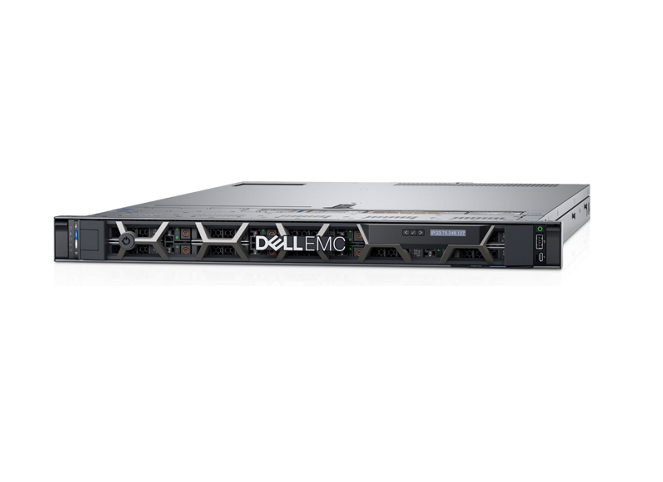

  • Versa 1000
non-wsm build

Example:

versa-flexvnf-20221103-050000-856bdfb-21.3.2.bin




Xeon
