This article describes how to Create Workflow Template using Versa Director.

Step 1.  After logging in to Versa Director GUI,

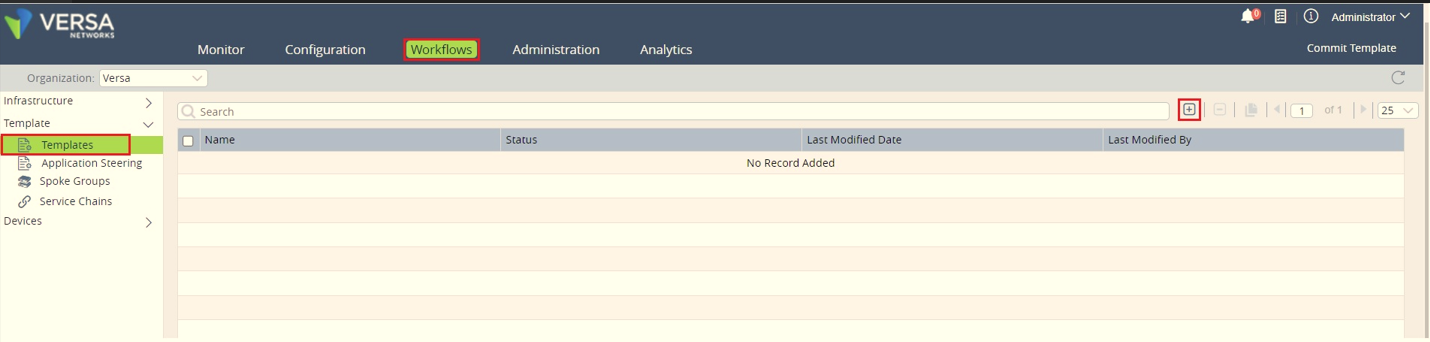

Go to Director > Workflows > Template > Click on Add Button.

Step 2 :

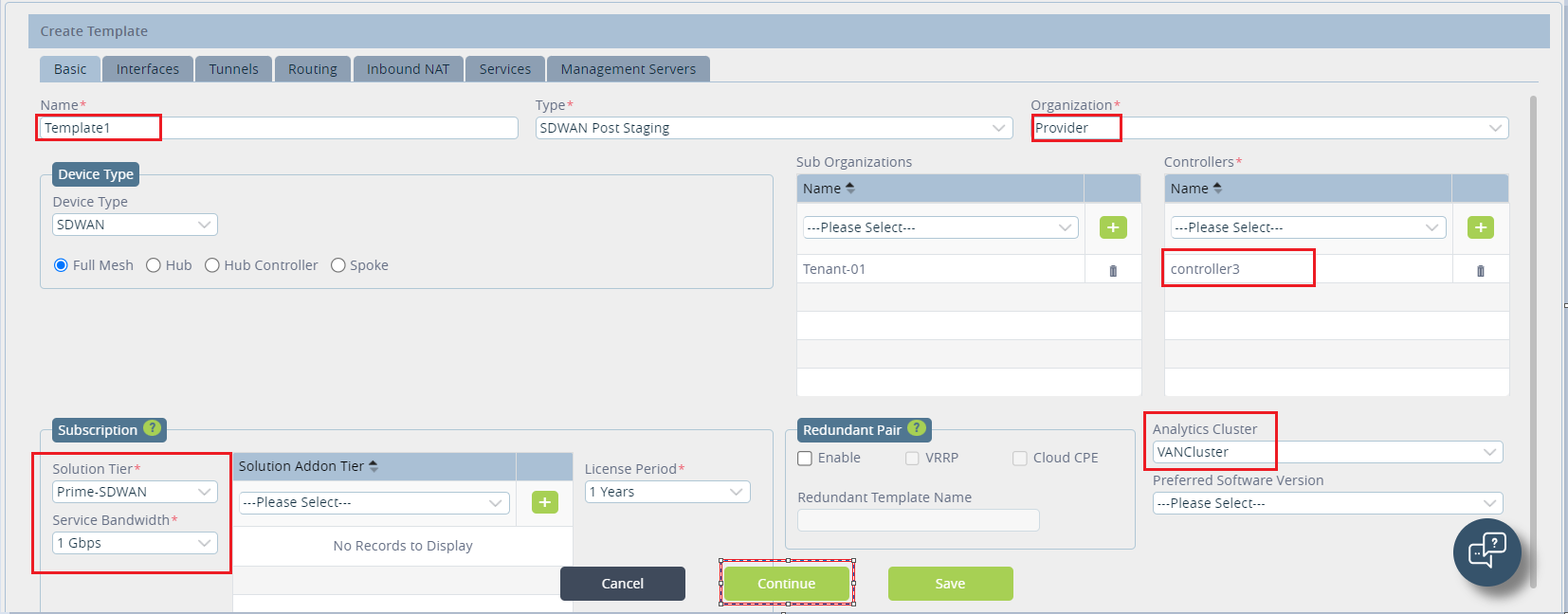

Enter the Template Name , Select the Template Type ,Select the Organization Name.

Select the Sub org (optional) ,Select the Controller.

Select the solution Tier and Service Bandwidth.

Select the Analytics-cluster.

Click on Continue.

Step 3 :

Navigate to interface Tab.

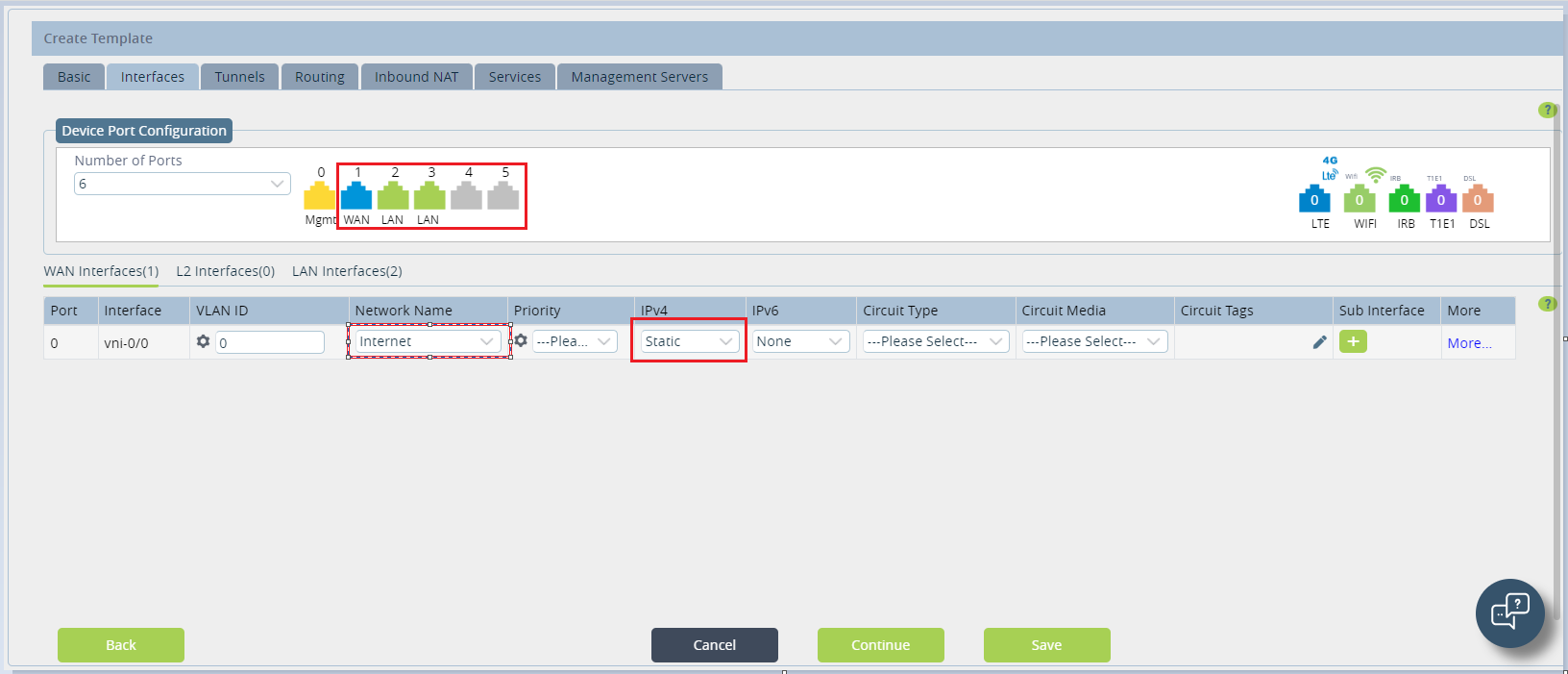

Create the WAN interface, Create the WAN Network Name, Click On +Create WAN Network.

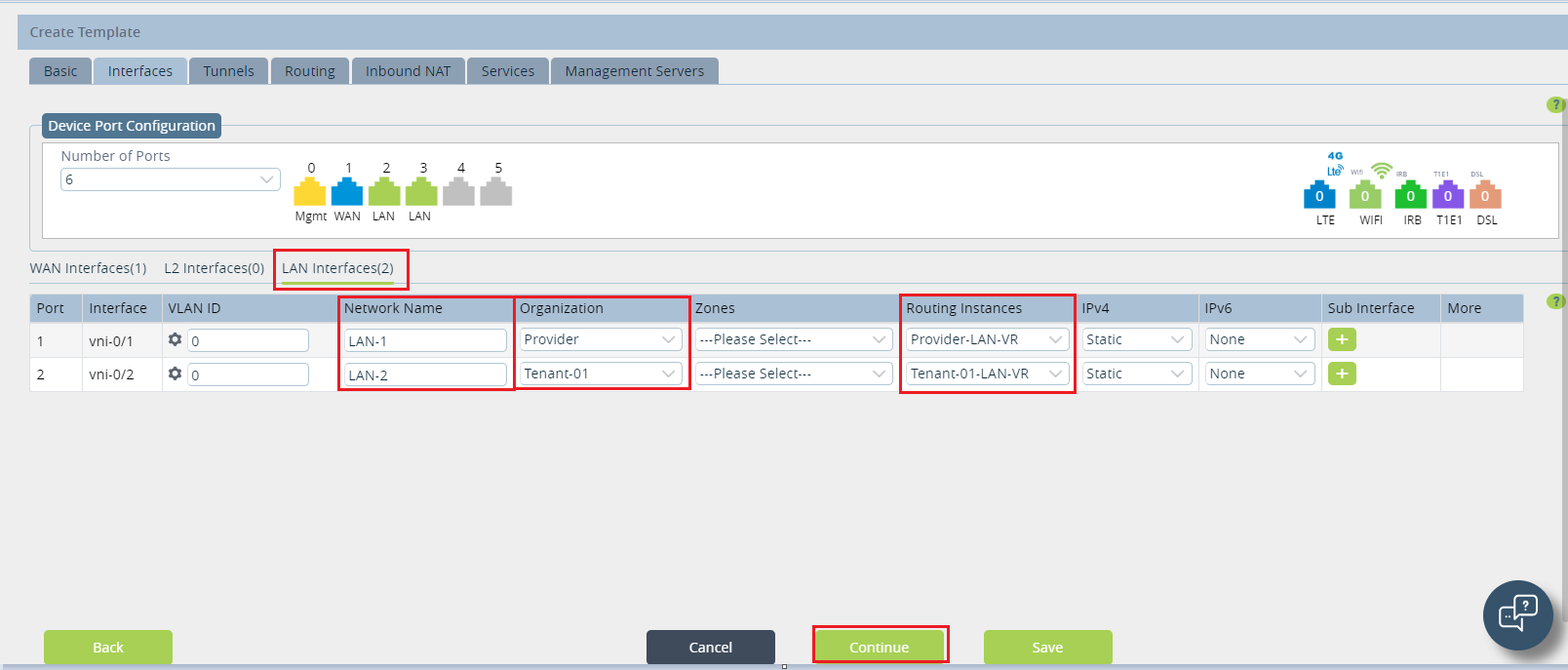

Create the LAN interface, Enter the Network Name, Select the Organization.

Click on Continue.

Please Note: Transport Domain ID has significance to enable communication between Branches and also between Branch and Controller.

Step 4.

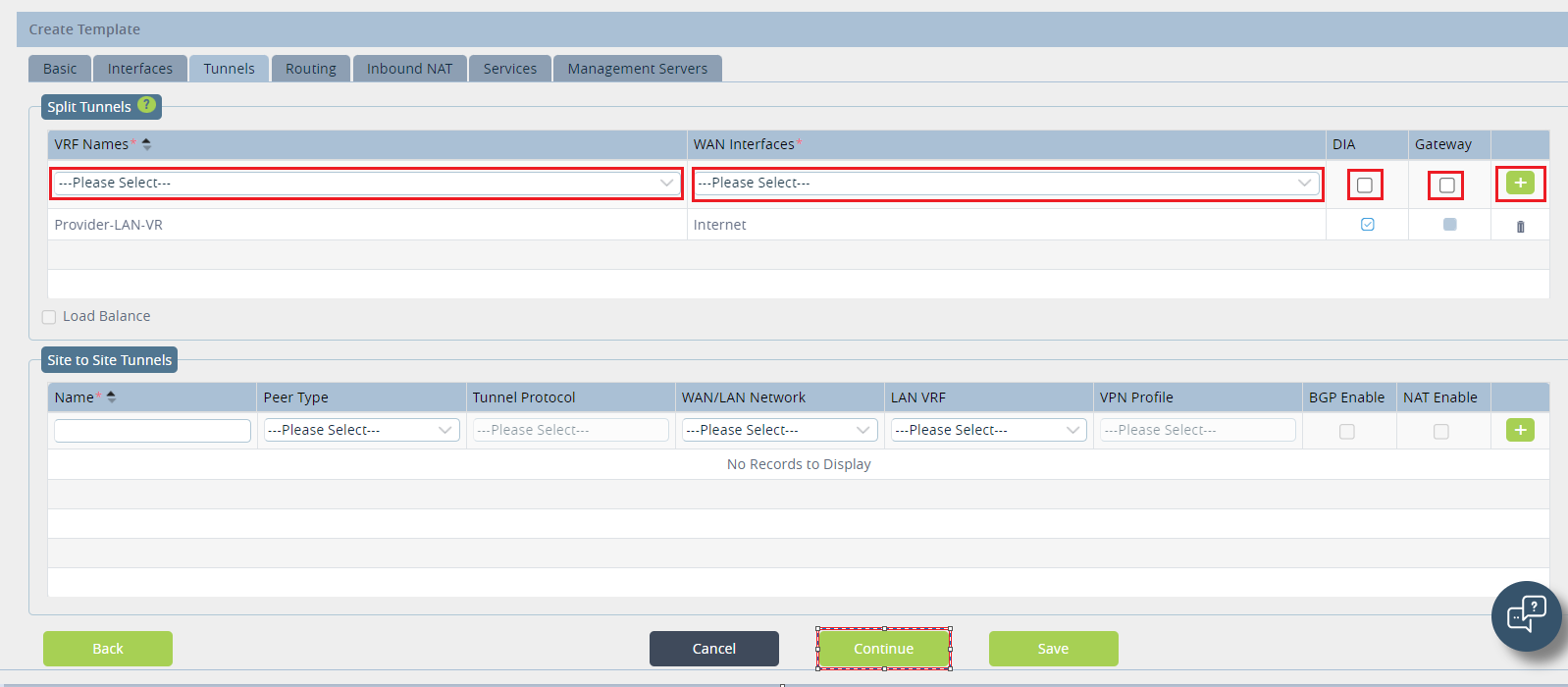

Navigate to Split Tunnels Tab, if you want to configure DIA (Direct Internet Access) on the device or make the device Gateway for Internet traffic for other Spoke Sites. (this is optional)

Select the VRF Names, Select the WAN interfaces, Click on + button.

Click on Continue.

Step 5:

You can configure following as per requirement (all are optional):

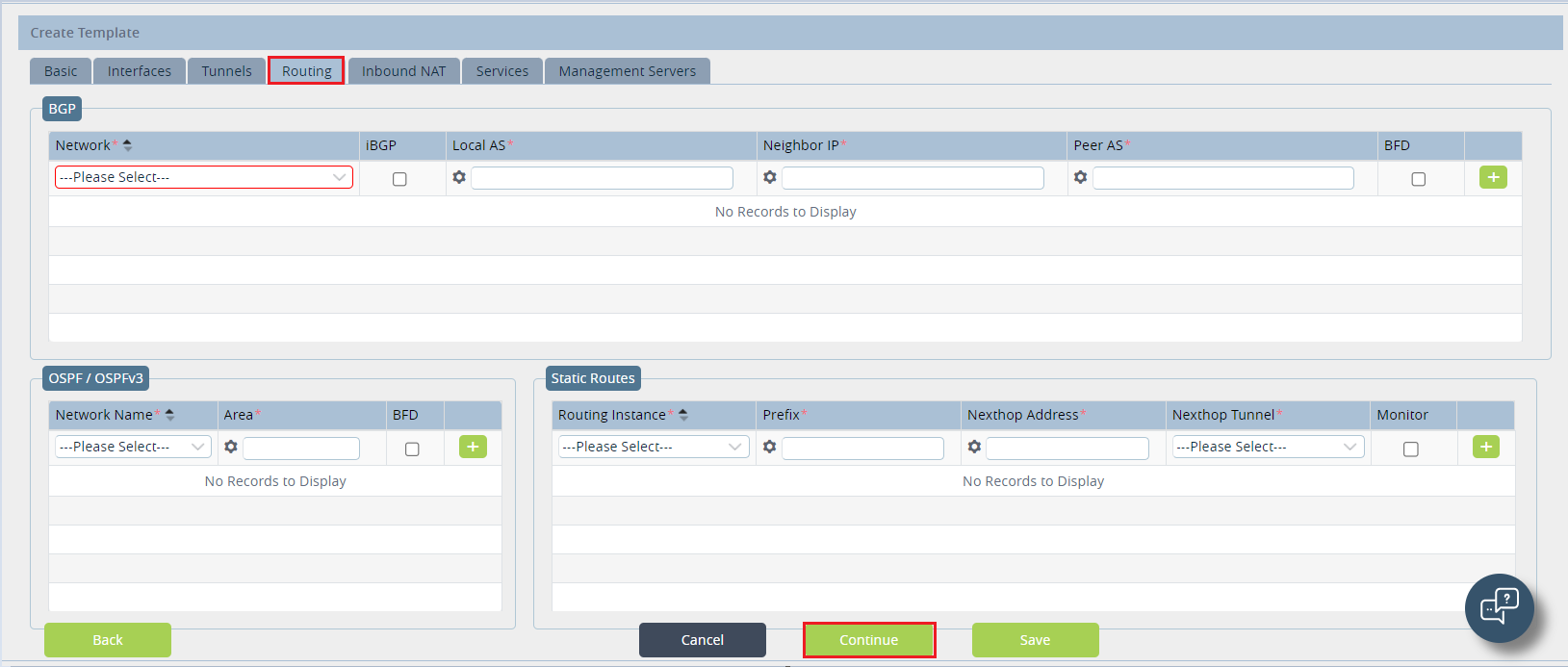

Routing (BGP/OSPF/Static),

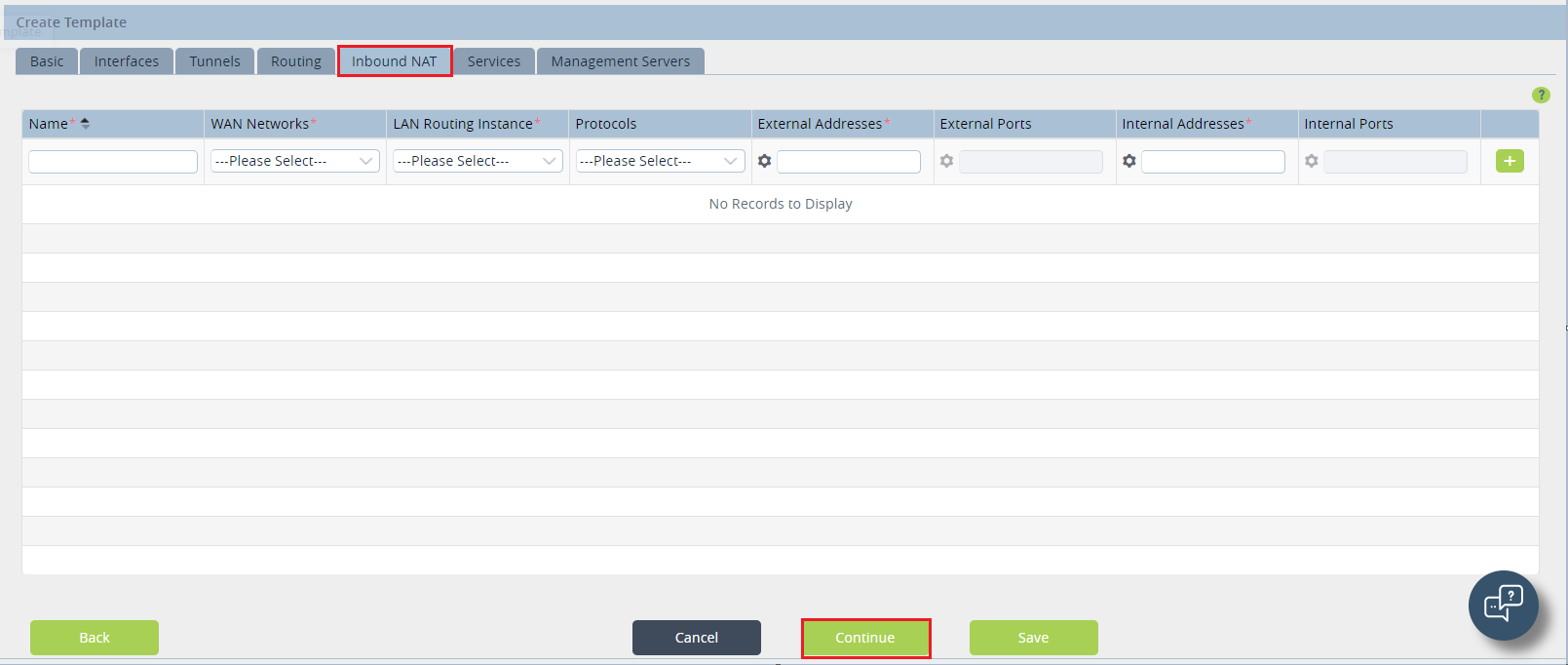

Inbound NAT (destination NAT)

DHCP (Server/Relay)

Enable Firewall Services (NGFW / Stateful Firewall)

Click on Continue.

Step 6:

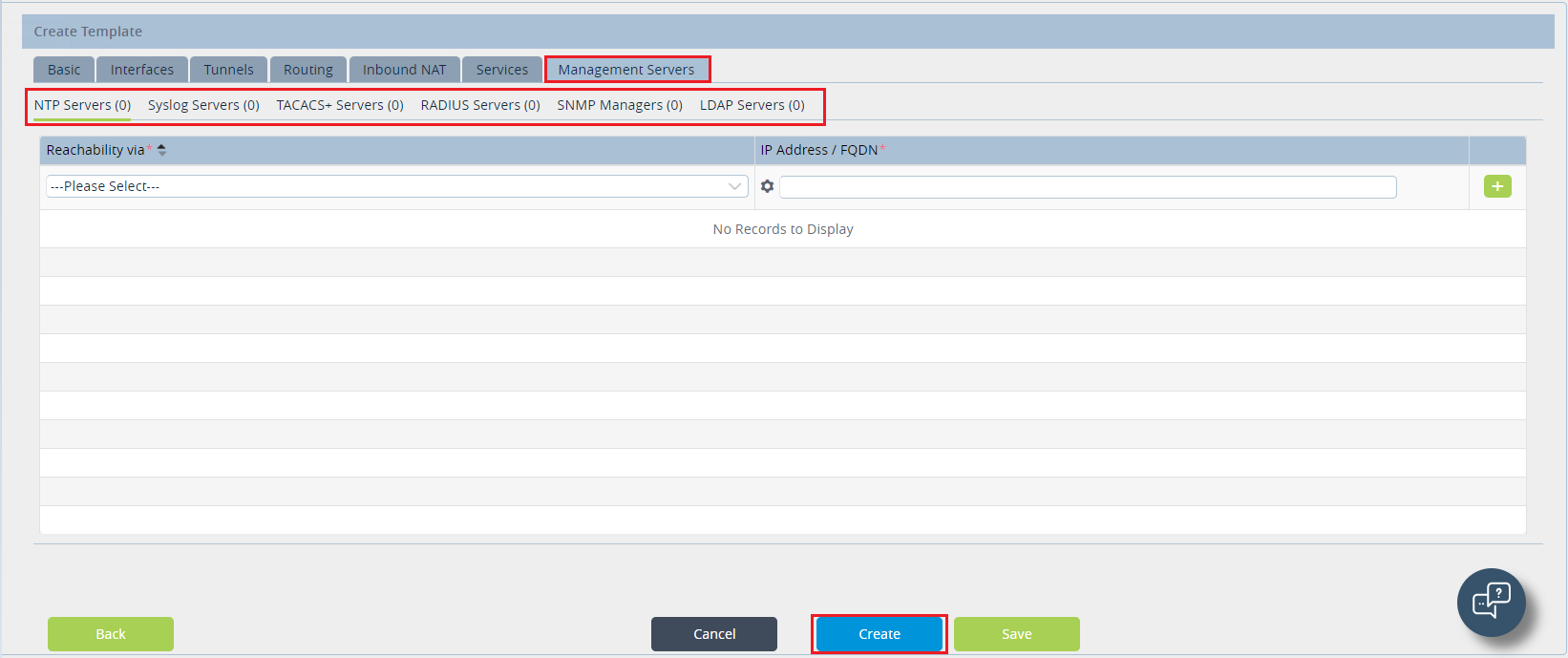

On Management Servers Tab, you can choose to configure NTP, Syslog, External Authentication and SNMP (all are optional)

Click on Create Button to finish the
