This article describes how to configure Analytics Cluster Connector in Versa Director.


Please refer to the reference deployment architecture here




Versa Director uses this connector information as an object and push it to FlexVNF.



FlexVNF uses this to establish a TCP connection to transport the logs and session info to Versa Analytics.



Prerequisite:

Versa Director is installed, and basic configuration is completed.



Step 1.

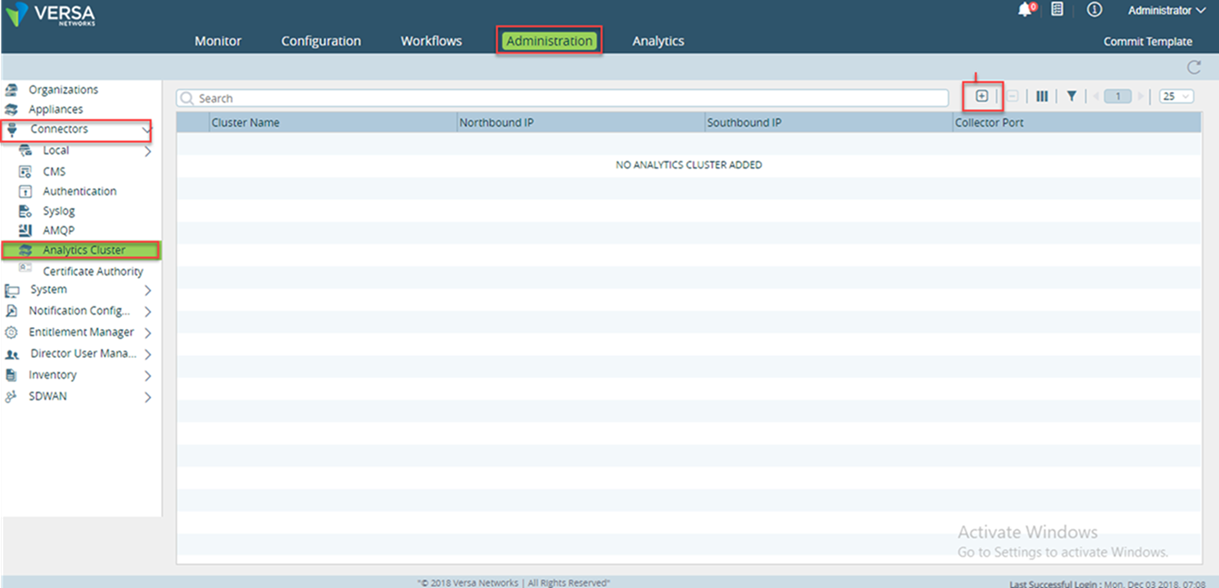

Navigate to Director->Administrator->Connectors->Analytics Cluster > Click on Add Button.










Step 2:

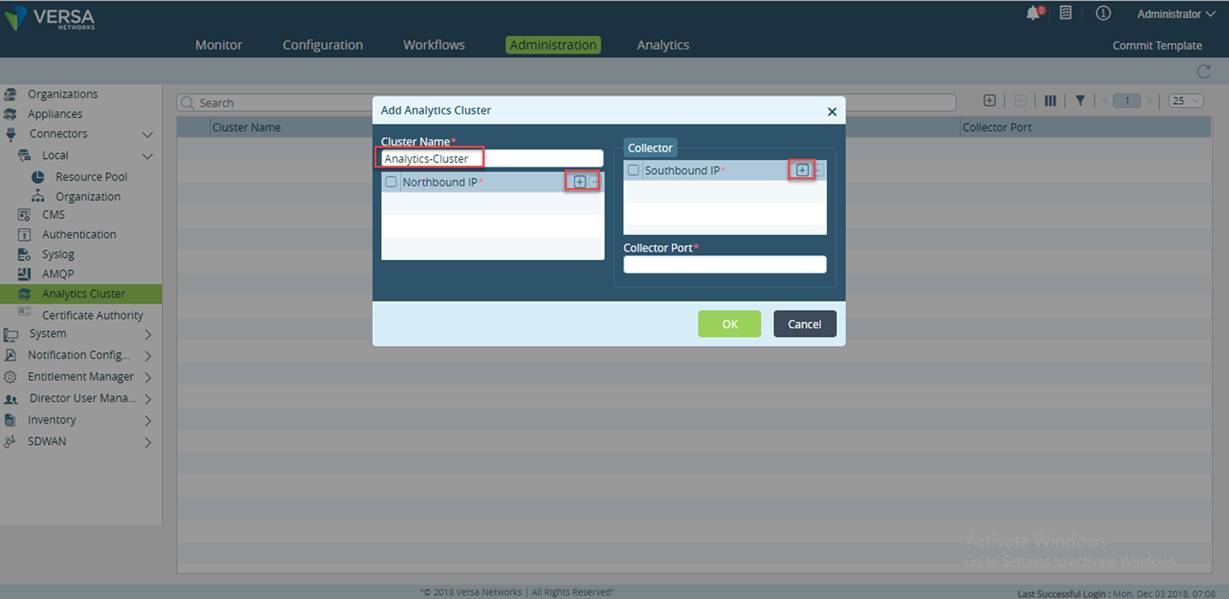

Enter the Analytic Cluster Name, Click on + Button.

10.192.78.172 : It is the Northbound IP address of Analytics (It is the  management IP of the Versa Analytics).

Login to the Versa Analytics via SSH to its Management IP.



Click on + Button.

172.16.1.2 : It is the southbound IP address of Analytics, which is connected towards the controller.







FlexVNF establishes TCP connection with the Collector IP and port mentioned in this configuration and sends the required logs and session information at real-time.

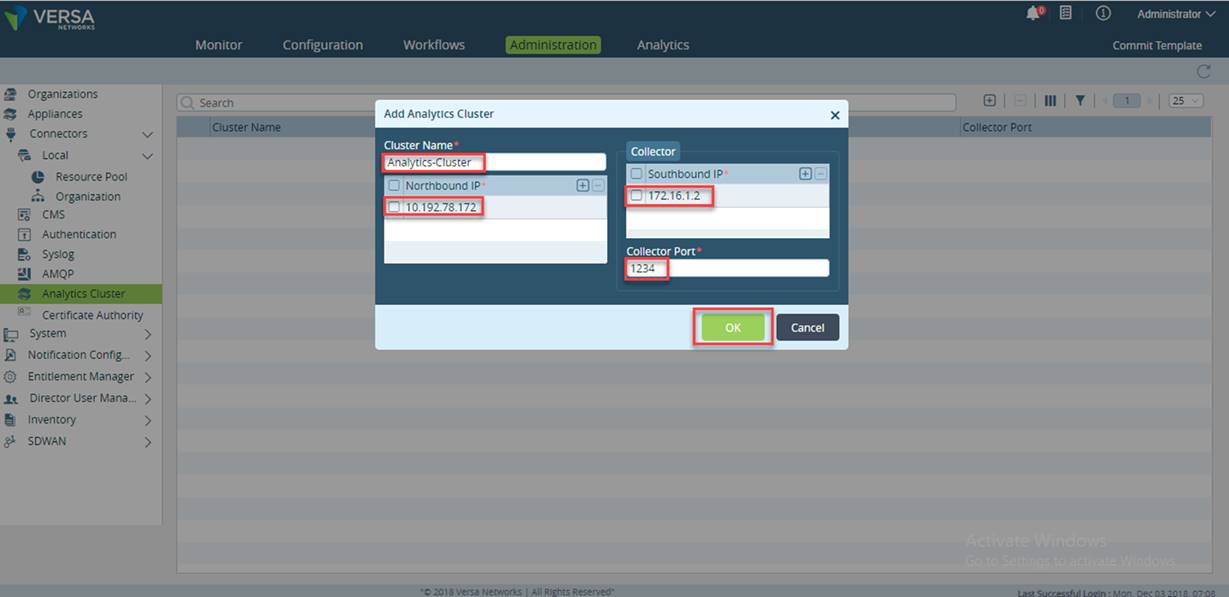

Enter these details and click OK to create Analytics Cluster Connector.

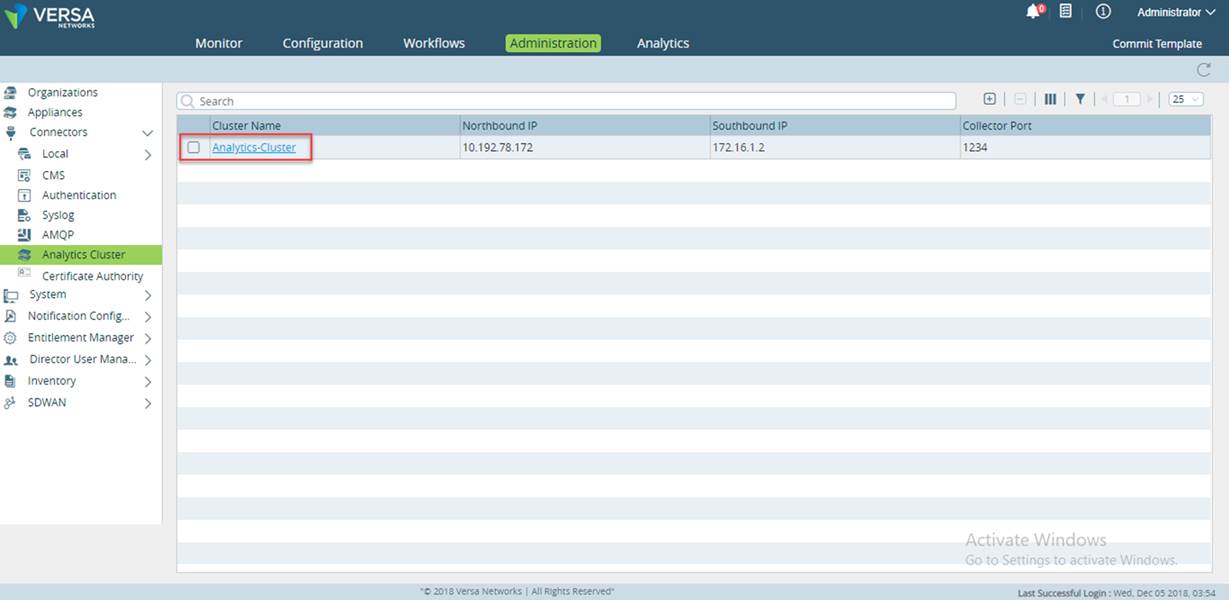

Now you will be able to see the Analytic Cluster Connector in Director. This Cluster Name is used by Versa Director in the templates to push the required configuration to FlexVNF.
