This article describes How to upgrade the Versa FlexVNF Controller using Director.


Prerequisite

The Versa FlexVNF Controller is already deployed on Versa Director


Configuration

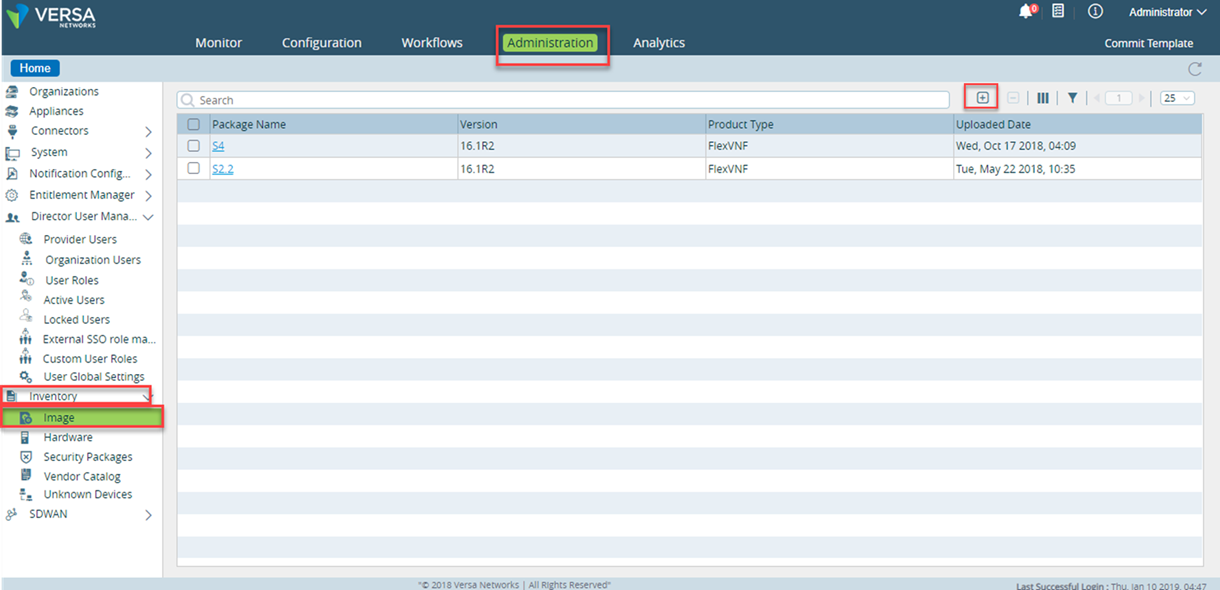

  1. In the director, navigate to Administration > Inventory > Image
  2. Click on + in the right-hand pane and window will popped up

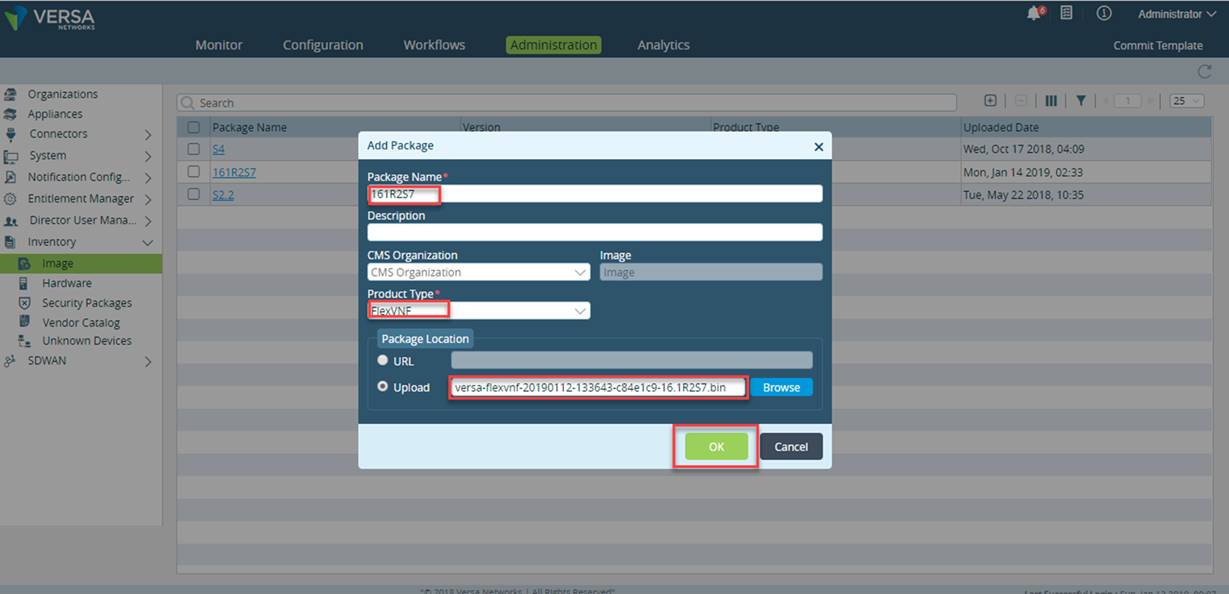

  1. Enter the Package Name, select the Product Type
    URL :    Specify the URL to download the build from
    Upload :  Browse and provide the build path
  2. Click the OK

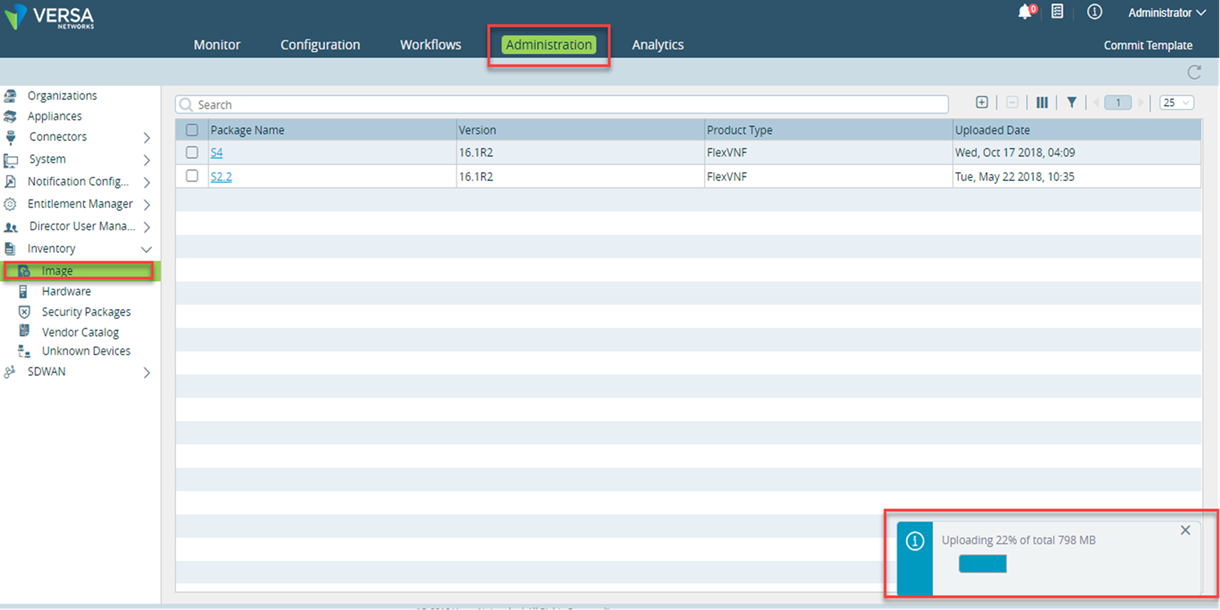

  1. Upload progress will be shown on the Versa Director GUI
  2. Once the file upload completes, File Upload Complete message appears on Versa Director GUI.

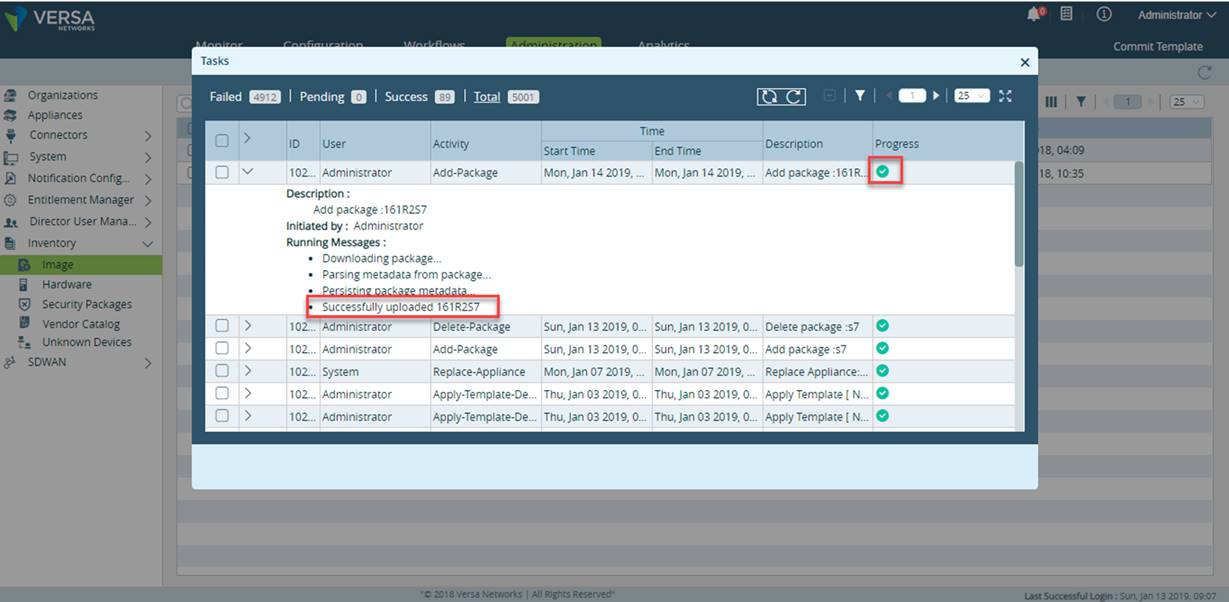

  1. Click on the Task menu on the top right side on the Screen and see the progress.






  1. You can view the uploaded package under Administration > Inventory > Image

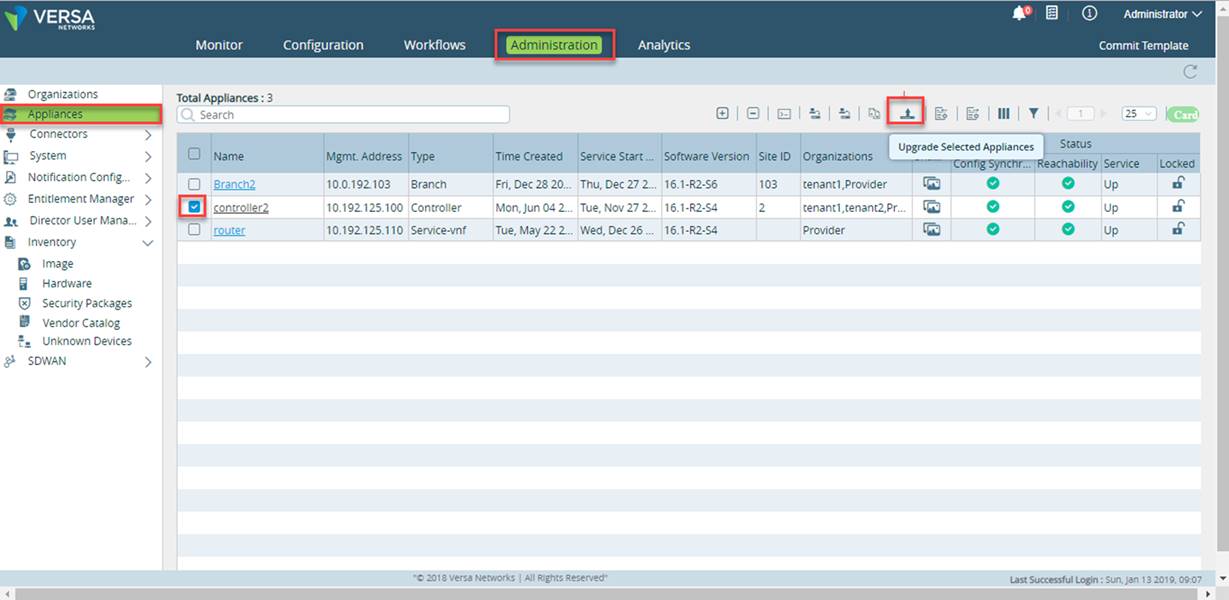

  1. In the Versa Director, navigate to Administration > Appliances and select the Versa SDWAN Controller for which upgrade needs to be performed
  2. Click on the highlighted Upgrade Selected Appliances option in the right hand pane

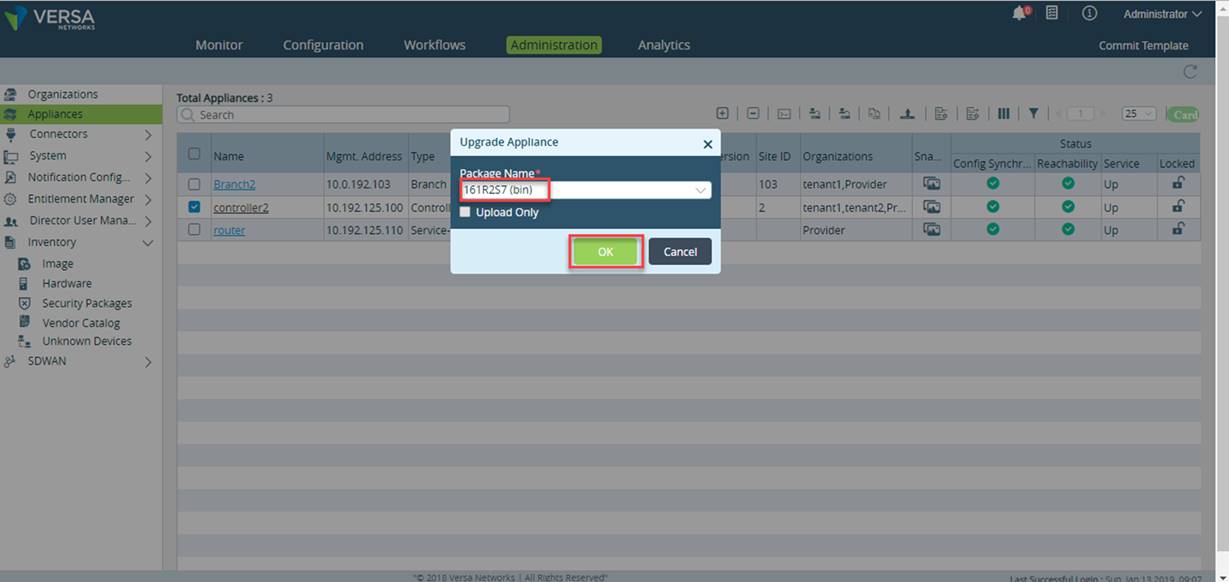

11. On the pop-up window select the Package Name from the drop down menu and click OK

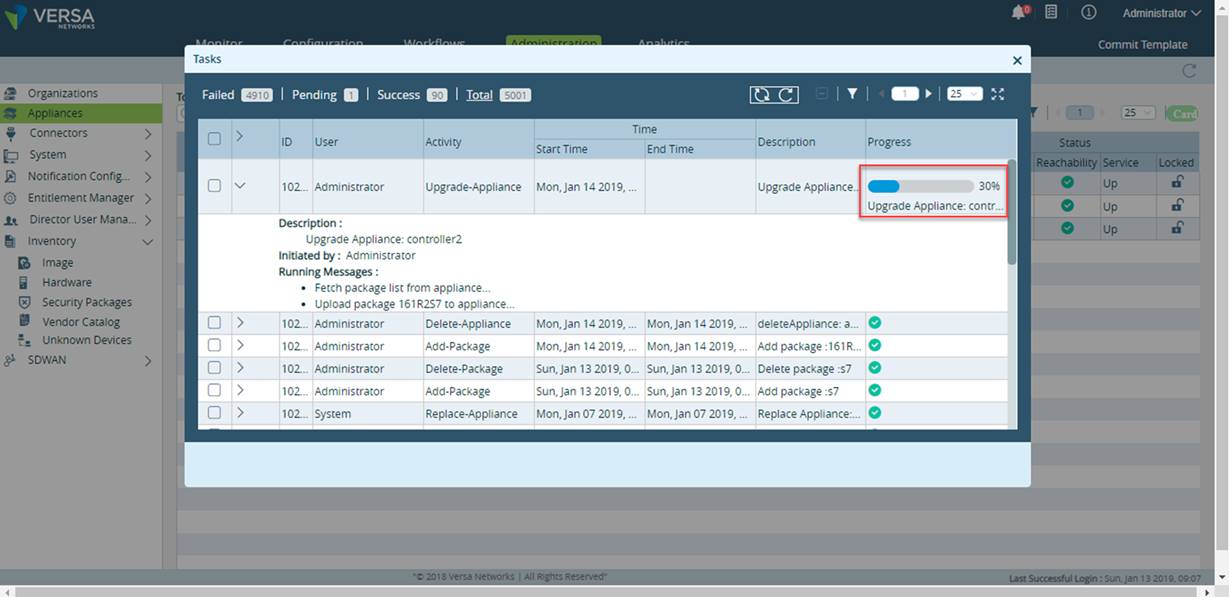

12. We can view the Progress in the Task Menu

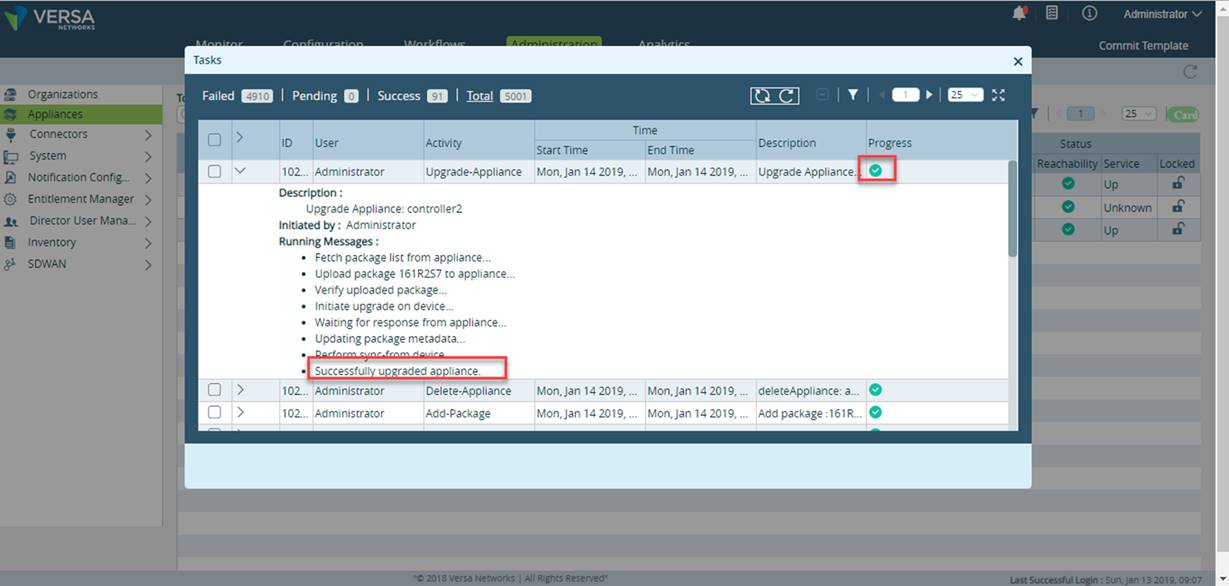

13. We can verify the upgrade status by looking in the task menu for Activity as Upgrade-Appliance
