This Article describes you how to Configure Virtual Router on Internet/MPLS Router for Internet Access.



We have to follow the below process for configuring and accessing Internet on



STEP:1 Configuration on Router:

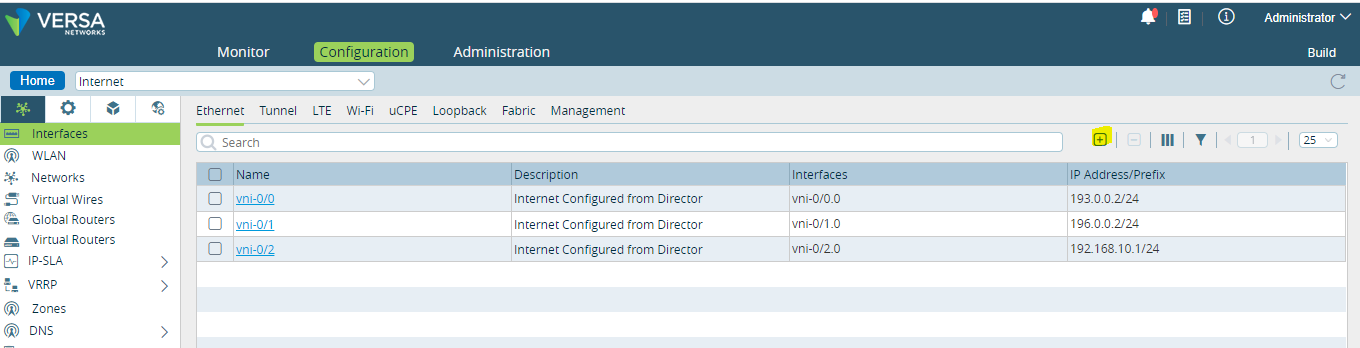

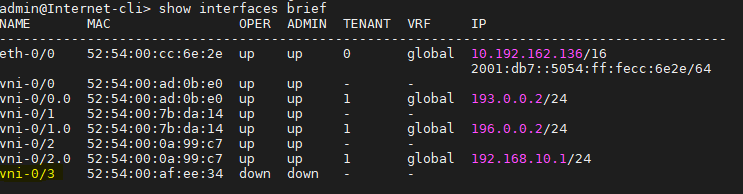

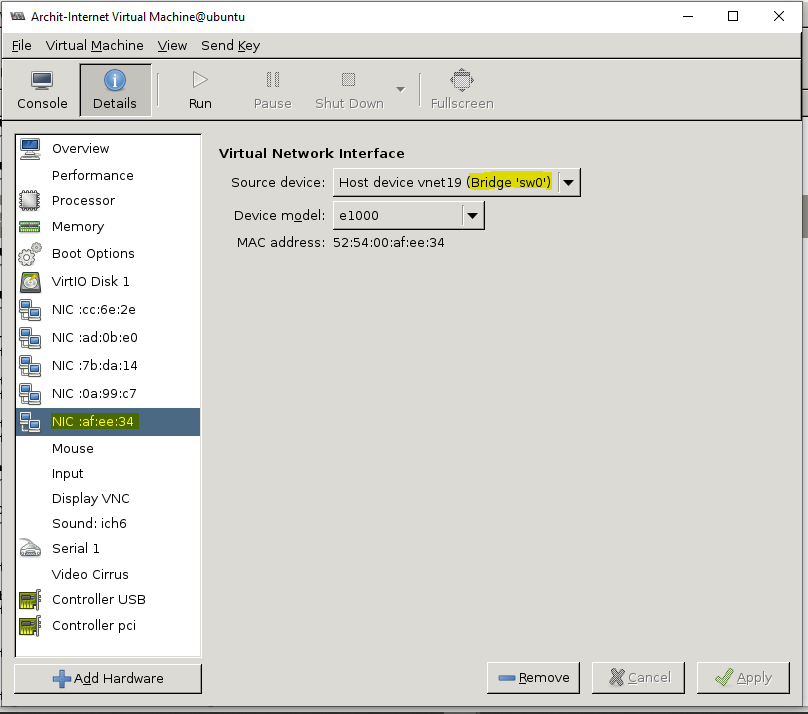

            Add one New interface on Intermediate Router which is connected to sw0.

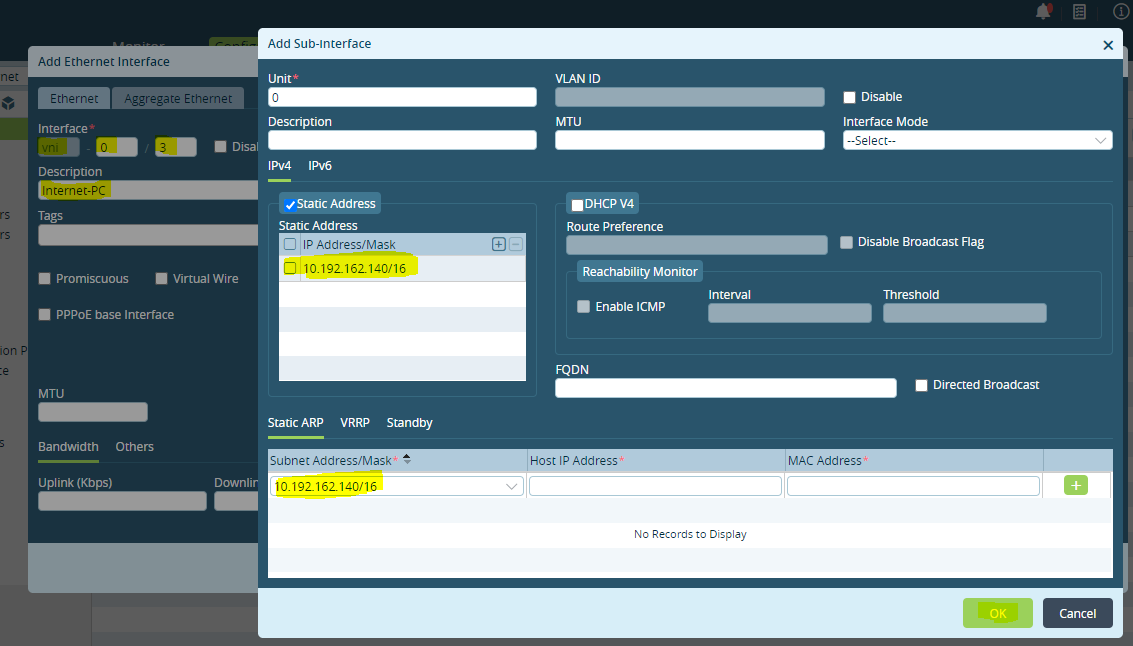

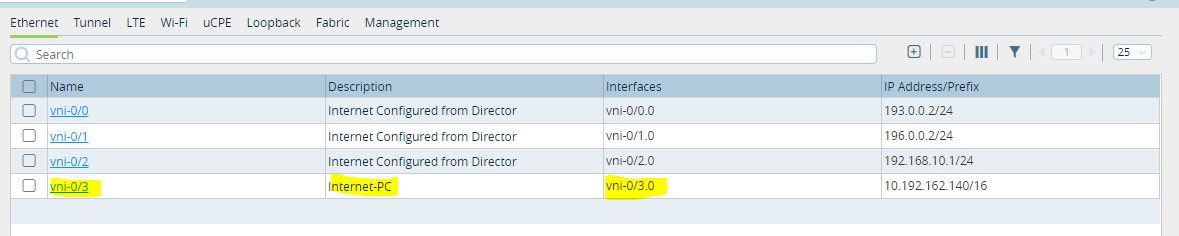

STEP:2 Add New Interface vni-0/3






10.192.162.140/16 : will be the Public IP.

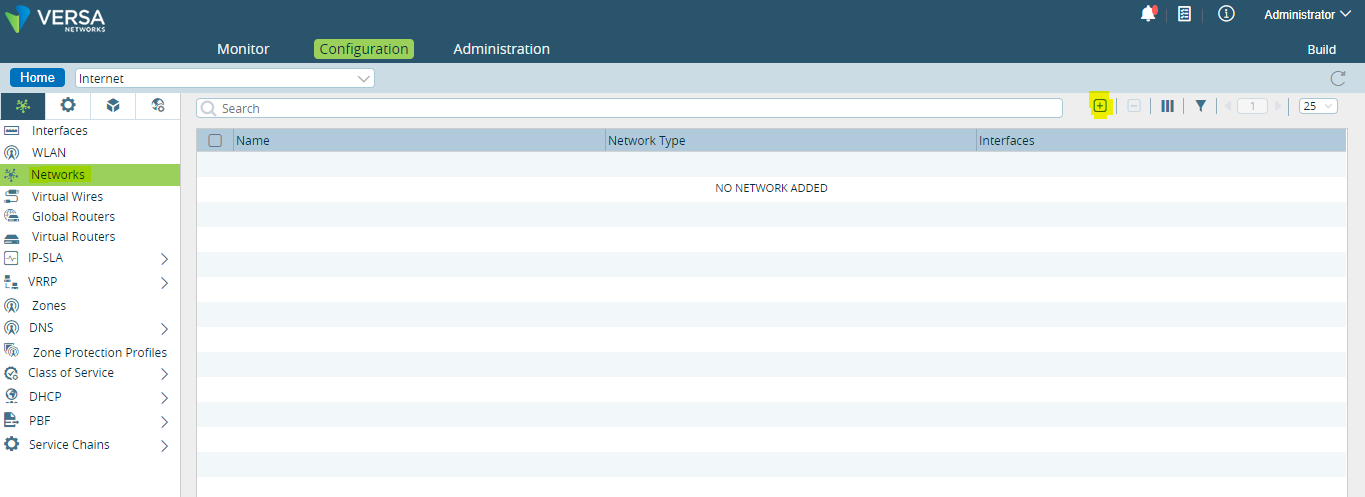

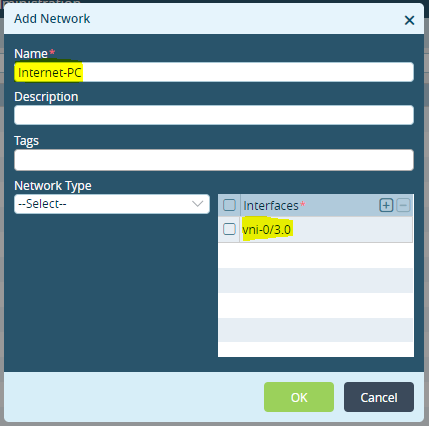

STEP: 3 Add Network with vni-0/3 interface.

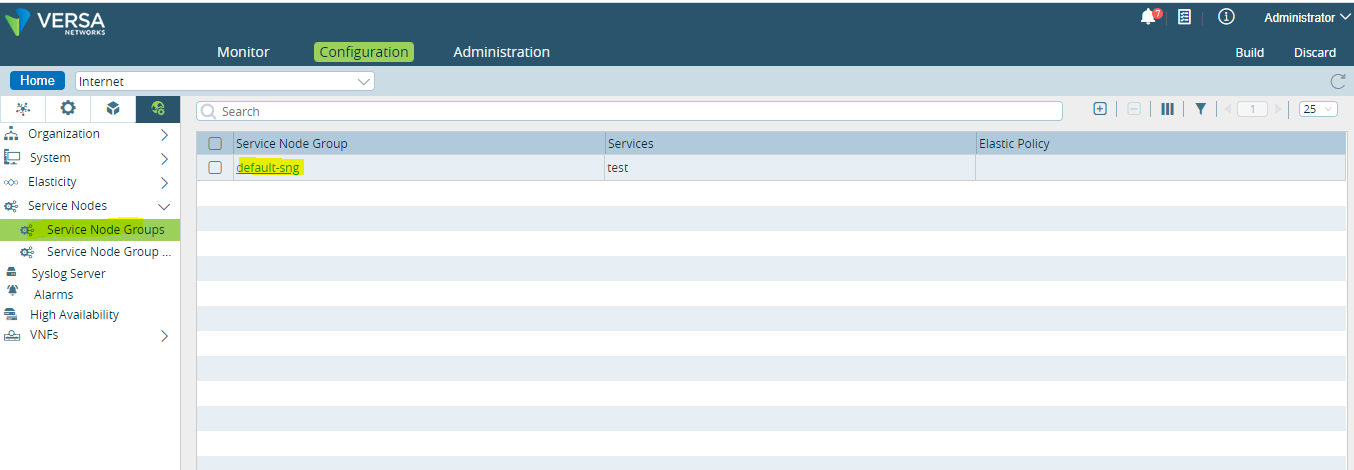

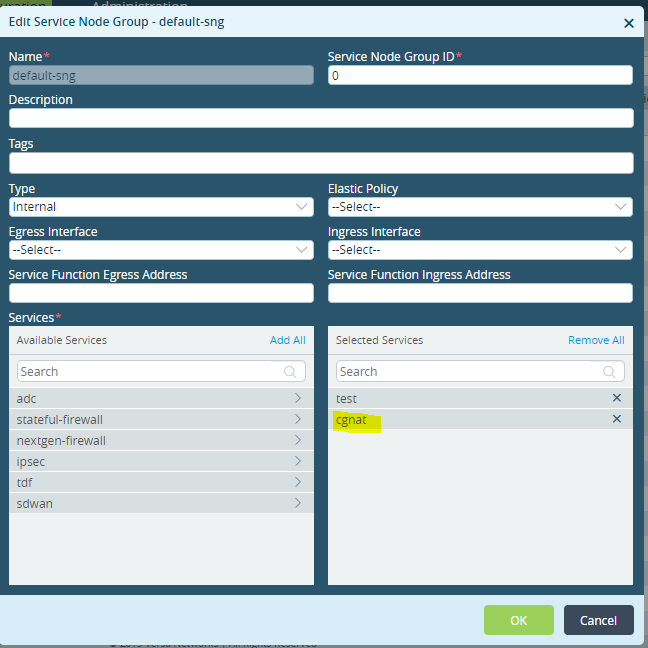

STEP: 4 Add cgnat services in default-sng.

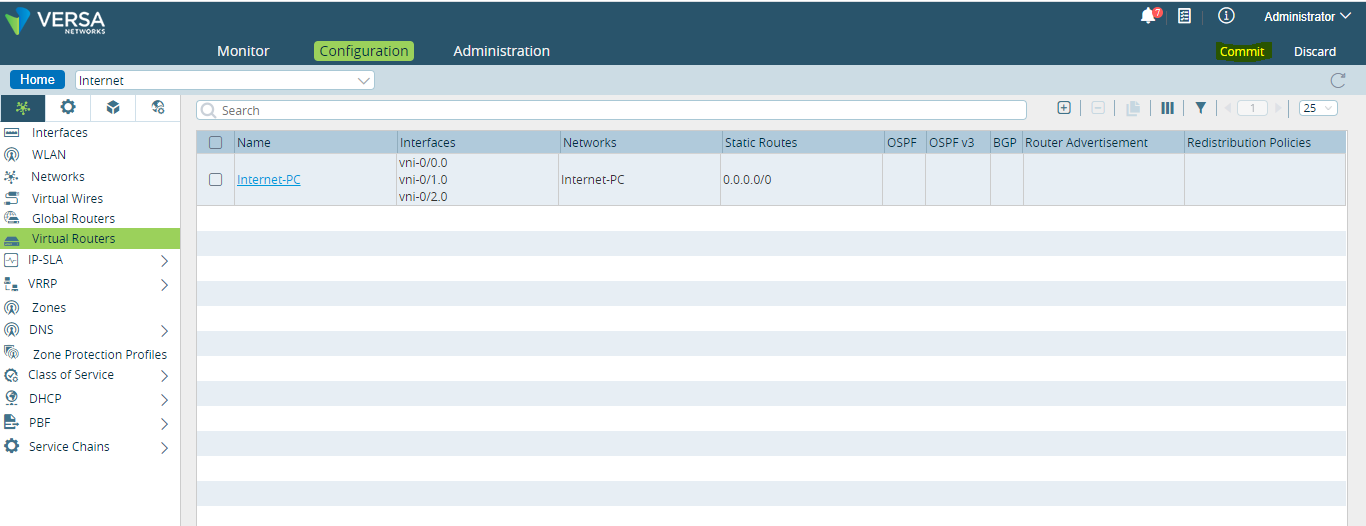

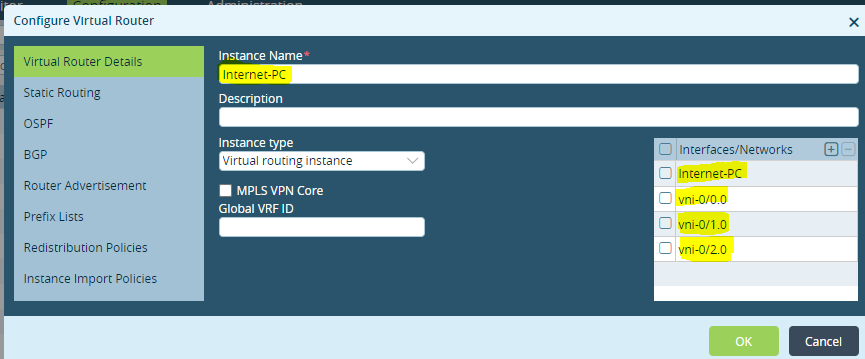

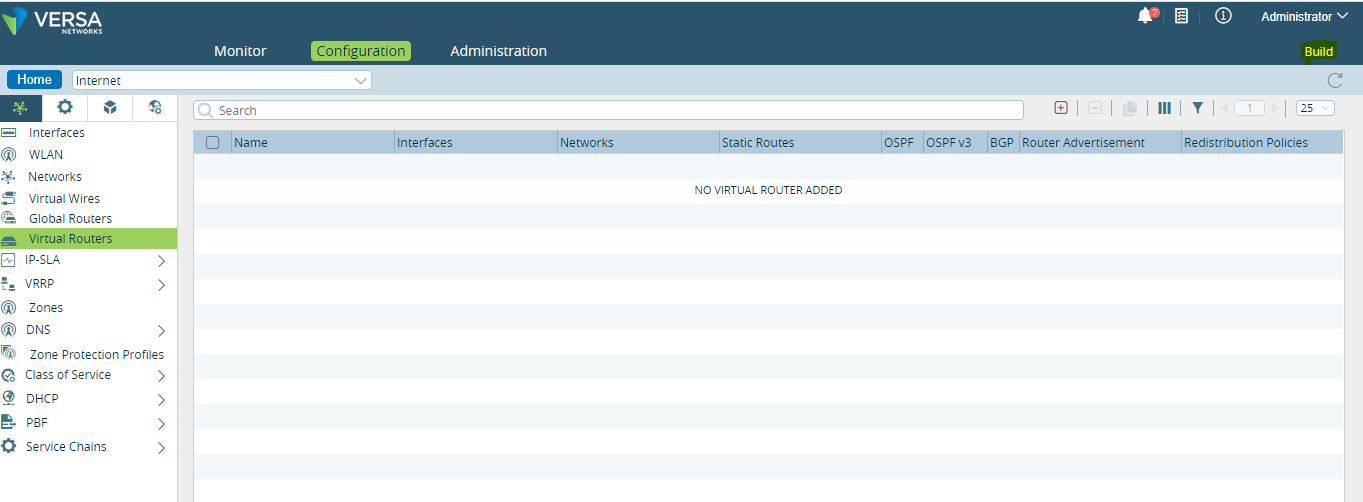

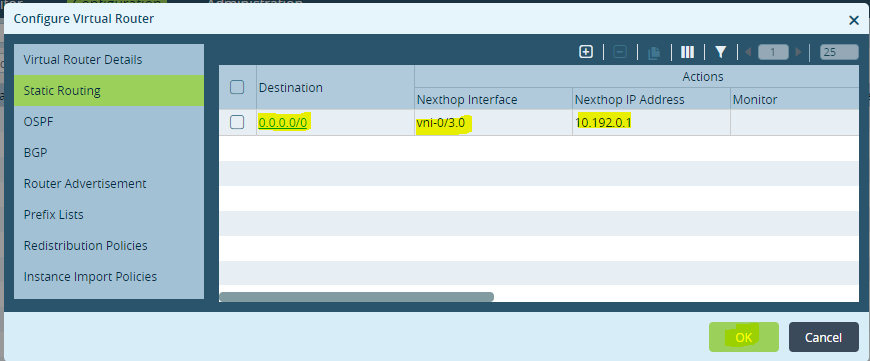

STEP: 5 Create a Virtual Router:

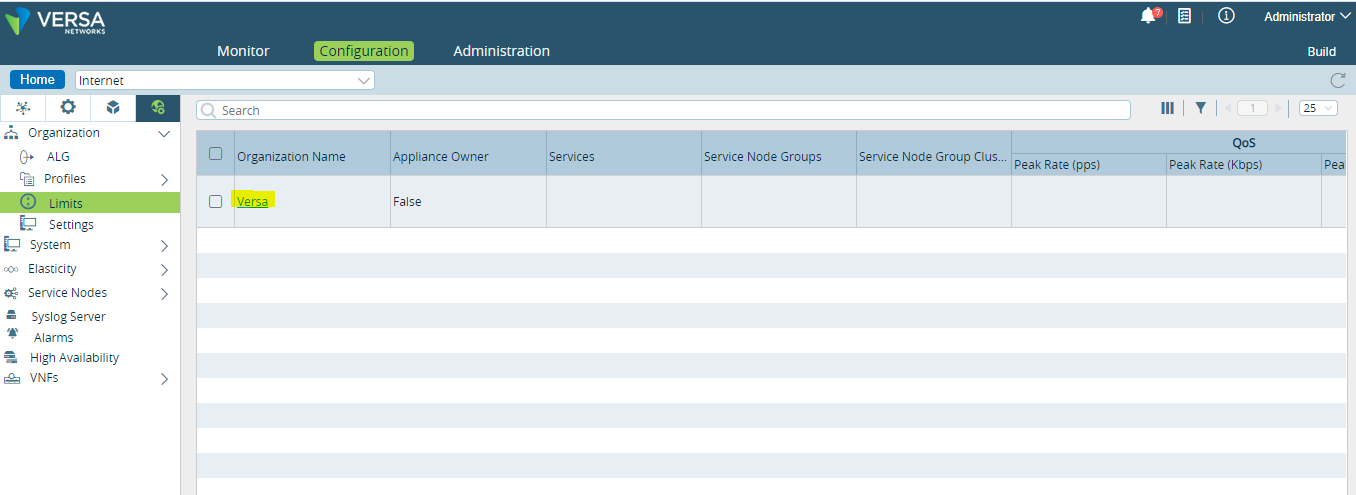

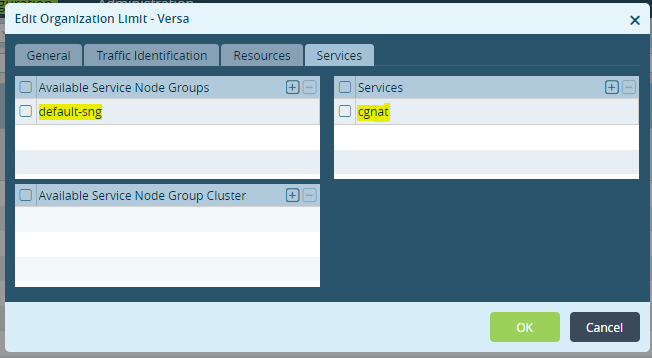

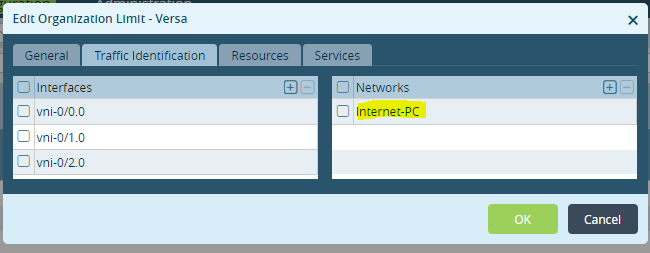

STEP: 6 Configure the Organization Limits under Configuration>Other>Organization>Limits.

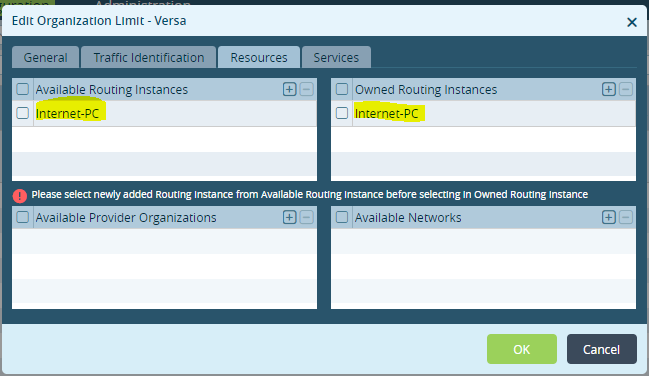

Click on the org name and add the Interface,networks,owned routing instance and avaialble routing instance and services.

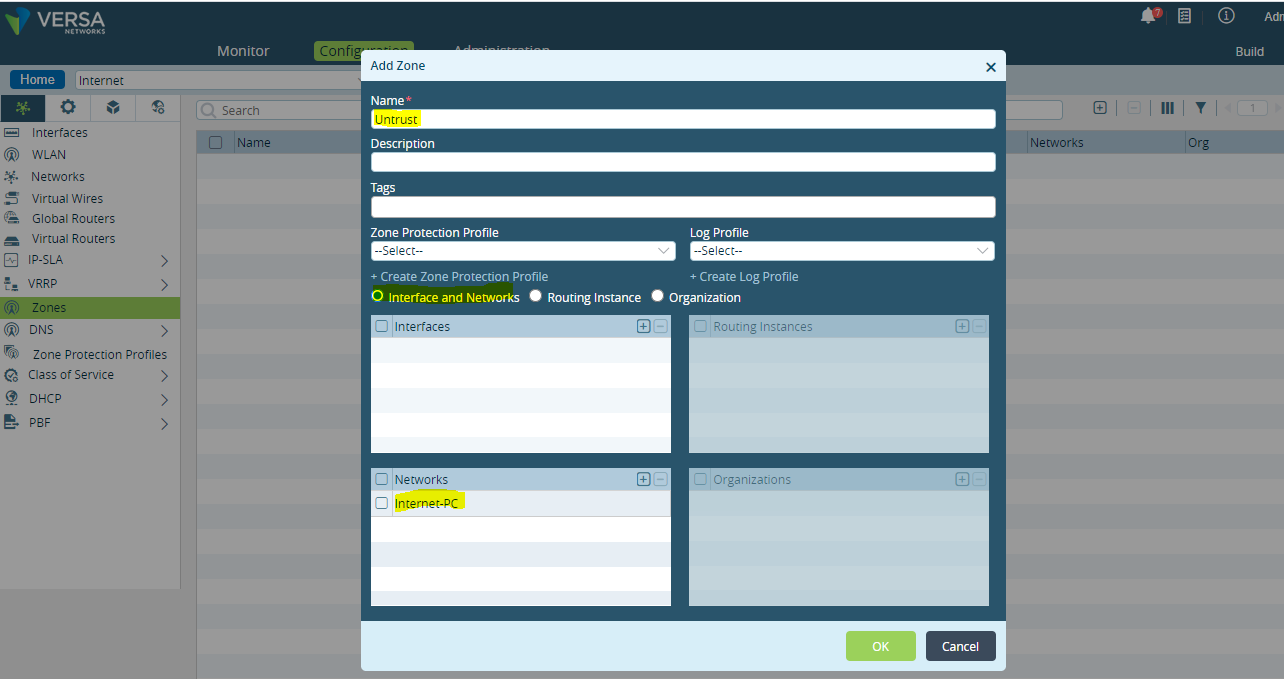

STEP:7 Create a zone and add the Network.

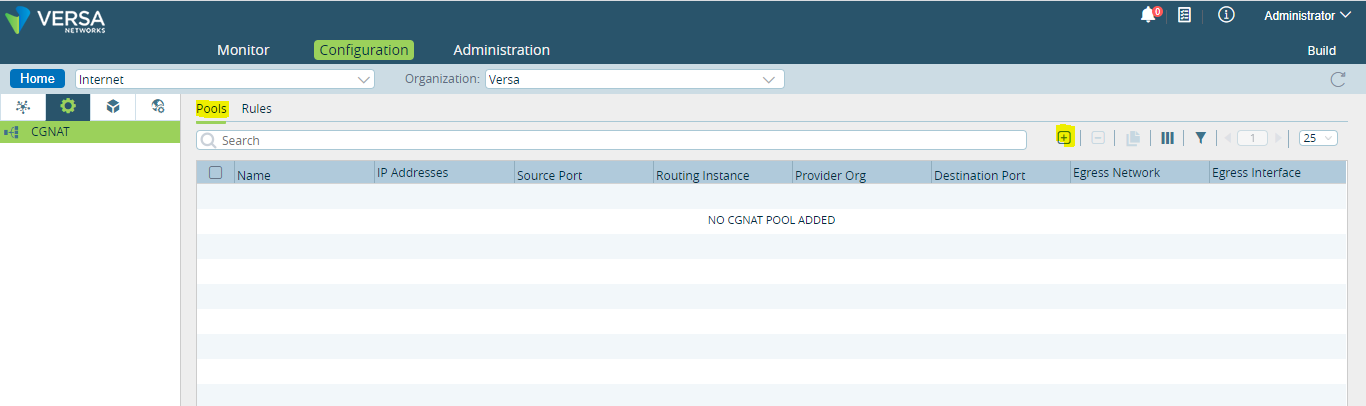

STEP: 8 Configuare CGNAT

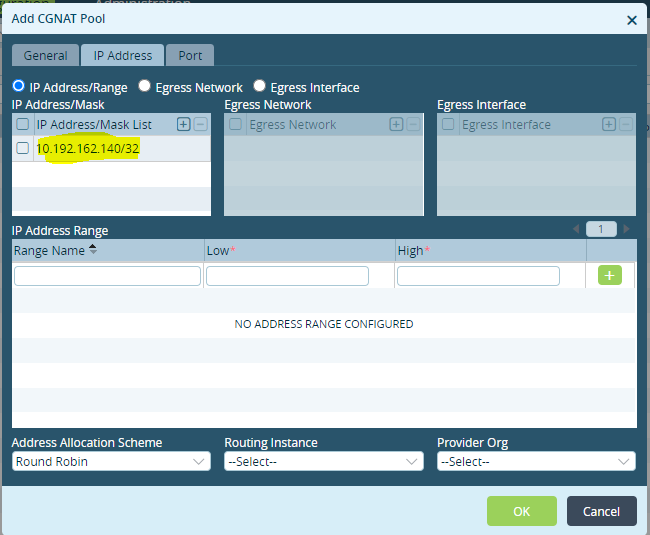

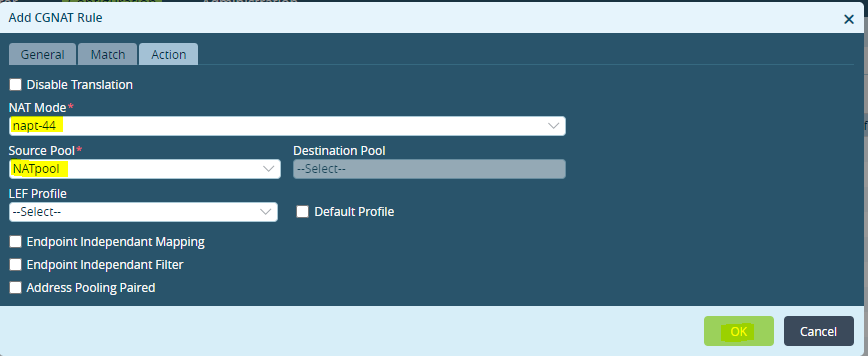

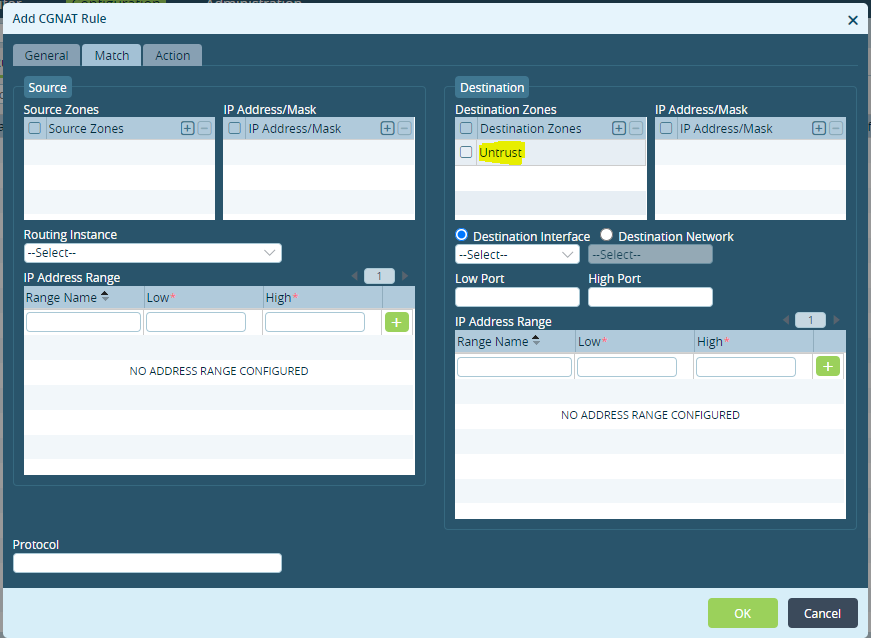

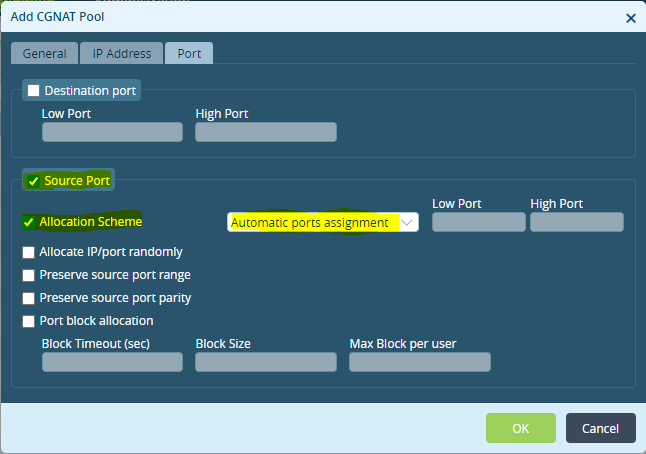

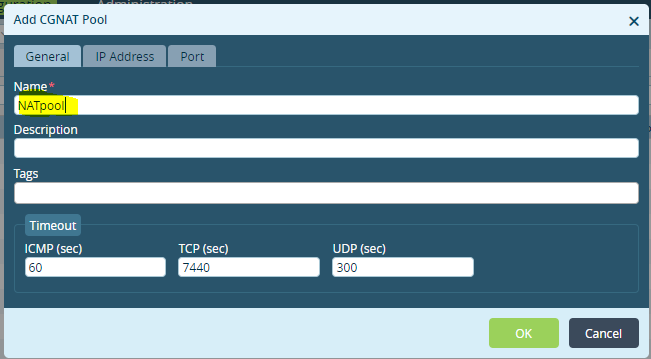

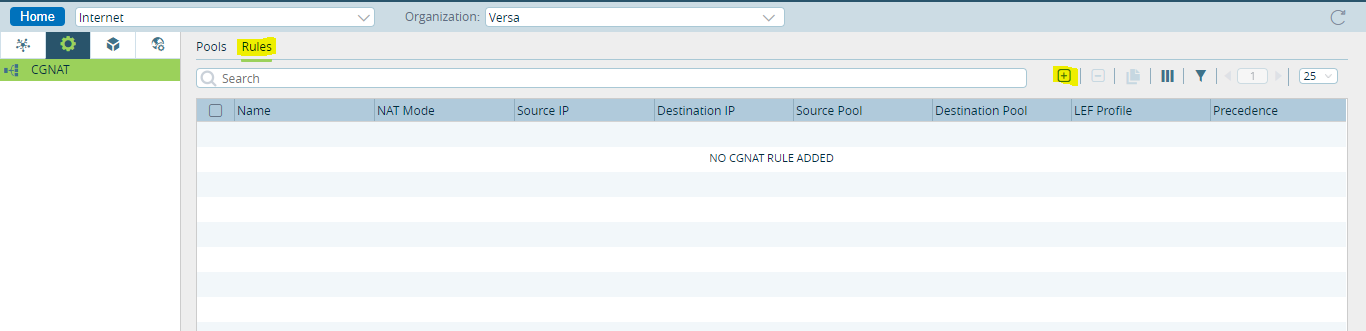

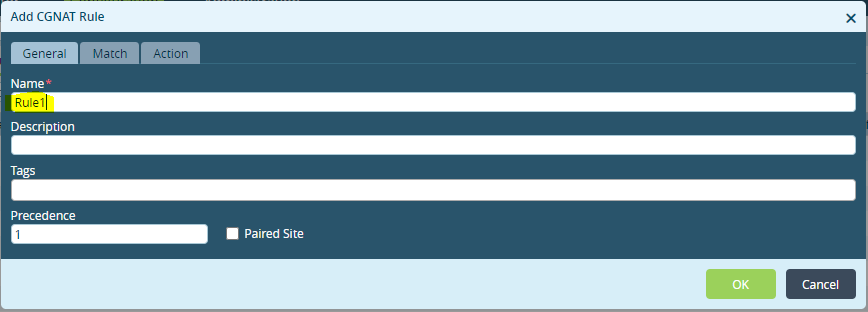

               Add a NAT pool and create a Rule










10.192.162.140: vni-0/3 Interface IP with CIDR 32.

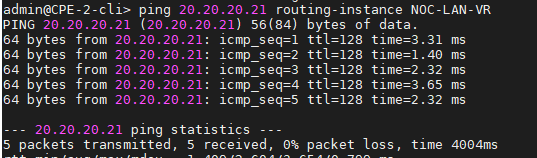

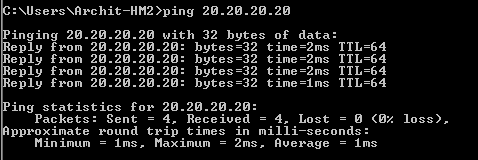

STEP:9  Check the Ping on PC and CPE (Connected towards PC via LAN-VR).


From CPE to PC -


From PC to CPE -
