This article explains the various menu options available during the ISO installation of VOS (Versa FlexVNF) on Versa CSG and certified Whitebox appliances using USB.


Different devices require different minimum VOS versions. Please refer to the VOS support matrix for CSGs and Whiteboxes

https://support.versa-networks.com/support/solutions/articles/23000022220-versa-csg-appliances-vos-support-matrix

https://support.versa-networks.com/support/solutions/articles/23000020643-versa-certified-whitebox-appliances-for-vos


Different devices have different display options (VGA/KVM/Serial), boot mode options, and methods for BIOS setup and boot order. Please select the installer menu item based on the device model and boot mode, as described below.


Note: The actual installer menu may have fewer items or more items depending on the VOS version/build. The below options are from VOS version 22.1.4+.



Boot Mode : Legacy : Installer Menu:

boot:

 versa versa-branch-usb versa-branch-dvd versa-silicom main menu expert rescue help

boot: versa-branch-usb

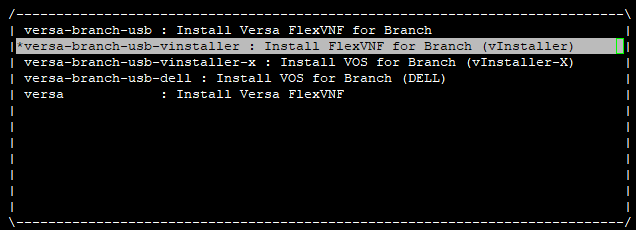

Boot Mode : UEFI : Installer Menu:


                             GNU GRUB  version 2.04


 /----------------------------------------------------------------------------\

 |*versa-branch-usb : Install Versa FlexVNF for Branch                        |

 | versa-branch-usb-vinstaller : Install FlexVNF for Branch (vInstaller)      |

 | versa-branch-usb-vinstaller-x : Install VOS for Branch (vInstaller-X)      |

 | versa-branch-usb-dell : Install VOS for Branch (DELL)                      |

 | versa            : Install Versa FlexVNF                                   |

 |                                                                            |

 |                                                                            |

 |                                                                            |

 |                                                                            |

 |                                                                            |

 |                                                                            |

 |                                                                            |

 \----------------------------------------------------------------------------/


      Use the ^ and v keys to select which entry is highlighted.

      Press enter to boot the selected OS, `e' to edit the commands

      before booting or `c' for a command-line. ESC to return previous

      menu.



VOS Installer Menu selection


The table below lists the appliance model numbers along with the corresponding boot mode and the installer menu item to be used during ISO installation.





Vendor : Versa Networks, Inc.
Vendor ModelInstaller Menu selectionBoot Mode (Default)Display
 (Serial/VGA)		VOS Installation guide
CSG700/700Rversa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000026862
CSG300versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000026863
CSG1300versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000026865
CSG1500versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000026866
CSG2500versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
CSG5000versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000026864
CSG150versa-branch-usb-vinstaller-x UEFI/GPTSerialhttps://support.versa-networks.com/a/solutions/articles/23000026867
CSG5200versa-branch-usbUEFI/GPTSerialhttps://support.versa-networks.com/a/solutions/articles/23000028043
CSX4300/4500versa-branch-usb-vinstallerUEFI/GPTSerialhttps://support.versa-networks.com/a/solutions/articles/23000028050
CSX8300/8500versa-branch-usb-vinstallerUEFI/GPTSerialhttps://support.versa-networks.com/a/solutions/articles/23000028051









Vendor : Dell
Vendor ModelInstaller Menu selectionBoot Mode (Default)Display
 (Serial/VGA)		Link to Versa Certified Appliance Guide
VEP14x5versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000028048
VEP1420versa-branch-usbUEFI/GPTSerialhttps://support.versa-networks.com/a/solutions/articles/23000028044
VEP-4600-V910/V930versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000016537
R7515-V2800versa-branch-usbUEFI/GPTSerialhttps://support.versa-networks.com/a/solutions/articles/23000028045
R7615-V2900versa-branch-usb-dellUEFI/GPTVGA/KVMhttps://support.versa-networks.com/a/solutions/articles/23000028046
XR5610-V950versa-branch-usbUEFI/GPTSerialhttps://support.versa-networks.com/a/solutions/articles/23000028047




Vendor : Advantech
Vendor ModelInstaller Menu selectionBoot Mode (Default)Display
 (Serial/VGA)		VOS Installation guide
FWA-1320, FWA-2320versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
FWA-1010VCversa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
FWA-AAL1010VCversa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
FWA-1012VC-4C/8Cversa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
FWA-3260versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
FWA-5020versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
FWA-5070versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
FWA-L5070versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
FWA-1112VCversa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849



Vendor : Lanner Electronics, Inc.
Vendor ModelInstaller Menu selectionBoot Mode (Default)Display
 (Serial/VGA)		VOS Installation guide
FW7525, FW7573versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
FW-7551SEB/SECversa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
FW7551SEDversa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
NCA-1515A/Bversa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
NCA-4010Y/Dversa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
NCA-5510versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
NCA-5520versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
LEC-6041versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849



Vendor : Caswell
Vendor ModelInstaller Menu selectionBoot Mode (Default)Display
 (Serial/VGA)		VOS Installation guide
CAN-0261versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
CAF-0262versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
CAD-0263versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849



Vendor : Silicom
Vendor ModelInstaller Menu selectionBoot Mode (Default)Display
 (Serial/VGA)		VOS Installation guide
80300-0095,
80500-0095, 80500-0147		versa-silicom,
versa-branch-usb		Legacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
80500-0163versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
90500-0151versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
80500-0214versa-branch-usbUEFI/GPTSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849



Vendor : Riverbed
Vendor ModelInstaller Menu selectionBoot Mode (Default)Display
 (Serial/VGA)		VOS Installation guide
SteelConnect EX-580versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
SteelConnect EX-780versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
SteelConnect EX-3080versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
SteelConnect EX-6080versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849
SteelConnect EX-385versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000026862
SteelConnect EX-485versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000026862
SteelConnect EX-685versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000026862



Vendor : Nexcom
Vendor ModelInstaller Menu selectionBoot Mode (Default)Display
 (Serial/VGA)		VOS Installation guide
DTA1152BC4versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849







Vendor : Commscope/Arris/Comcast
Vendor ModelInstaller Menu selectionBoot Mode (Default)Display
 (Serial/VGA)		VOS Installation guide
UC1000-088000versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000008849







Vendor : Datacom
Vendor ModelInstaller Menu selectionBoot Mode (Default)Display
 (Serial/VGA)		VOS Installation guide
DM8630versa-branch-usbLegacy/BIOSSerialhttps://support.versa-networks.com/a/solutions/articles/23000028049
