Question: How long does an SD-WAN Endpoint continue to work when the SD-WAN Controller goes down?
Solution:
The steps in this example help in understanding how the SD-WAN provides the endpoint availability when a Branch-CPE (S1) loses connection with an SD-WAN Controller:
- The Branch-CPE1 (S1) continues to forward the traffic based on the last route-table that it receives from the SD-WAN controllers before losing connection to all the SDWAN Controllers (up to four of them).
- The Branch-CPE1 (S1) continues to route using its internal-routers within the branch.
- The Branch-CPE (S1) stops receiving route updates, security association and other information, which is communicated using MP-BGP, after losing connection with all SD-WAN Controllers.
- Thus, when the Remote Branch-CPE2 (S2) changes its security association, the Branch-CPE1 (S1) that got disconnected from all the SDWAN Controllers cannot communicate with Remote Branch-CPE2 (S2).
NOTE: By default, each branch (S2) rotates its security-association (keys) every seven hours. - After eight hours, the routes which were learned from the SD-WAN Controller would expire.
- At that time, the Branch-CPE (S1) would route based on underlay-routing (MPLS or broadband), if it is configured to do so.
Versa uses IETF’s Graceful Restart (GRES) procedures to handle the failure of SD-WAN Controllers. Versa has extended this time to over 24 hours by adding a multiplier to the GRES which helps the Versa FlexVNF-Branch to retain routes which it has learned from the SD-WAN Controller for more than 24 hours.
Follow these steps to configure SD-WAN endpoint availability (based on the assumptions explained in the narration above):

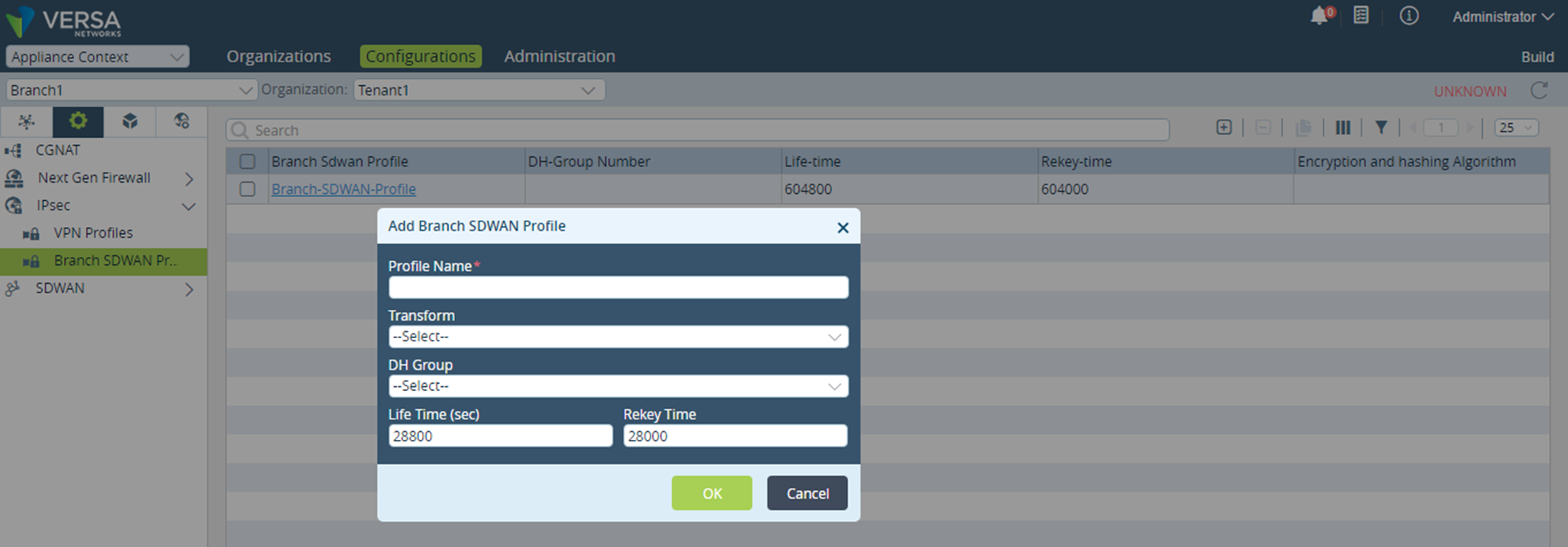

- Select Appliance Context > Configurations > Services > IPSec > Branch SDWAN Profile in the dashboard. Click on + to open the Add Branch SDWAN Profile window and create a branch SDWAN profile. Change the default values to increase the ipsec re-key and life-timer values.
NOTE: Configure ipsec re-key and life-timer values on all the branches for a full mesh deployment.

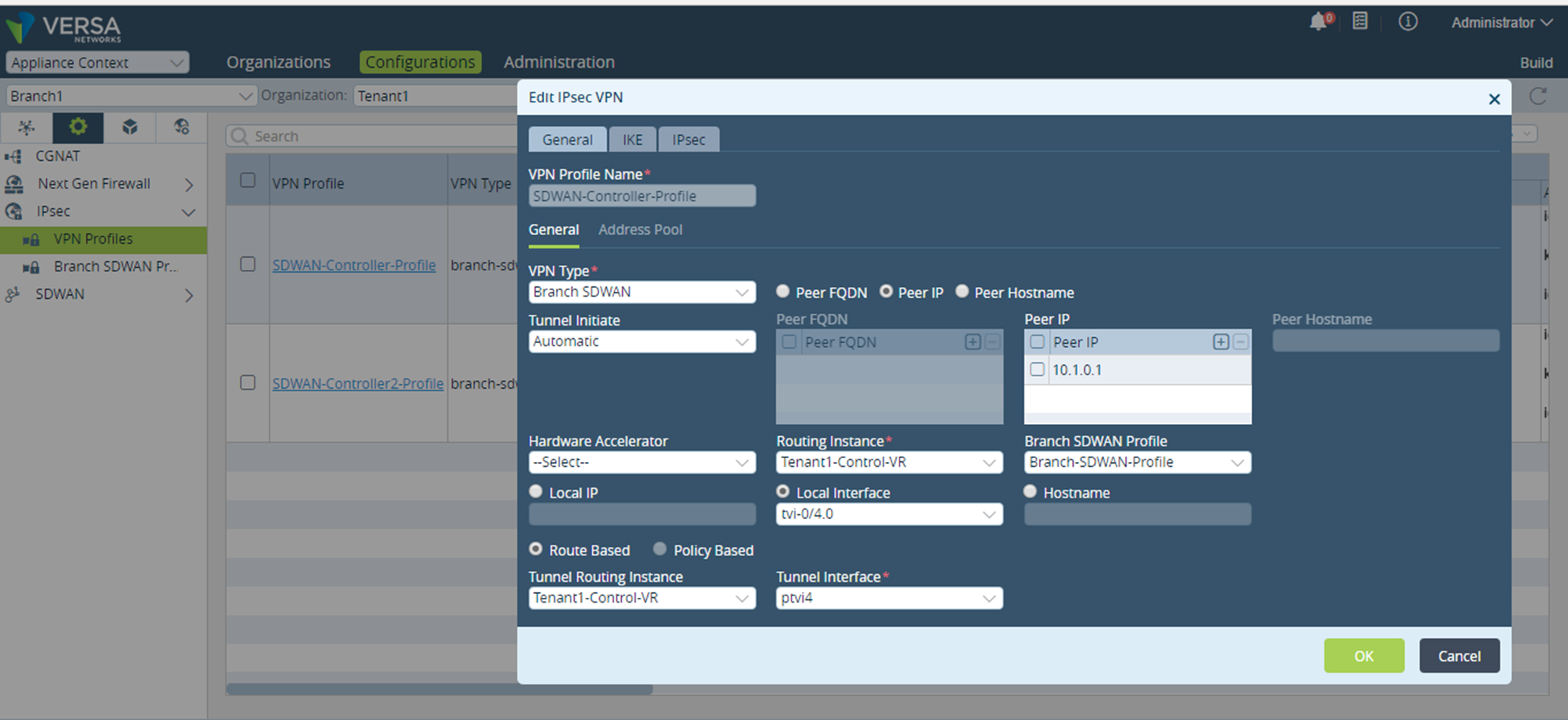

- Select Appliance Context > Configurations > Services > IPSec > VPN Profile and select a controller to which you have added the SD-WAN profile. Click on the controller to open the Edit IPSec VPN window.
- Check for the newly added Branch-2-Branch SD-WAN profile in the Branch SD-WAN Profile drop down box in the Edit IPSec VPN window
- Run the show orgs org-services Tenant1 ipsec vpn-profile SDWAN-Controller-Profile branch-2-branch security-associations brief CLI command to verify the updated timer values in the newly added SD-WAN profile.
admin@Branch1-cli> show orgs org-services Tenant1 ipsec vpn-profile SDWAN-Controller-Profile branch-2-branch security-associations brief Remote Gateway Transform Inbound SPI Bytes/sec Outbound SPI Bytes/sec Up Time Next Rekey Time --------------- --------- ----------- --------- ------------ --------- ------- --------------- 10.1.0.102 aes-gcm 0x50120066 0 0x50520065 0 26826 sec 577149 sec [ok][2017-08-18 07:29:58] admin@Branch1-cli>
- (OPTIONAL - only when the IPSec timer is not updated as per the configured value in step 4)
Run the vsh allow-cli command to enable modification (disable and enable the WAN link) using CLI.admin@branch1-cli> exit admin@branch1:/var/log$ vsh allow-cli Enter password: CMD_MAAPI is true [mtid = 0] CMD_MAAPI is true [mtid = 18610] CMD_MAAPI is true [mtid = 18610] CMD_MAAPI is true [mtid = 0]
- Run the set interfaces vni-0/0 enable false CLI command to disable the WAN link to flap the BGP neighbor-ship towards the controller.
dmin@branch1-cli(config)% set interfaces vni-0/0 enable false [ok][2017-08-22 01:47:07]
- Run the commit CLI command to save the changes.
admin@branch1-cli(config)% commit No modifications to commit. [ok][2017-08-22 01:47:09]
- Run the run show interfaces brief CLI command to view the status of the interface.
admin@branch1-cli(config)% run show interfaces brief vni-0/0.0 52:54:00:31:f9:71 down down 2 mpls1-Transport-VR 172.16.1.67/27 =====> vni-0/1 52:54:00:ab:e9:79 up up - -
- Run the set interfaces vni-0/0 enable true CLI command to enable the WAN link to flap the BGP neighbor-ship towards the controller to receive the new SA timers if the timer value does not change as configured.
admin@branch1-cli(config)% set interfaces vni-0/0 enable true [ok][2017-08-22 01:47:20]
- Run the commit CLI command to save the changes.
admin@branch1-cli(config)% commit Commit complete. [ok][2017-08-22 01:47:23]
- Run the run show interfaces brief CLI command to view the status of the interface.
admin@branch1-cli(config)% run show interfaces brief NAME MAC OPER ADMIN TENANT VRF IP ----------------------------------------------------------------------------------------- vni-0/0.0 52:54:00:31:f9:71 up up 2 mpls1-Transport-VR 172.16.1.67/27 [ok][2017-08-22 01:47:27]
- Run the set interfaces vni-0/0 enable false CLI command to disable the WAN link to flap the BGP neighbor-ship towards the controller.
- Increase the GRES timer values to maximum and multiplier values according to the needs. The maximum possible value configurable is 255.
NOTE: Multiplier support is available from 1Release 16.1 S2 onwards.
- Run the show configuration routing-instances Tenant1-Control-VR protocols bgp graceful-restart | display set CLI command to view a list of set commands required to configure graceful timer.
admin@Branch1-cli> show configuration routing-instances Tenant1-Control-VR protocols bgp graceful-restart | display set set routing-instances Tenant1-Control-VR protocols bgp 2 graceful-restart enable set routing-instances Tenant1-Control-VR protocols bgp 2 graceful-restart maximum-restart-time 3600 set routing-instances Tenant1-Control-VR protocols bgp 2 graceful-restart recovery-time 3600 set routing-instances Tenant1-Control-VR protocols bgp 2 graceful-restart select-defer-time 3600 set routing-instances Tenant1-Control-VR protocols bgp 2 graceful-restart stalepath-time 3600 set routing-instances Tenant1-Control-VR protocols bgp 2 graceful-restart multiplier 72
- Run the show configuration routing-instances Tenant1-Control-VR protocols bgp graceful-restart | display set CLI command to view a list of set commands required to configure graceful timer.
- Run the show configuration routing-instances Tenant1-Control-VR protocols bgp graceful-restart CLI command to view the final configuration.
admin@Branch1-cli> show configuration routing-instances Tenant1-Control-VR protocols bgp graceful-restart 2 { graceful-restart { enable; maximum-restart-time 3600; recovery-time 3600; select-defer-time 3600; stalepath-time 3600; multiplier 72; ====================> It configures the availability to 72 Hours(72x 1 hour) } }
