In 22.1.x the Analytics will display overall memory consumption using the values from the output of "show system detail" (branch would send these values in the logs towards analytics)

Analytics: Analytics system will show the overall system Memory and CPU % will be from load-stat

Load-stats is only a reflection of the load on the data processing (vsmd).

The same is true for memory– it is a reflection of the increase in the VSMD’s used memory. The load value is in percentage.

Director: show system details will show the overall system Memory (TotalMemory - Available Memory =X / Total *100 = Y%) and CPU % will be from load-stat



Sample Outputs:

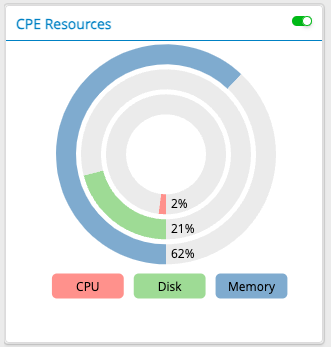

Director:

admin@Branch-01-cli> show system details



 Software Details

   Software Release    21.2.3

   Package name        versa-flexvnf-20230413-100510-18f21b3-21.2.3



 Hardware Details

   Hypervisor Type     kvm

   Manufacturer        QEMU

   SKU Number          Not Specified

   Model               Standard PC (i440FX + PIIX, 1996)

   Serial number       Branch-01

   Hardware ID number  Not Specified

   CPU model           pc-i440fx-bionic

   Number of CPUs      3

   Number of NICs      5

   Memory              7.80GiB

   Disk size           69.85GiB

   Free NICs           0

   Free memory         2.95GiB  (~62-66% Utilized)

   Free disk           54.95GiB

   SSD present         no

   uCPE Platform       no

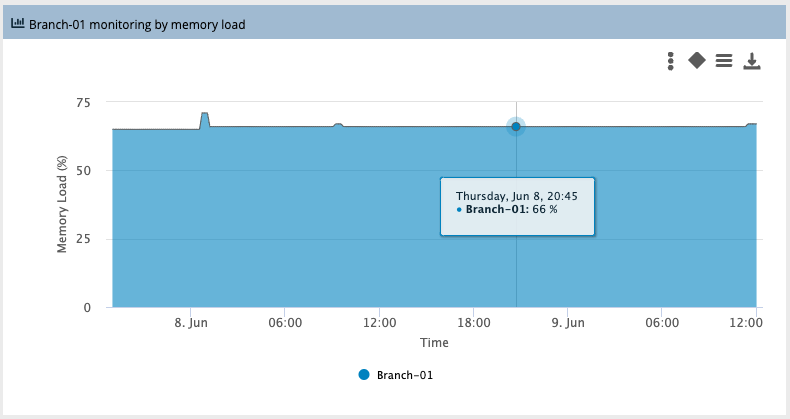

Analytics:

admin@Branch-01-cli> show system load-stats

VSN   CPU   MEM   LOAD

ID   LOAD  LOAD  FACTOR

-------------------------

0    2     33    2
