This article describes how to configure SDWAN gateway to connect sites in SDWAN to sites in Non-SDWAN.
Prerequisite
- Versa Headend should be deployed and functional
- Hub act as the Gateway to reach all Non-SDWAN sites.
- There is Underlay reachability from SDWAN device to Non-SDWAN device.
Please Note This article describes only the configuration on Versa FlexVNF using Workflow.

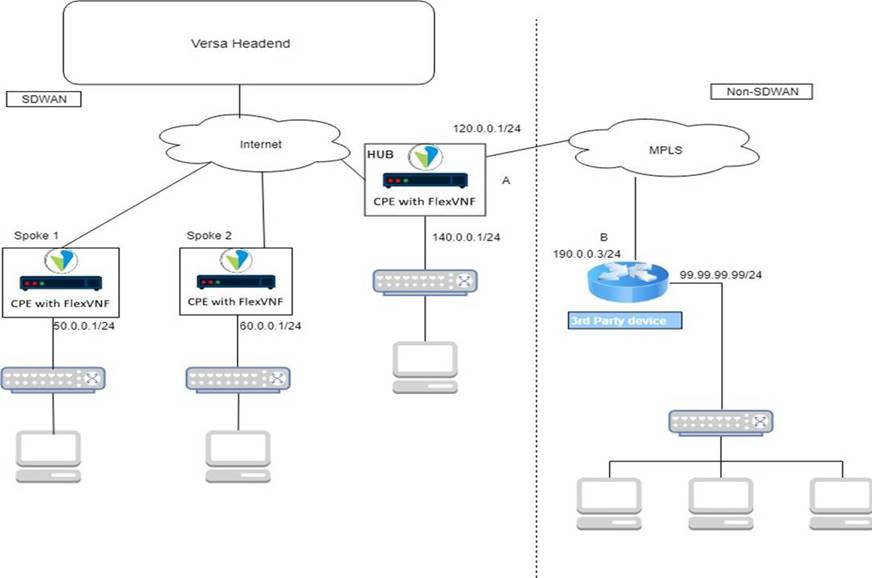

Topology
Configuration
IPsec-Configuration

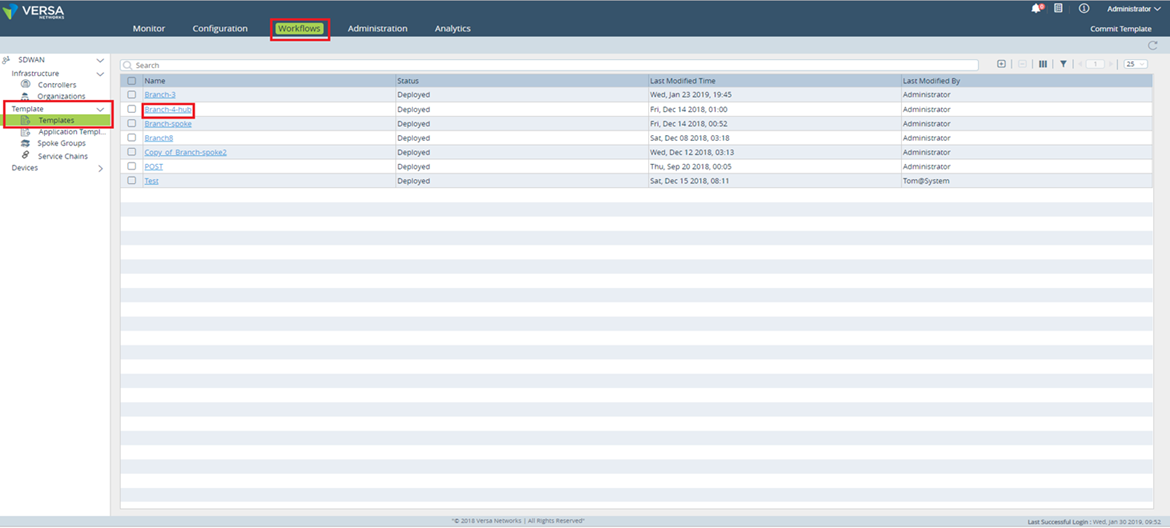

1. Login to the Versa Director and navigate to Workflow>Template>select the Template

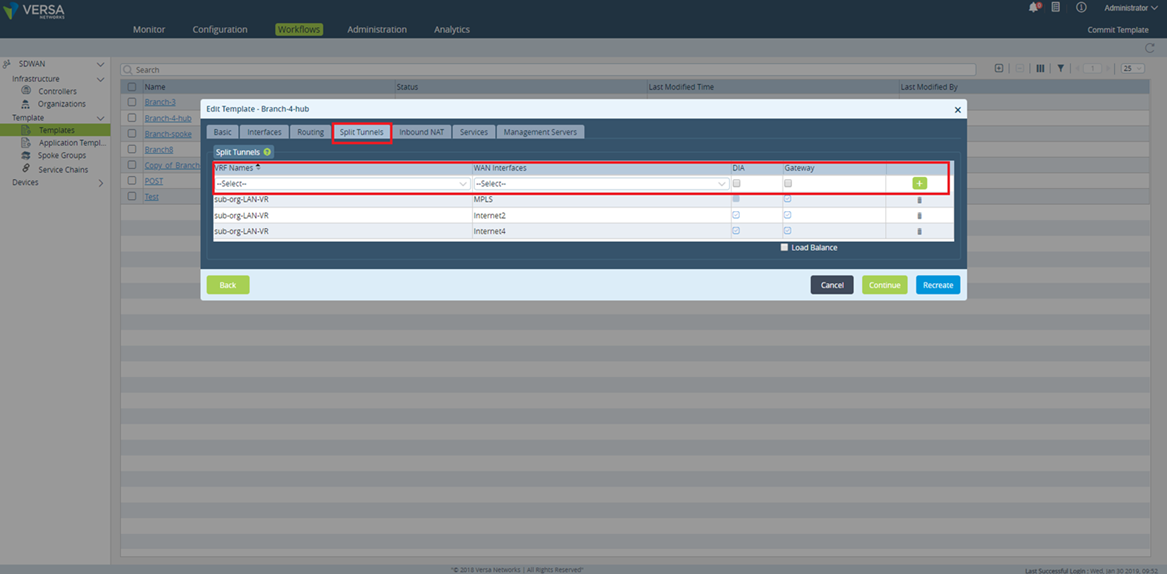

- Open the Template>Go to Split Tunnels
- Select the Lan-VR as all the SDWAN branches will have reachability to Lan-VR and select WAN interface where you have reachability to Non-SDWAN sites. (In this example, interface connecting to MPLS)
- And enable Gateway to advertise the Default Route to all other SDWAN branches. This will automatically create Paired TVI between Lan-VR and MPLS-Transport-VR with BGP configuration
- Add this configuration by clicking on +
Create BGP between Transport-VR and PE Router
- To advertise the SDWAN route to MPLS network and to get the Non-SDWAN route ,we need to create BGP between MPLS-Transport-VR and MPLS-PE router (service provider router)

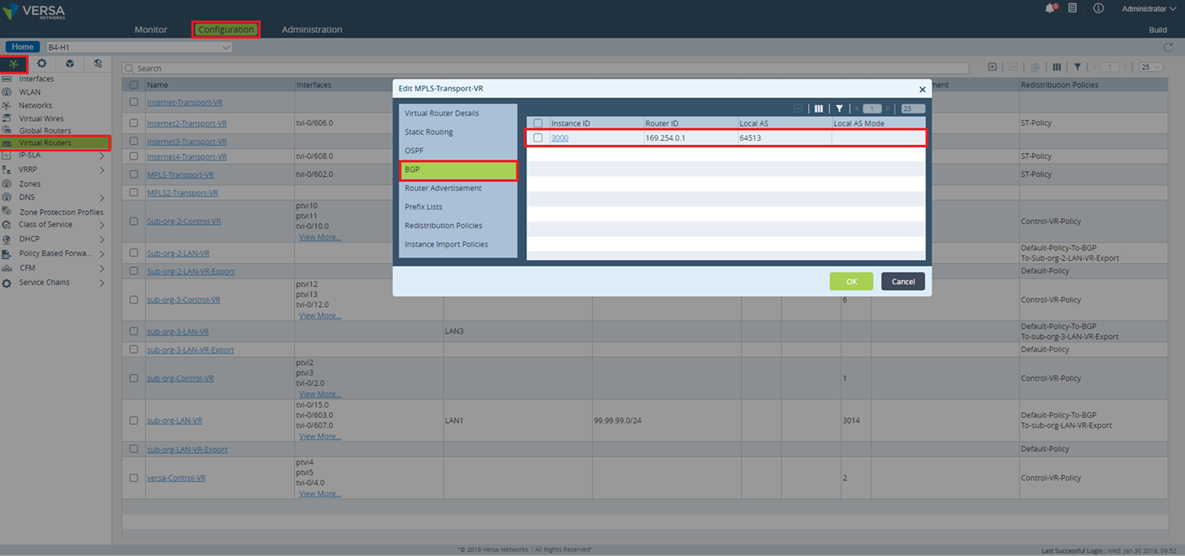

- Navigate to Service>Virtual Routers>MPLS-Transport-VR>select BGP

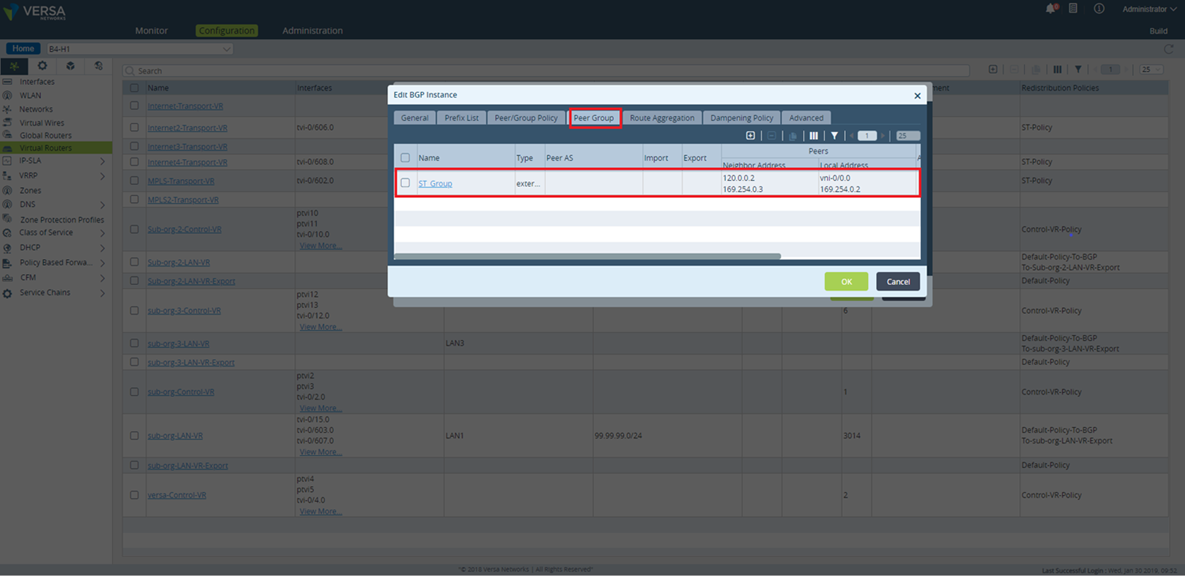

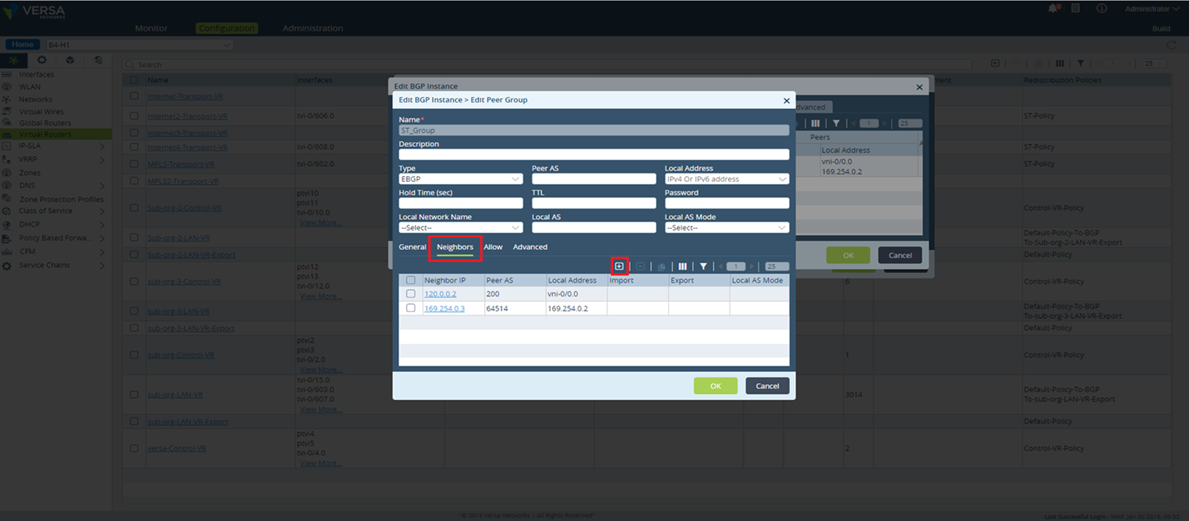

- Select Peer Group>Create BGP >Add neighbor details
120.0.0.2 : IP address of vni-0/0 interface of the PE router
169.254.0.3 : Remote IP address of MPLS-Transport-VR
169.254.0.2 : Local IP address of Lan-VR
Please Note We can add filter to the routes based on your requirement using Peer group policy.
Verification on Versa FlexVNF CPE
Spoke
admin@B5-S1-cli> show route routing-instance sub-org-LAN-VR
Routes for Routing instance : sub-org-LAN-VR AFI: ipv4
Codes: E1 - OSPF external type 1, E2 - OSPF external type 2
IA - inter area, iA - intra area,
L1 - IS-IS level-1, L2 - IS-IS level-2
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
RTI - Learnt from another routing-instance
+ - Active Route
Prot Type Dest Address/Mask Next-hop Age Interface name
---- ---- ----------------- -------- --- --------------
BGP N/A +0.0.0.0/0 10.0.192.109 11:37:03 Indirect ==================è Default Route from Hub CPE.
BGP N/A +9.9.9.9/32 10.0.192.101 4w1d06h Indirect
BGP N/A +11.11.11.11/32 10.0.192.102 4w1d06h Indirect
BGP N/A +50.0.0.0/24 10.0.192.101 4w1d06h Indirect
BGP N/A +60.0.0.0/24 10.0.192.102 4w1d06h Indirect
BGP N/A +99.99.99.0/24 10.0.192.109 3w6d22h Indirect
BGP N/A +110.0.0.0/24 10.0.192.103 19:34:06 Indirect
BGP N/A 110.0.0.0/24 10.0.192.104 02:36:31 Indirect
BGP N/A +120.0.0.0/24 10.0.192.109 4w0d21h Indirect
BGP N/A +140.0.0.0/24 10.0.192.109 19:34:06 Indirect
BGP N/A 140.0.0.0/24 10.0.192.110 4w1d06h Indirect
conn N/A +160.0.0.0/24 0.0.0.0 19:34:33 vni-0/1.0
local N/A +160.0.0.1/32 0.0.0.0 19:34:33 directly connected
BGP N/A +169.254.0.0/30 10.0.192.101 4w1d06h Indirect
conn N/A +169.254.0.4/31 0.0.0.0 19:35:06 tvi-0/605.0
local N/A +169.254.0.5/32 0.0.0.0 19:35:06 directly connected
BGP N/A +172.16.255.0/30 10.0.192.109 4w0d21h Indirect
BGP N/A +180.0.0.0/24 10.0.192.109 19:27:18 Indirect
BGP N/A 180.0.0.0/24 10.0.192.110 4w1d06h Indirect
BGP N/A +190.0.0.0/24 10.0.192.109 7w0d11h Indirect
BGP N/A +200.0.0.0/24 10.0.192.109 7w0d11h Indirect
Hub
admin@B4-H1-cli> show route routing-instance sub-org-LAN-VR
Routes for Routing instance : sub-org-LAN-VR AFI: ipv4
Codes: E1 - OSPF external type 1, E2 - OSPF external type 2
IA - inter area, iA - intra area,
L1 - IS-IS level-1, L2 - IS-IS level-2
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
RTI - Learnt from another routing-instance
+ - Active Route
Prot Type Dest Address/Mask Next-hop Age Interface name
---- ---- ----------------- -------- --- --------------
BGP N/A +0.0.0.0/0 169.254.0.2 18:07:40 tvi-0/602.0 ==================è Route from MPLS-Transport-VR
BGP N/A +9.9.9.9/32 10.0.192.101 4w1d06h Indirect
BGP N/A +11.11.11.11/32 10.0.192.102 4w1d06h Indirect
BGP N/A +50.0.0.0/24 10.0.192.101 4w1d06h Indirect
BGP N/A +60.0.0.0/24 10.0.192.102 4w1d06h Indirect
static N/A +99.99.99.0/24 169.254.0.2 4w0d15h tvi-0/603.0
BGP N/A +110.0.0.0/24 10.0.192.103 11:40:05 Indirect
BGP N/A 110.0.0.0/24 10.0.192.104 6w4d10h Indirect
BGP N/A +120.0.0.0/24 169.254.0.2 4w0d21h tvi-0/603.0
BGP N/A 140.0.0.0/24 10.0.192.110 11:40:05 Indirect
conn N/A +140.0.0.0/24 0.0.0.0 20:33:47 vni-0/1.0
local N/A +140.0.0.1/32 0.0.0.0 20:33:47 directly connected
BGP N/A +160.0.0.0/24 10.0.192.106 11:40:06 Indirect
BGP N/A +169.254.0.0/30 10.0.192.101 4w1d06h Indirect
BGP N/A 169.254.0.2/31 169.254.0.2 4w0d21h tvi-0/603.0
conn N/A +169.254.0.2/31 0.0.0.0 20:34:11 tvi-0/603.0
local N/A +169.254.0.3/32 0.0.0.0 20:34:11 directly connected
admin@B4-H1-cli> show route routing-instance MPLS-Transport-VR
Routes for Routing instance : MPLS-Transport-VR AFI: ipv4
Codes: E1 - OSPF external type 1, E2 - OSPF external type 2
IA - inter area, iA - intra area,
L1 - IS-IS level-1, L2 - IS-IS level-2
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
RTI - Learnt from another routing-instance
+ - Active Route
Prot Type Dest Address/Mask Next-hop Age Interface name
---- ---- ----------------- -------- --- --------------
BGP N/A +0.0.0.0/0 120.0.0.2 20:36:13 vni-0/0.0 ====================è Routes from MPLS PE
BGP N/A +9.9.9.9/32 169.254.0.3 4w1d06h tvi-0/602.0
BGP N/A +11.11.11.11/32 169.254.0.3 4w1d06h tvi-0/602.0
BGP N/A +50.0.0.0/24 169.254.0.3 4w1d06h tvi-0/602.0
BGP N/A +60.0.0.0/24 169.254.0.3 4w1d06h tvi-0/602.0
BGP N/A +110.0.0.0/24 169.254.0.3 20:36:05 tvi-0/602.0
conn N/A +120.0.0.0/24 0.0.0.0 20:36:13 vni-0/0.0
local N/A +120.0.0.1/32 0.0.0.0 20:36:13 directly connected
BGP N/A +140.0.0.0/24 169.254.0.3 20:36:13 tvi-0/602.0
BGP N/A +160.0.0.0/24 169.254.0.3 19:39:20 tvi-0/602.0
BGP N/A +169.254.0.0/30 169.254.0.3 4w1d06h tvi-0/602.0
conn N/A +169.254.0.2/31 0.0.0.0 20:36:36 tvi-0/602.0
local N/A +169.254.0.2/32 0.0.0.0 20:36:36 directly connected
conn N/A +172.16.255.0/30 0.0.0.0 20:36:13 vni-0/4.1
local N/A +172.16.255.1/32 0.0.0.0 20:36:13 directly connected
BGP N/A +180.0.0.0/24 169.254.0.3 13:46:21 tvi-0/602.0
BGP N/A +190.0.0.0/24 120.0.0.2 7w0d11h vni-0/0.0 ==================è Routes from MPLS PE
BGP N/A +200.0.0.0/24 120.0.0.2 7w0d11h vni-0/0.0
conn N/A +169.254.0.6/31 0.0.0.0 20:34:11 tvi-0/607.0
local N/A +169.254.0.7/32 0.0.0.0 20:34:11 directly connected
conn N/A +169.254.0.8/31 0.0.0.0 20:34:11 tvi-0/609.0
local N/A +169.254.0.9/32 0.0.0.0 20:34:11 directly connected
BGP N/A +172.16.255.0/30 169.254.0.2 4w0d21h tvi-0/603.0
BGP N/A +180.0.0.0/24 10.0.192.105 13:43:55 Indirect
BGP N/A +190.0.0.0/24 169.254.0.2 7w0d11h tvi-0/603.0
BGP N/A +200.0.0.0/24 169.254.0.2 7w0d11h tvi-0/603.0
Please Note We allowed only Default route to advertise, so remaining routes will not be advertised to LAN-VR.
