This article describes how to configure Twice NAT on Versa FlexVNF CPE
# Introduction
Twice NAT lets you modify both, the source and destination address in a single rule.
In this example, the source and destination IP address of the packet is translated.

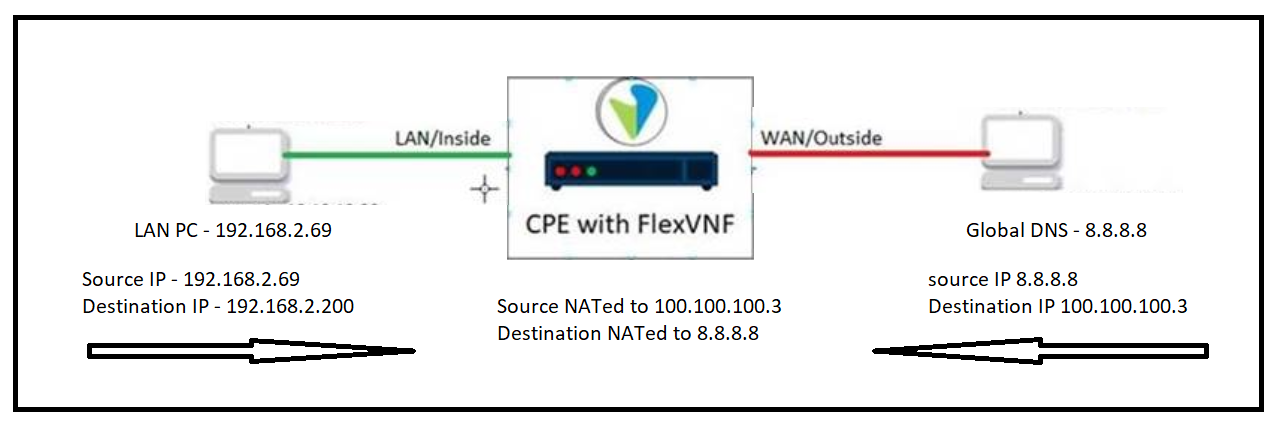

If a packet sourced from 192.168.2.69 and destined to 192.168.2.200 arrives at the LAN interface, the Versa FlexVNF will translate the source address to the WAN interface IP(100.100.100.3) and it will also translate the destination address to 8.8.8.8 as shown in the following topology.
Please Note: All configurations are performed under appliance context.
Topology
# Prerequisites
- The reachability should be there from FlexVNF WAN interface to remote Host.
- CGNAT service should be enabled on Versa FlexVNF CPE
# Terms and Explanations
Configuring Destination Pool.
- A Destination-NAT pool is a user-defined set of IP addresses that are used for translation.
- Destination NAT is the translation of the destination IP address of a packet entering the Versa FlexVNF device. To achieve this, we need to create Destination Pool.
- Destination NAT is used to redirect traffic destined to a virtual host (identified by the original destination IP address) to the real host (identified by the translated destination IP address). Destination NAT allows connections to be initiated only for incoming network connections
- In this example the Virtual Host is 192.168.2.200 and the real Host is 8.8.8.8.
Configuring Source pools
- A Source-NAT pool is a user-defined set of IP addresses that are used for translation. With source NAT, you translate the original source IP address to an IP address in the address pool.
- Source-NAT is the translation of the source IP address of a packet entering the Versa FlexVNF device. To achieve this we need to create source Pool.
- In this example the original source IP Address is 192.168.2.69 and it is getting NAT to 100.100.100.3.
Configuring Rules
Each NAT rule consists of a set of terms/matches, after successful matching of the packet CGNAT Rule will take the action. The NAT Rule defines how to change the source/destination IP Address/Port. In the NAT Rule you can match the packet according - Zones/ IP Address/Mask/Routing Instance/Protocol/Port number for both source and destinations then you can apply the action to be performed.
# Configuration:
Configuring Destination pools

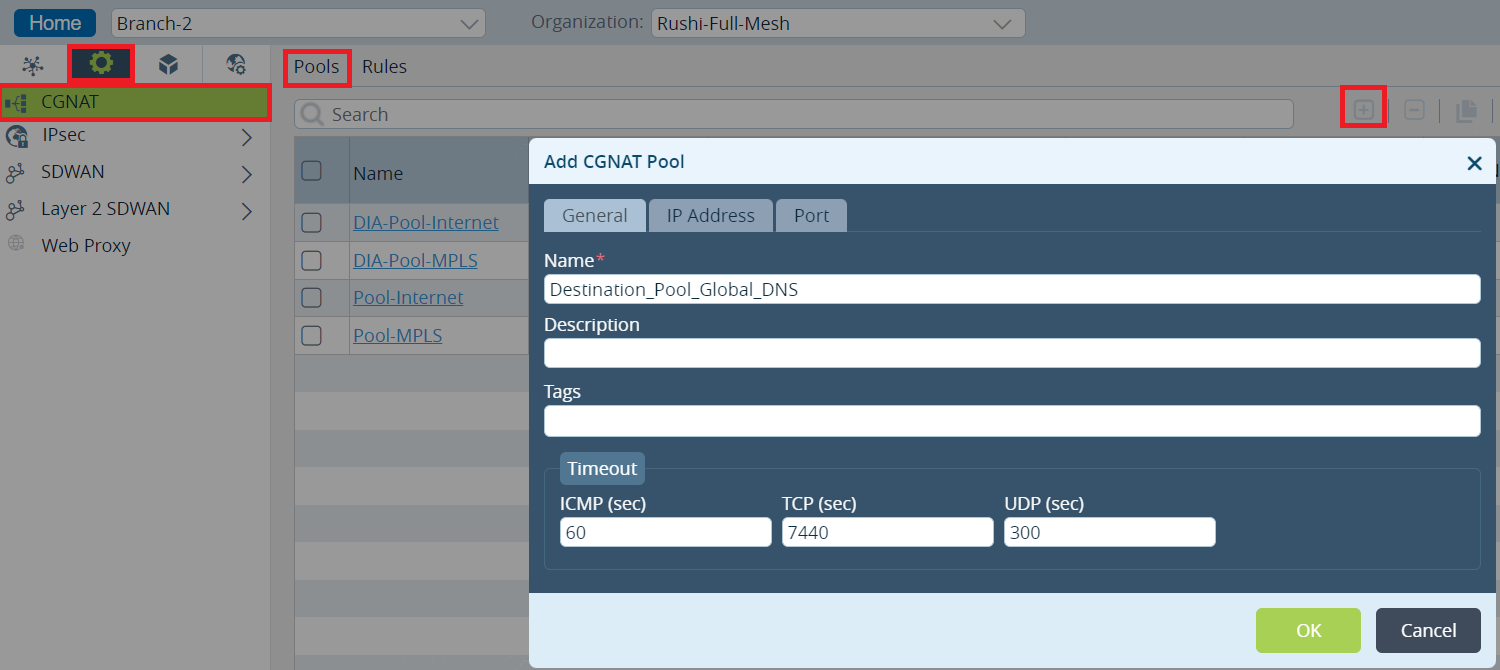

- In the Appliance context view, go to Configuration > Services > CGNAT.
- Click + to add a pool.

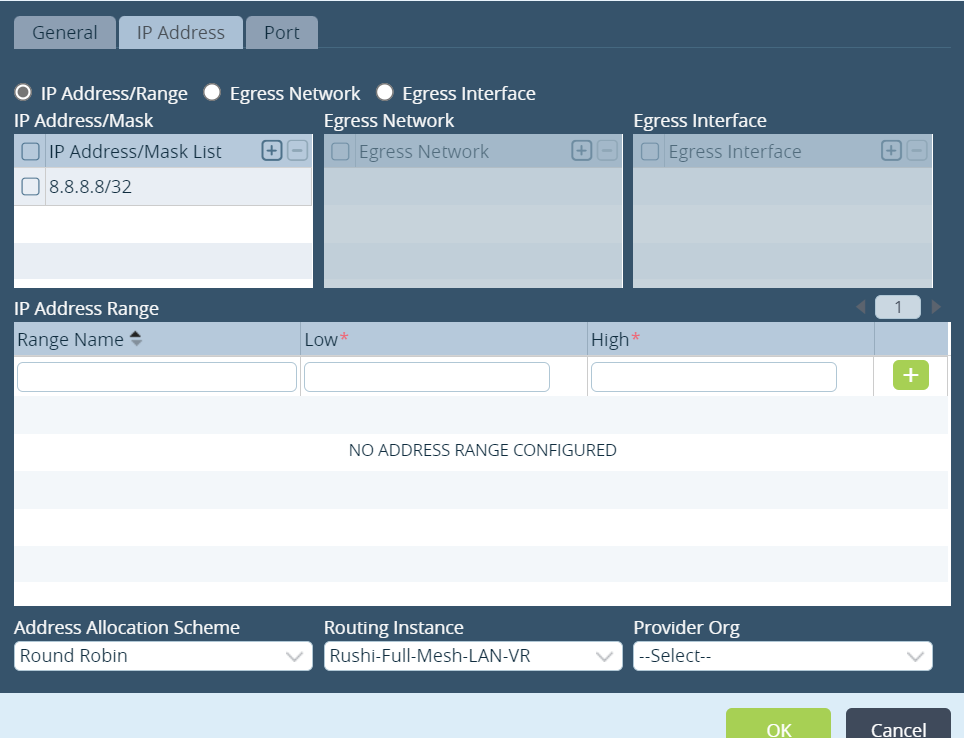

- To define the IP addresses for NAT, click the IP Address tab. Add the IP addresses or IP address range.

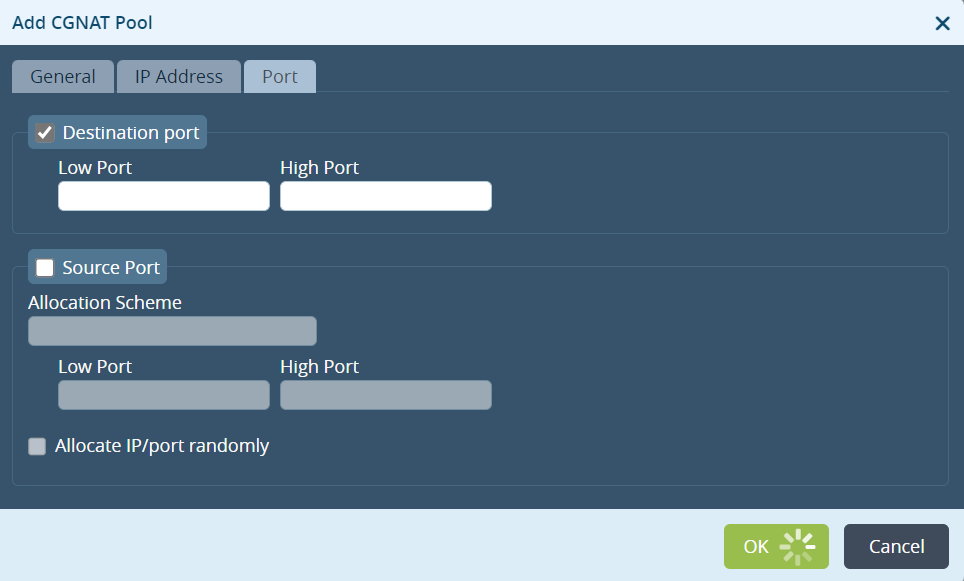

- Click the Port tab for Destination NAT.
- Click OK to complete configuration for destination pools
Configuring Source pools:

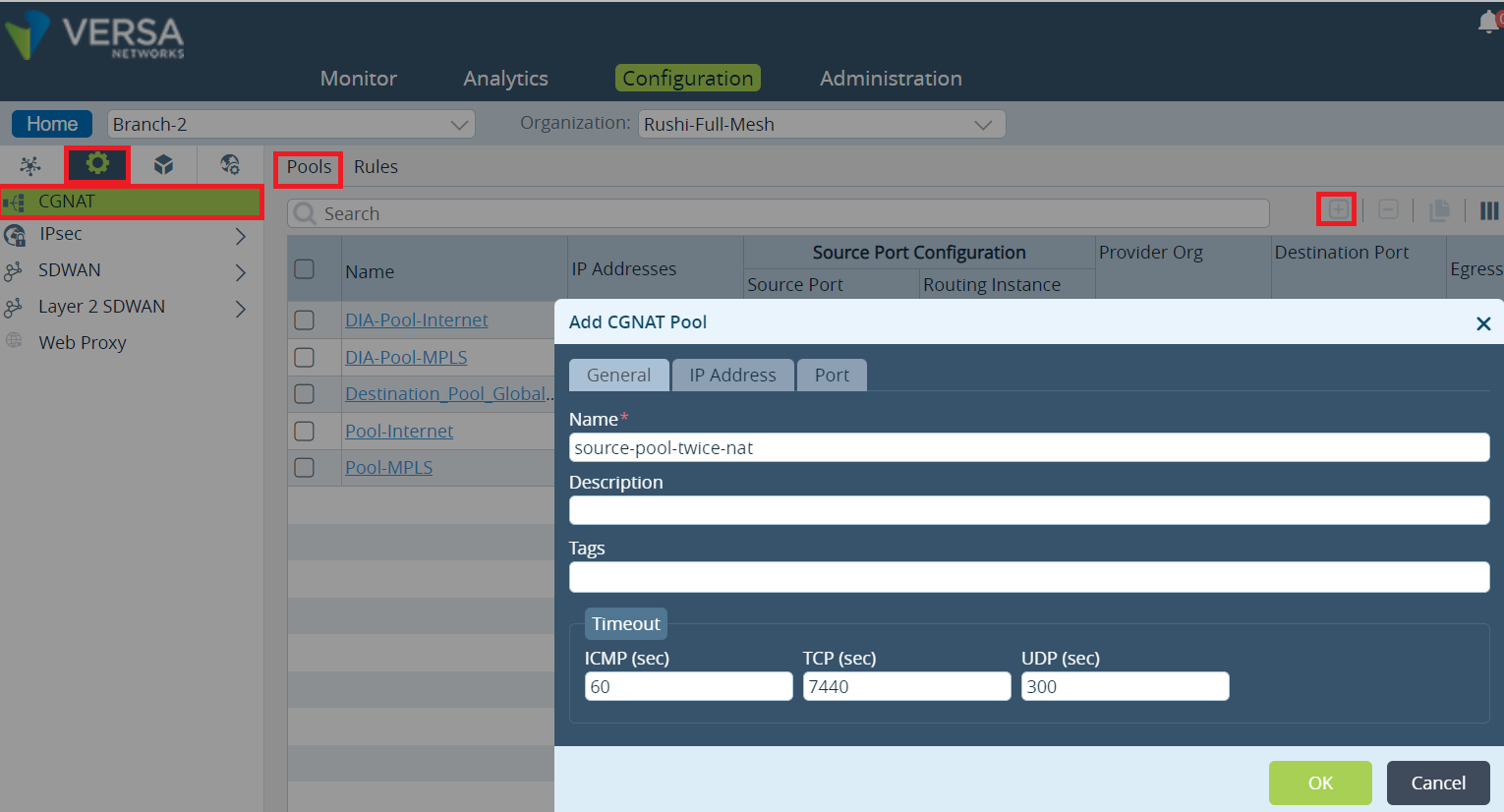

- In the Director view, go to Configuration > Services > CGNAT.
- Click + to add a pool

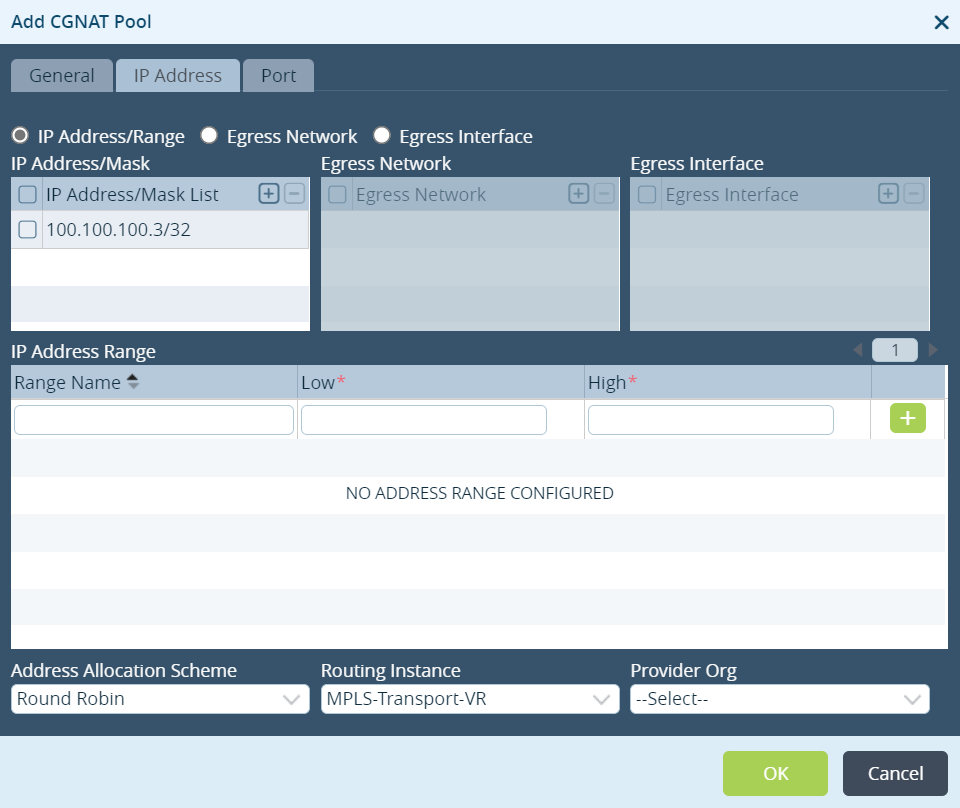

- To define the IP addresses for NAT, click the IP Address tab. Add the IP addresses or IP address range.

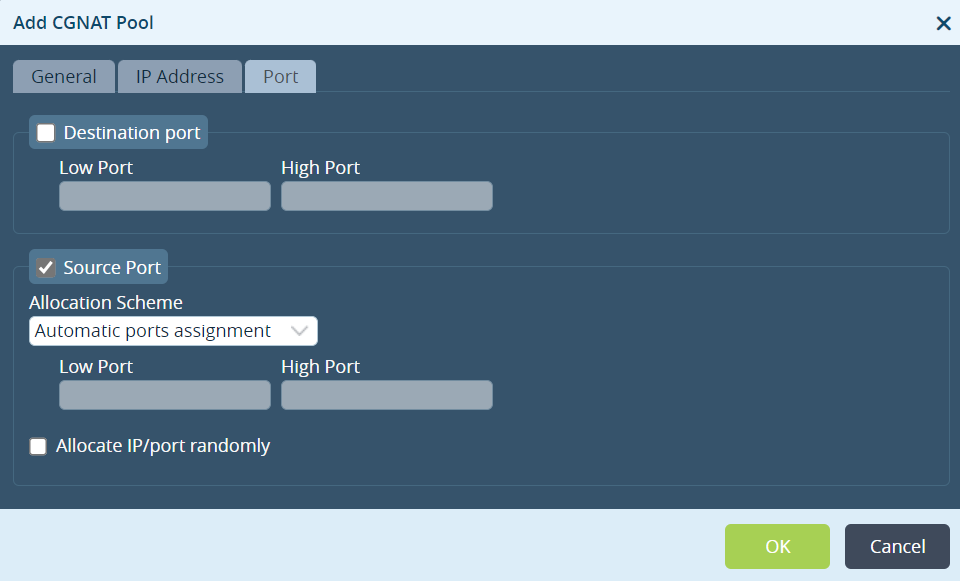

- Click the Port tab for Source NAT.
- Click OK to complete the source pool configuration.
The next step is to define the network address match criteria and the actions to be taken when the criteria is met.
Configuring Rules

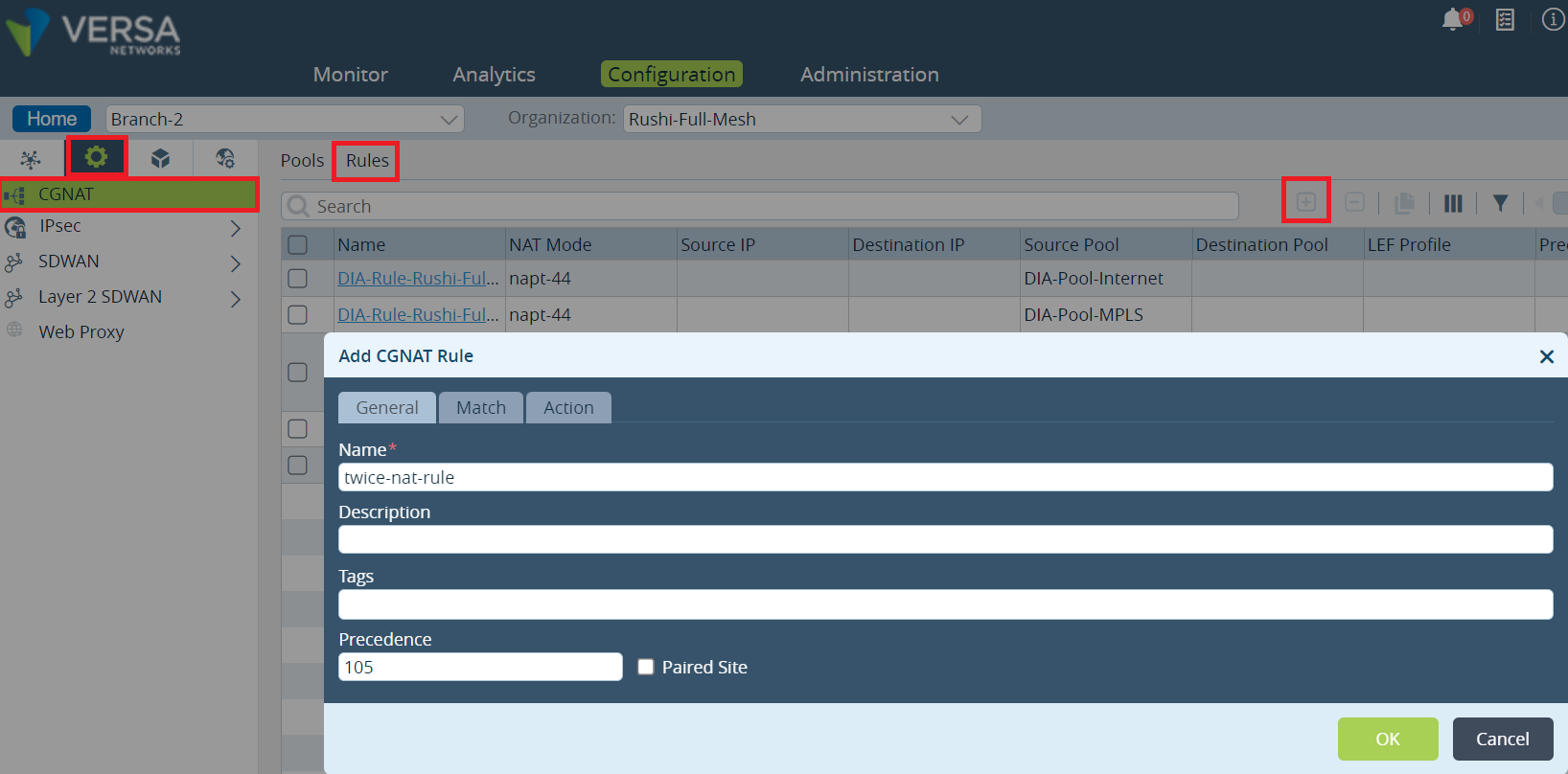

- In the Director view, go to Configuration > Services > CGNAT > Rules.
- Click + to configure a rule.

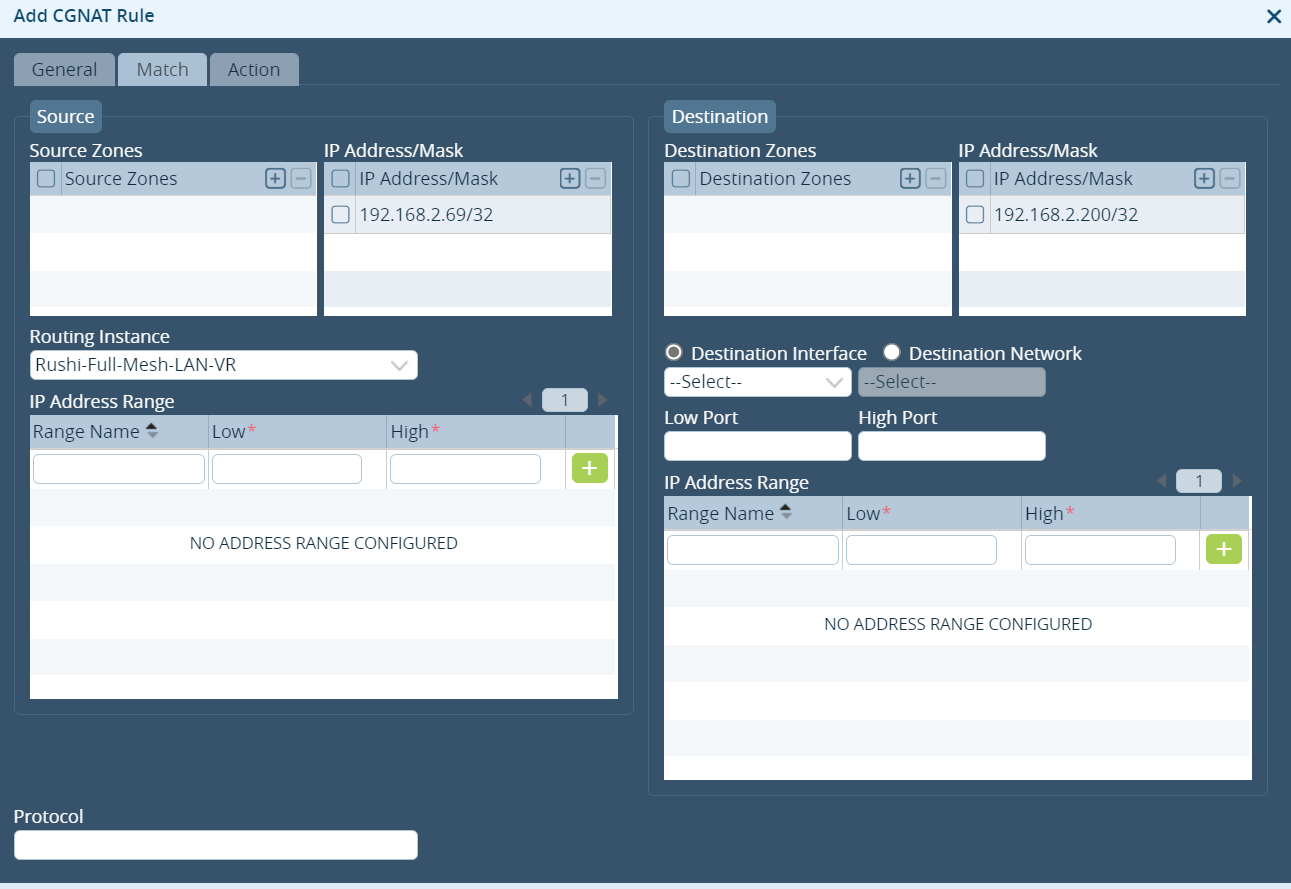

- To configure the criteria to select traffic for translation, click the Match tab.

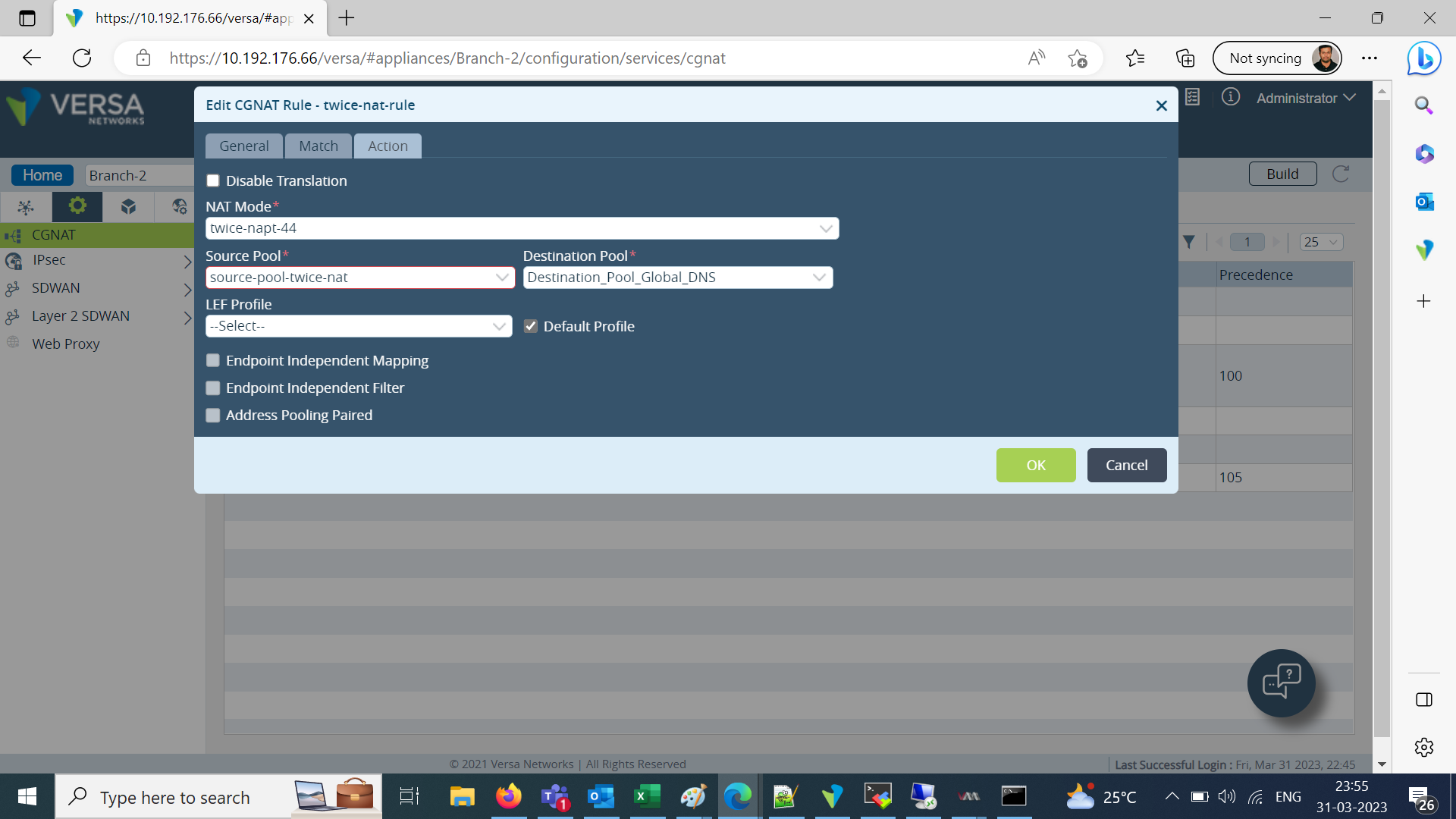

- Click the Action tab. Define the action to be taken on the traffic that meets the matching criteria.
- Click OK to complete the Rules configuration
# Validation and Troubleshooting Steps:
Below is the session extensive CLI output for a session.
You can find the NAT-Rule, Interfaces, source and destination IP Address. Check the sessions extensive and make sure the session is hitting the specific Rule/Interfaces/NAT.
admin@Branch-2-cli> show orgs org Rushi-Full-Mesh sessions extensive | select destination-ip 192.168.2.200 sessions extensive 0 2 23813 source-ip 192.168.2.69 --- Real Source IP destination-ip 192.168.2.200 --- NATed destination IP source-port 160 destination-port 160 protocol 1 natted Yes --- Indication of traffic subjected to NAT sdwan No application icmp/(predef) forward-pkt-count 1 forward-byte-count 60 reverse-pkt-count 1 reverse-byte-count 60 dropped-forward-pkt-count 0 dropped-forward-byte-count 0 dropped-reverse-pkt-count 0 dropped-reverse-byte-count 0 session-age 00:00:00 idle-for 00:00:00 idle-timeout 60 pbf-enabled true forward-egress-vrf MPLS-Transport-VR --- WAN reverse-egress-vrf Rushi-Full-Mesh-LAN-VR --- LAN session-provider-zone 0 forward-offload false reverse-offload false forward-ingress-interface vni-0/2.0 forward-egress-interface vni-0/0.0 reverse-ingress-interface vni-0/0.0 reverse-egress-interface vni-0/2.0 forward-fc fc_be reverse-fc fc_be forward-plp low reverse-plp low external-service-chaining false is-child No parent-sess-id 0 device "" nat-source-ip 100.100.100.3 ---- NATed Source IP nat-destination-ip 8.8.8.8 ---- Real Destination IP nat-source-port 55861 nat-destination-port 55861 nat-rule-name twice-nat-rule --- Rule that got hit nat-direction C2S rx-wan-ckt vni-0/2.0 tx-wan-ckt vni-0/2.0 tx-branch - forward-ingress-ckt vni-0/2.0 forward-egress-ckt MPLS reverse-ingress-ckt MPLS reverse-egress-ckt vni-0/2.0 symmetric-forwarding layer-3
Check the CGNAT Rule hit count:
admin@Branch-2-cli> show orgs org-services Rushi-Full-Mesh cgnat rules twice-nat-rule statistics
FORWARD FORWARD REVERSE REVERSE
HIT PKT BYTE PKT BYTE
COUNT COUNT COUNT COUNT COUNT
-------------------------------------------
3 26 1560 0 0

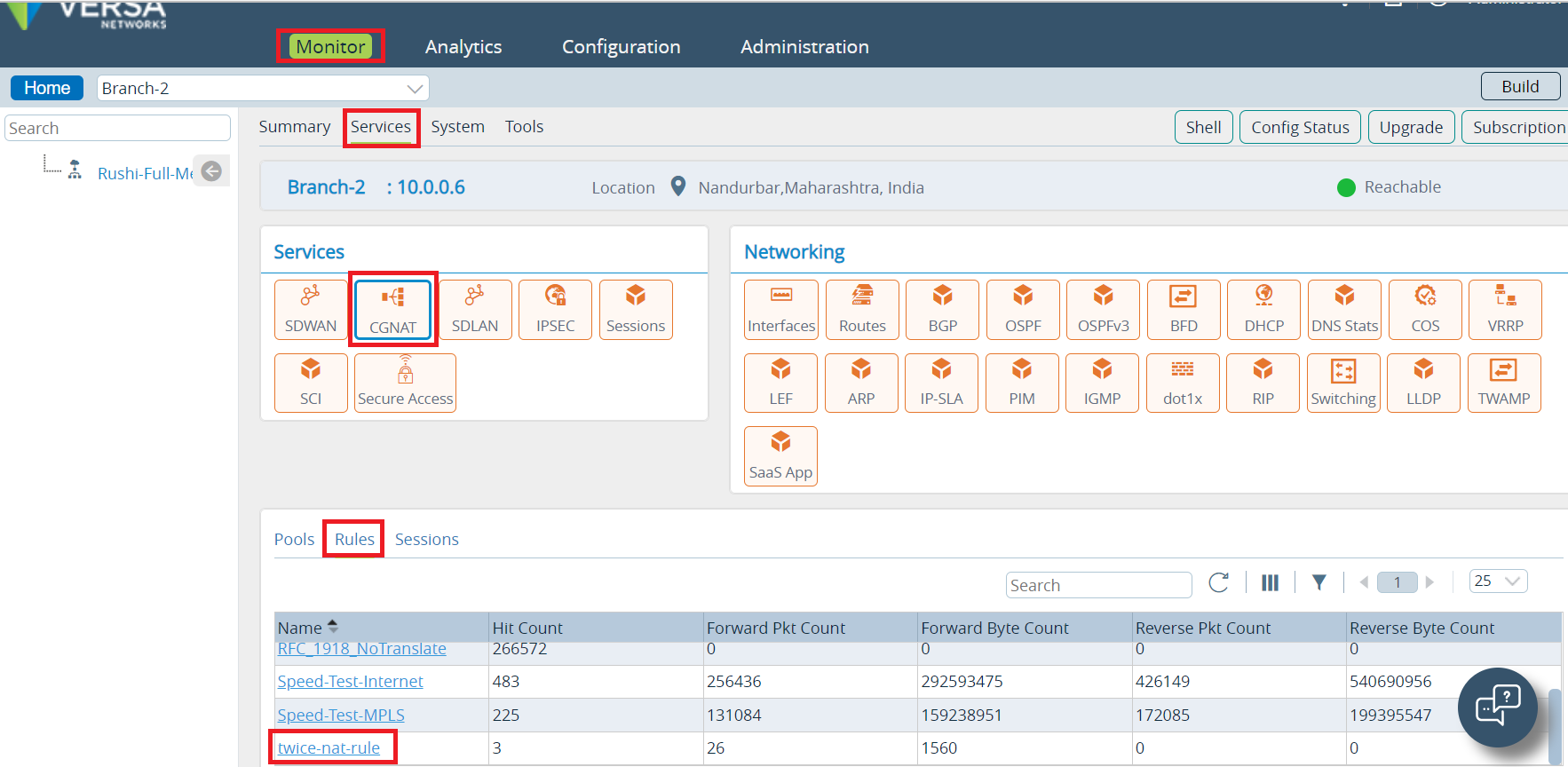

You can monitor the session details and NAT Pool/Rule/usage as below
