How to debug uCPE onboarding related issues


This article describes how to debug uCPE onboarding related issues.



  1. "request system hypervisor enable no-confirm"
    This will stop the service and install the hypervisor packages. This need to be done before pushing the uCPE-servicechain template. If thes packages are not installed before the template push, then the starting of guest-vnf will not go through and the task will fail.

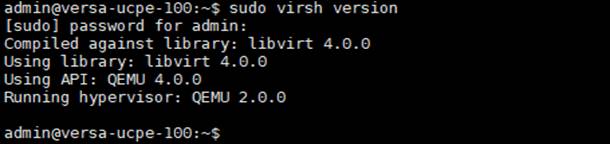

  1. How to check hypervisor version

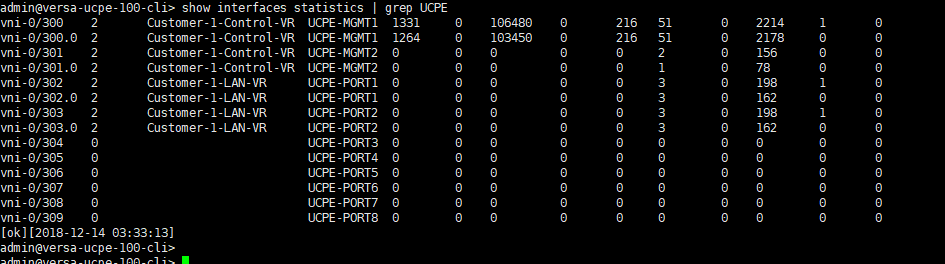

  1. How to check Port mapping. Interface vni-30x are created for uCPE management pupose

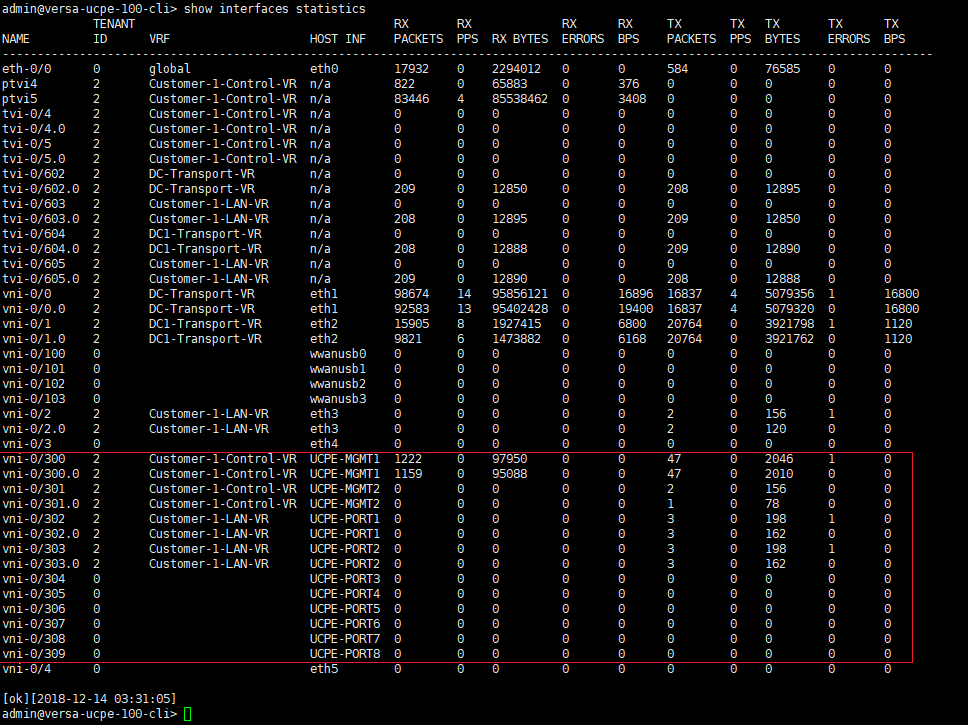

  1. Check the interface statistics for uCPE on appliance CLI

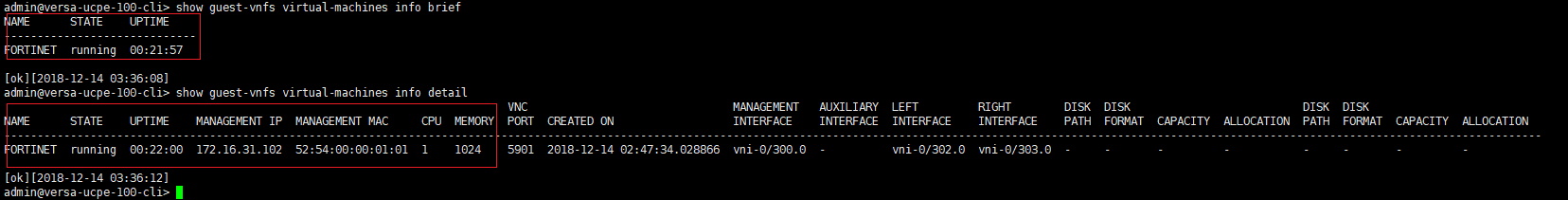

  1. Check the information about the guest-vnf



6.  For HTTP access, Director login the Management IP of the NFV. Please make sure the ports 9090 and 6090 are opened in the Director. Also open these ports in any firewall infront of the Director node. If the Director runs in AWS then also we need to open these ports for Guest-VNF access.


Administrator@Director:~$ sudo netstat -pant | grep 9090

tcp6       0      0 10.40.151.119:9090      :::*                    LISTEN      27026/java

tcp6       0      0 10.40.151.119:9090      10.42.144.143:52210     ESTABLISHED 27026/java

tcp6       0      0 10.40.151.119:9090      10.42.144.143:52213     ESTABLISHED 27026/java


Administrator@Director:~$ sudo netstat -pant | grep 6090

tcp        0      0 127.0.0.1:4566          127.0.0.1:46090         ESTABLISHED 26651/ncs.smp

tcp        0      0 127.0.0.1:4566          127.0.0.1:60908         ESTABLISHED 26651/ncs.smp

tcp6       0      0 127.0.0.1:60906         127.0.0.1:4566          TIME_WAIT   -

tcp6       0      0 127.0.0.1:60908         127.0.0.1:4566          ESTABLISHED 27026/java

tcp6       0      0 127.0.0.1:46090         127.0.0.1:4566          ESTABLISHED 27026/java
