This article describes How to Deploy Flex on GCE


Pre-requisite

Deploy a VM with Ubuntu 14.04 on GCE (By default, when a VM is created in GCE it assign /32 subnet IP on interface)

Configuration

·         Create an Ubuntu VM

·         Run “MULTI_IP_SUBNET” enable command, which in turn will create a new image:


           gcloud compute images create flex-vnf-multi-ip-subnet<new_image name> --source-disk  vm-ubuntu <running instance            name> --source-disk-zone us-east1-b --guest-os-features MULTI_IP_SUBNET


·         Launch instance with the newly created image which has MULTI_IP_SUBNET property and map appropriate network. While creating VM make sure IP Forwarding flag enabled on the VM as shown in below mentioned screenshot




cid:image004.png@01D460D7.1C0EBCB0


  • Once you have Ubuntu 14.04 VM ready, please run the below attached script:


  • Please change file permission

chmod a+x gcp_prep.sh




  • Please edit below mentioned line in the script with the relevant kernel version needed with respect to Flex VNF SW version going to be installed

readonly KVER=4.4.0-116-generic


  • Run this script with the given arguments

./gcp_prep.sh -p <versa-flexvnf-xxxxx-xxxx-xxxx-16.1R2S8.deb> -n <Director SB IP>


  • Before you run Staging script on VNF, few mandatory Flex Specific settings needs to be changed
  • Need to disable broadcast flag in dhcp client option, otherwise the interface will not get DHCP IP

admin@vnf-harsh-cli(config)% show interfaces vni-0/0

unit 0 {

    family {

        inet {

            dhcp;

           dhcp-client-options {

                disable-broadcast-flag;

            }

        }

    }

}




  • User need to add a static route in WAN routing for internet reachability

                           set routing-instances grt routing-options static route 0.0.0.0/0 10.193.0.1<First IP of the assigned subnet> vni-0/0.0


  • Once Branch on-boarded, add a Custom route having Flex as a GW which is like UDR in Azure.

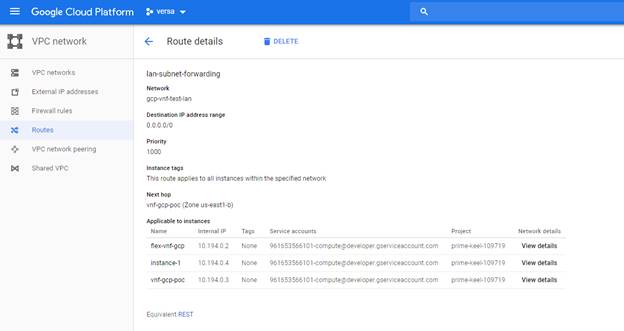

          Screenshot of Custom route entry in GCP for Flex LAN network is attached below


cid:image003.png@01D460D6.3D5D2790
