Link Aggregation Control Protocol (LACP) allows multiple physical Ethernet links to be bundled together into a logical Aggregate Ethernet (AE) interface, providing higher bandwidth, redundancy, and resiliency. In Versa Networks environments, AE interfaces with LACP can be configured either through a Device Template (recommended) or directly at the Appliance Context level. Note that AE interfaces cannot be configured using a Workflow Template, as workflows only provision service-oriented configurations and not base networking constructs like link aggregation.

This article walks through the methods of LACP configuration and provides additional considerations for network engineers deploying Versa Secure SD-WAN environments.

Why Use AE + LACP?

AE interfaces with LACP offer several operational benefits:

  • High Availability: Ensures traffic resiliency in case one physical link fails.

  • Load Balancing: Distributes traffic across multiple links, improving throughput.

  • Scalability: Provides flexible bandwidth expansion without redesigning network architecture.

  • Standardization: As an IEEE 802.1AX standard, LACP ensures interoperability with third-party switches, routers, and other networking gear.


Method 1: Configuring LACP Using a Device Template (Recommended)

The Device Template method is highly recommended because it provides centralized configuration management and scalable deployment across multiple appliances.

Step 1: Create a New Aggregate Ethernet (AE) Interface

  1. In the Director view, navigate to:
    Configuration > Templates > Device Templates

  2. Select the device template to modify.

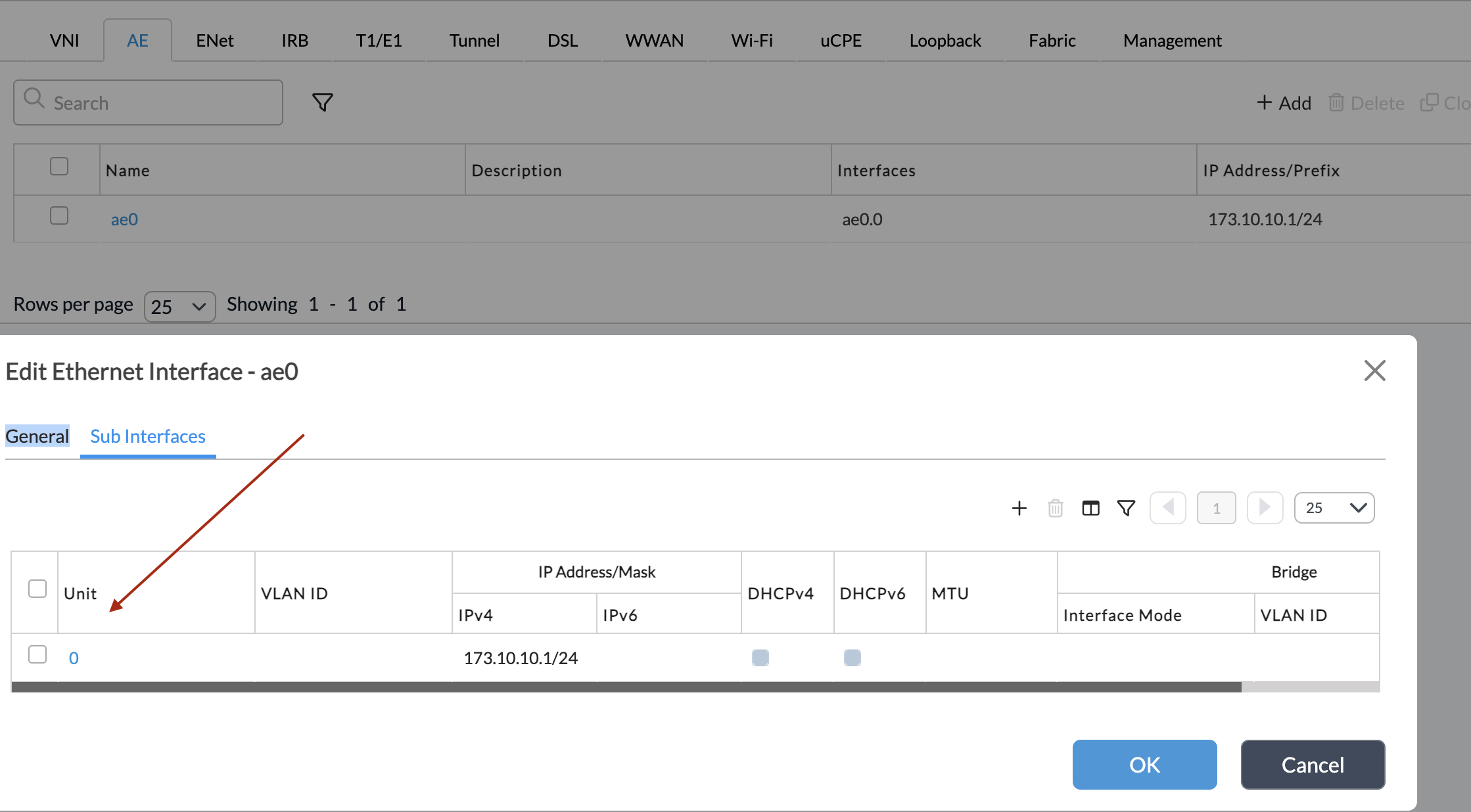

  3. Go to: Networking > Interfaces > AE

  4. Click + Add to create a new AE interface.

  5. Enter the Aggregate Ethernet interface number (e.g., ae0).

  6. Enable LACP and configure parameters:

    • LACP Mode

      • active: The device actively initiates LACP negotiation.

      • passive: The device waits for an LACP peer before enabling negotiation.

    • System Priority: Value between 1–65535 (default 127). Lower values have higher priority in LACP decisions.

    • Periodicity:

      • fast: Sends LACP PDUs every 1 second.

      • slow: Sends PDUs every 30 seconds.

    • Max Links: Maximum number of physical interfaces that can be bundled (default 16).

  7. Click OK to save.



Step 2: Add Physical LAN Ports (Vni Ports) as AE Members

  1. Go to Networking > Interfaces > Ethernet.

  2. Click Add to configure a physical Ethernet interface.

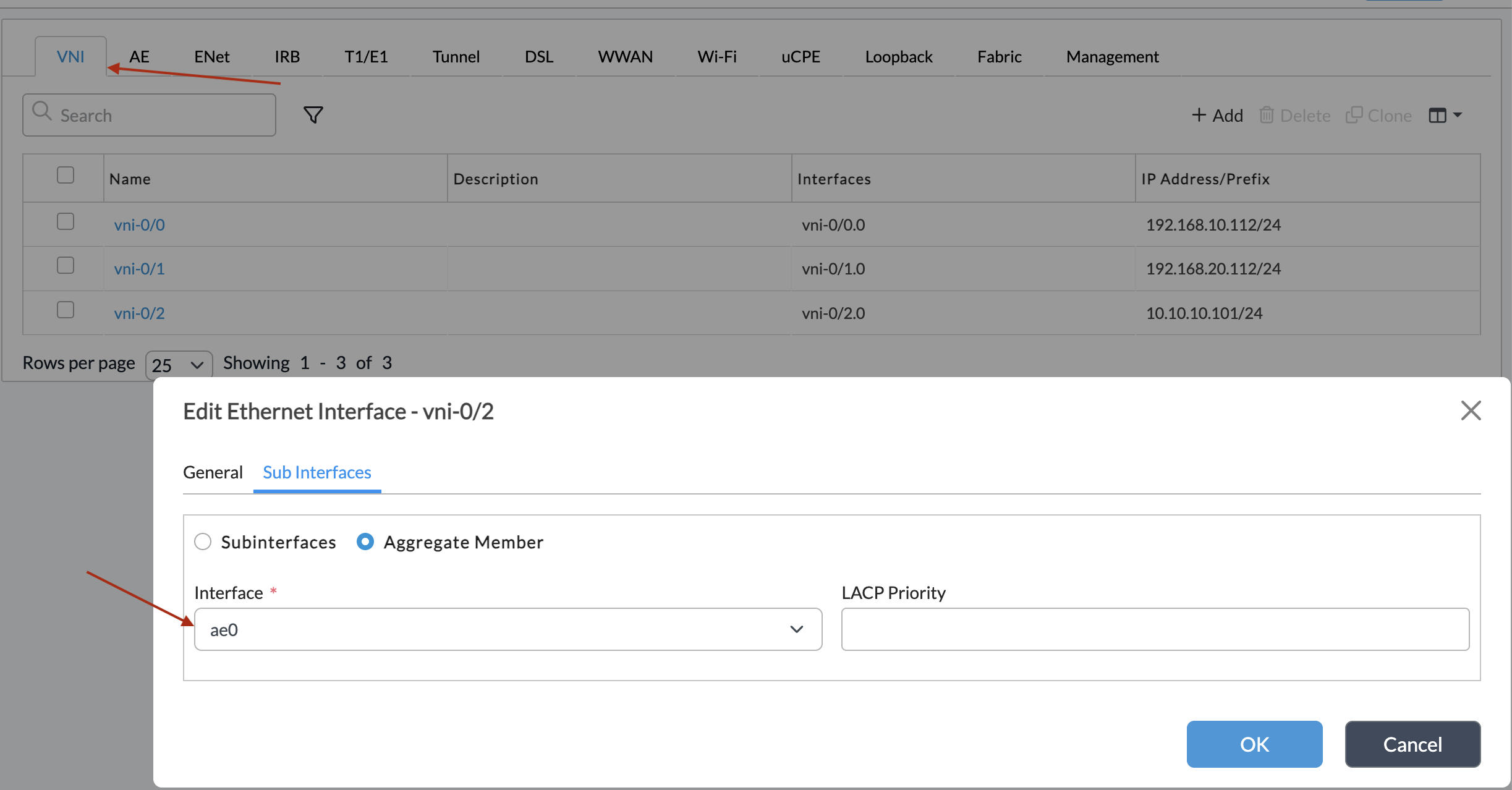

  3. In the Add Ethernet Interface window, select the Subinterfaces tab.

  4. Click Aggregate Member.

  5. Configure:

    • Interface: Select the AE interface you created (e.g., ae0).

    • LACP Priority: Determines member preference during link selection (default 127).

  6. Click OK.

  7. Repeat for all ports you want in the bundle.



Step 3: Assign AE Interface to Networks and Virtual Routers

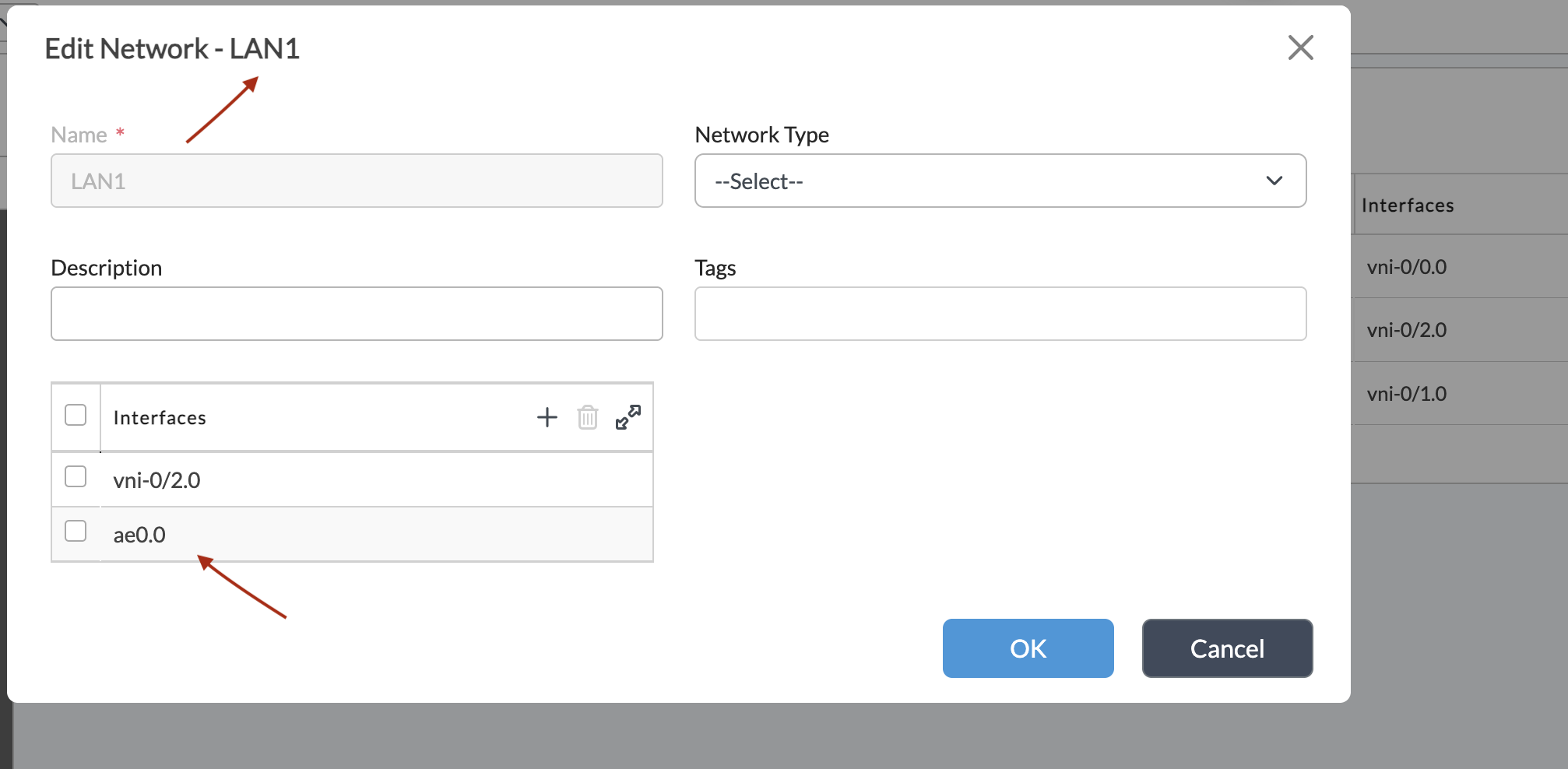

  1. Navigate to the Networks tab within the device template.

  2. Add the new AE interface to the relevant LAN network.

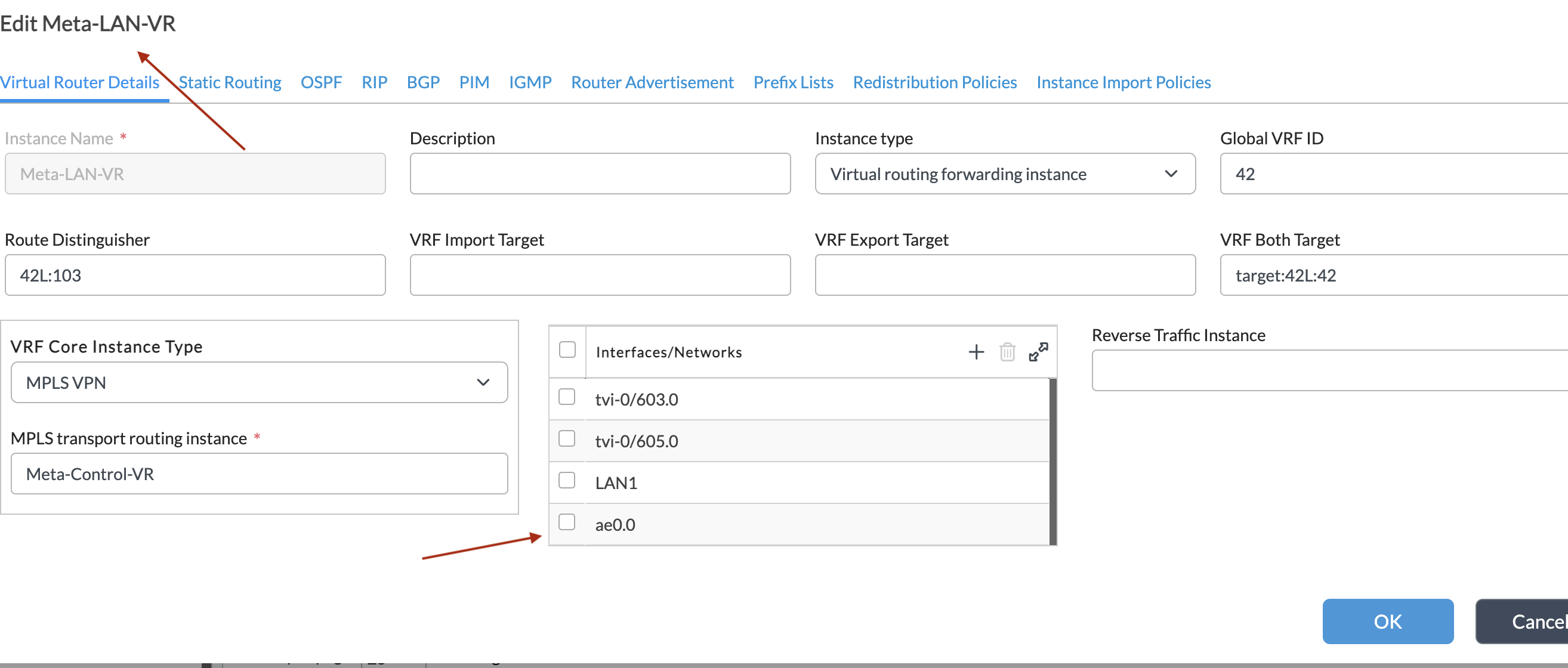

  3. Navigate to the Virtual Routers tab.

  4. Add the LAN network (with AE) under the correct Virtual Router.

  5. Commit changes so they propagate to the appliance.


Method 2: Configuring LACP in Appliance Context

For standalone or quick deployments, you can configure LACP directly in the appliance context under Configuration > Networking > Interfaces > AE. This is useful for testing or when applying unique configurations not shared via templates. However, this approach reduces scalability since changes must be performed on each appliance individually.


Verifying LACP Configuration Using VOS CLI:


  • show aggregate-ethernet

    Displays the status of AE interfaces, the aggregation protocol in use (e.g., LACP), and their associated member interfaces.


  • show lacp info interfaces

    Provides detailed role information for each interface in the AE bundle, including Actor/Partner details, system priority, system ID, and port attributes.

  • show lacp interfaces

    Displays LACP interface state, including synchronization, distribution, timeout, and activity mode (active/passive).

  • show lacp statistics
    Displays counters and protocol-level statistics for LACP interfaces. This is useful for monitoring stability and detecting negotiation issues. (Note: No sample output provided in documentation.)


    CLI configuration:


    admin@CPE1-cli> show configuration interfaces vni-0/1

    enable      true;

    promiscuous false;

    ether-options {

        aggregate ae0;

        link-speed auto;

        link-mode  auto;

    }

    [ok][2018-11-28 18:31:33]

    admin@CPE1-cli> show configuration interfaces vni-0/2

    enable      true;

    promiscuous false;

    ether-options {

        aggregate ae0;

        link-speed auto;

        link-mode  auto;

    }

    [ok][2018-11-28 18:31:37]

    admin@CPE1-cli> show configuration interfaces ae0

    enable      true;

    promiscuous false;

    unit 0 {

        enable true;

        family {

            inet {

                address 173.10.10.1/24;

            }

        }

    }

    aggregated-ethernet-options {

        lacp {

            lacp-mode       active;

            system-priority 127;

            periodic        slow;

            max-links       16;

        }

    }







    Verification:





    [ok][2018-11-28 18:03:04]

    admin@CPE1-cli> show lacp interfaces

    AE    MEMBER

    NAME  INTF     ROLE     EXP  DEF  DIST  COL  SYN  AGGR  TIMEOUT  ACTIVITY

    ---------------------------------------------------------------------------

    ae0   vni-0/4  Partner  No   No   No    No   No   No    slow     Passive

    ae0   vni-0/4  Actor    No   Yes  No    No   Yes  Yes   slow     Active

    ae0   vni-0/5  Partner  No   No   No    No   No   No    slow     Passive

    ae0   vni-0/5  Actor    No   Yes  No    No   Yes  Yes   slow     Active



    [ok][2018-11-28 18:03:55]

    admin@CPE1-cli> show interfaces brief ae0.0

    NAME   MAC                OPER  ADMIN  TENANT  VRF     IP

    -----------------------------------------------------------------------

    ae0.0  02:00:86:29:89:00  up    up     0       global  173.10.10.1/24
