Overview


Versa Cloud Access Security Broker (CASB) is a security enforcement component integrated into the Versa SASE (Secure Access Service Edge) platform. It provides visibility, compliance monitoring, threat protection, and granular policy control for cloud application usage across enterprise environments.


Versa CASB works inline with Versa SD-WAN and SSE traffic flows, allowing enforcement directly at the network layer without requiring separate appliances or endpoint agents.


Key Features


Versa CASB provides the following capabilities:

  1. Cloud application discovery and Shadow IT detection
  2. Granular access control based on:
    1. Application
    2. User
    3. Device
    4. Activity type
  3. Deep inspection through SSL decryption
  4. Upload/download control for SaaS applications
  5. Threat protection and compliance enforcement
  6. Managed and unmanaged device visibility


Supported Deployment Modes


1. Inline (Forward Proxy) – Supported

Traffic flows through the Versa gateway where real-time inspection and enforcement are applied.

Requirements:

  • SSL decryption must be enabled for HTTPS traffic inspection.

2. Out-of-Band (API Mode) – Not Yet in Production

Currently not available in production.

3. Reverse Proxy – Not Yet in Production

Currently not available in production.

Recommendation: Inline mode provides the most complete enforcement capability and is recommended for managed devices.


Software Requirements



  1. Versa VOS: 22.1.x or later (21.2.x minimum for basic CASB)
  2. Versa Director: 22.1.x or later


Network Prerequisites

Before enabling Versa CASB, ensure the following:

  1. SSL inspection is fully functional
  2. DNS resolution is working on the Versa gateway
  3. URL filtering databases are updated
  4. App-ID / IPS signature databases are updated



Configuration Steps


Step 1: Enable SSL Inspection


CASB inline mode requires TLS decryption to inspect SaaS traffic.


Sample CLI Configuration


set orgs org-services <Org-name>  security profiles decrypt Forward decrypt-profile-type ssl-forward-proxy

set orgs org-services <Org-name>  security profiles decrypt Forward certificate sarath-ca

set orgs org-services <Org-name>  security decryption-policies Test rules R1 set action decrypt

set orgs org-services <Org-name>  security decryption-policies Test rules R1 set decryption-profile Forward


Step 2: Create CASB Profile

Define the cloud applications and activities to allow or block.

Supported controls may include:

  1. File upload
  2. File download
  3. Post
  4. Like
  5. Chat
  6. Share
  7. Other application-specific activities

Sample CLI Configuration


set orgs org-services <org-name> security profiles casb CASBGMIALGPT default-action predefined allow

set orgs org-services <org-name> security profiles casb CASBGMIALGPT lef-profile-default true

set orgs org-services <org-name> security profiles casb CASBGMIALGPT rules Gmil-Chatgpt match predefined-applications chatgpt predefined-application-activity [ upload_file ]

set orgs org-services <org-name>  security profiles casb CASBGMIALGPT rules Gmil-Chatgpt match predefined-applications gmail predefined-application-activity [ send upload_file ]

set orgs org-services <org-name>  security profiles casb CASBGMIALGPT rules Gmil-Chatgpt set action predefined block


Step 3: Apply CASB Profile to Security Policy

CASB profile must be mapped to the access policy rule.

Important: IPS App-ID detection must be enabled because CASB uses DPI/App-ID to detect user actions inside SaaS applications.

Without App-ID, granular actions such as:

  1. Allow Dropbox download
  2. Block Dropbox upload

cannot be enforced.

Enable IPS based App-ID Detection


set orgs org-services <org-name> security ips appid-detection enable true

set system parameters ips-appid-detection enabled


Sample Access Policy


set orgs org-services <org-name> security access-policies Default-Policy rules CASB match source user local-database status disabled

set orgs org-services <org-name> security access-policies Default-Policy rules CASB match source user external-database status disabled

set orgs org-services <org-name> security access-policies Default-Policy rules CASB match source user group-mapping-profile AD-SULAI

set orgs org-services <org-name> security access-policies Default-Policy rules CASB match source user group CN=PS,CN=Groups,DC=versaps,DC=com description PS

set orgs org-services <org-name> security access-policies Default-Policy rules CASB match source user user-type selected

set orgs org-services <org-name> security access-policies Default-Policy rules CASB set security-profile ips predefined-ips-profile "Versa Recommended Profile"

set orgs org-services <org-name> security access-policies Default-Policy rules CASB set security-profile casb user-defined-casb-profile CASBGMIALGPT

set orgs org-services <org-name> security access-policies Default-Policy rules CASB set action allow



Versa CASB provides inline cloud application security with granular activity control. Proper deployment requires:

  1. SSL Inspection
  2. CASB Profile
  3. IPS App-ID
  4. Security Policy Mapping

Once configured correctly, organizations can control SaaS application usage such as blocking uploads while allowing downloads.


Director and Concerto Deployment Notes

If Using Concerto

The required IPS profile for CASB is automatically pushed when CASB policy is deployed.

If Using Versa Director

You must manually:

  1. Create IPS profile
  2. Include signatures for app-activity class type
  3. Apply IPS profile to CASB rule


Useful Reference

Versa Documentation:

https://docs.versa-networks.com/Security_Service_Edge_(SSE)/Configuration_from_Concerto/Configure_CASB_Profiles



Troubleshooting

Verify Policy Hits

Use the following command to confirm traffic is matching the CASB profile:


show orgs org-services <Org-Name> security profiles casb statistic



Eg Output:



admin@CHN-SSE-GW1-cli> show orgs org-services DEMOORG-SSE security profiles casb statistics

                                                    DEFAULT                             RULE

                                 PROFILE      ACTION                                HIT

PROFILE NAME      HIT CNT    HIT CNT      RULE NAME       CNT

----------------------------------------------------------------------------------------

CASB                           0                   0             LINKEDIN               0

CASB-P1                     0                   0           YOU-GMAIL             0

CASBGMIALGPT       56                 0            Gmil-Chatgpt         56

GMAIL                         0                  0               GMAIL                    0

Gemini-Bard               5                   0             Bard-Gemini           5


Interpretation:

  • 0 hits = traffic not matching policy
  • Hit count increasing = traffic successfully inspected


CASB Session Verification in VSMD

To validate whether a CASB policy is functioning correctly for a specific user session, check the live session details in VSMD. This helps confirm:

  1. SSL decryption status
  2. Application identification
  3. Application activity detection
  4. Policy action applied (allow / drop)


Commands to Verify Specific Session

Step 1: Connect to VSMD


>vsh connect vsmd


Step 2: Find Session ID Using Source IP


>show vsf session all brief | grep <source-ip>


Step 3: Display Detailed Session Information


>show vsf session handle extensive <session-id>


Example Session Analysis

1. SSL Decryption Verification

The below output confirms that SSL decryption is active for this session:


SSL/TLS session information,

      Proxy Type: SSL_FORWD_PROXY, Starttls session: NO, Starttls Capability: NO

      Tenant-id: 3, Public Key Length: 72, Server Hostname: mail.google.com

      Decryption-Profile: TLS

      Decryption Policy Details:

        Rule: SSL-Decryption, Action: decrypt, Action-Type: NA

      Packet count: 0, mbuf count (inward: 2, onward: 0)

      Flags: PROTO_DETECTED, APPID_FINAL, URL_LOOKUP_BEGIN, URL_MATCH_FOUND, DECRYPT_STRM_START,

             ACTIONS_ENABLED, REQ_PARSED,

      Inward:

        Version: TLSv1.3, Cipher: TLS_AES_128_GCM_SHA256

      Onward:

        Version: TLSv1.3, Cipher: TLS_AES_128_GCM_SHA256



Interpretation

  • Proxy Type: SSL_FORWD_PROXY = Forward proxy SSL inspection enabled
  • Decryption Profile: TLS = TLS decryption profile applied
  • Rule: SSL-Decryption = Matching decryption rule
  • Traffic is decrypted successfully


2. Application Identification Verification


    Vparse Session info:

        l7_protos:             211(http) 175(google_gen) 158(gmail)

        l7_base_protos:        211(http) 175(google_gen)

        appid_flags            = 0xfb(classified,final,interim_classified,other_module_done,urlf_reported,qosmos_seen,http_header_end,)

        appid reported at c2s direction with 12 c2s pkt and 6 s2c pkt

        hold uda id            = 0

        policy_match_ev        = 1


Interpretation

The system successfully identified the application stack as:

  • HTTP
  • Google Services
  • Gmail

This confirms App-ID classification is working properly.


3. Activity Detection Verification


Appid state change:5

        c2s:2, s2c:1, Path_end event, base.ip.tcp.ssl(0)

        c2s:4, s2c:3, Classified event, base.ip.tcp.ssl.https.google_gen.gmail(0)

        c2s:12, s2c:5, Classified event, base.ip.tcp.http.google_gen.gmail(0)

        c2s:1288, s2c:855, Transaction event, upload attachment(517)

        c2s:1288, s2c:855, Transaction event, compose(513)



Interpretation

The CASB engine detected Gmail user activities:

  • Upload Attachment
  • Compose Email

This confirms granular activity detection is functioning.


4. CASB Policy Action Verification



        current_trans_ix_cts   = 42

        current_trans_ix_stc   = 42

        session_action          = drop-session

        session_action_module  = casb_tnt_scanner

        decryption policy rule match = 960 (Decrypt)

        skip_file_extract      = 0

        is_cportal_session     = false

        security-offload-status = Disabled

        ips-offload-status      = Pending

        dlp-offload-status      = Don't offload

        Transaction Discarded Id = 0

        username                = tamil

        Results: count: 46


Interpretation

  • The session was dropped based on configured CASB policy
  • Action was enforced by CASB module


This usually indicates upload block / restricted activity policy matched.

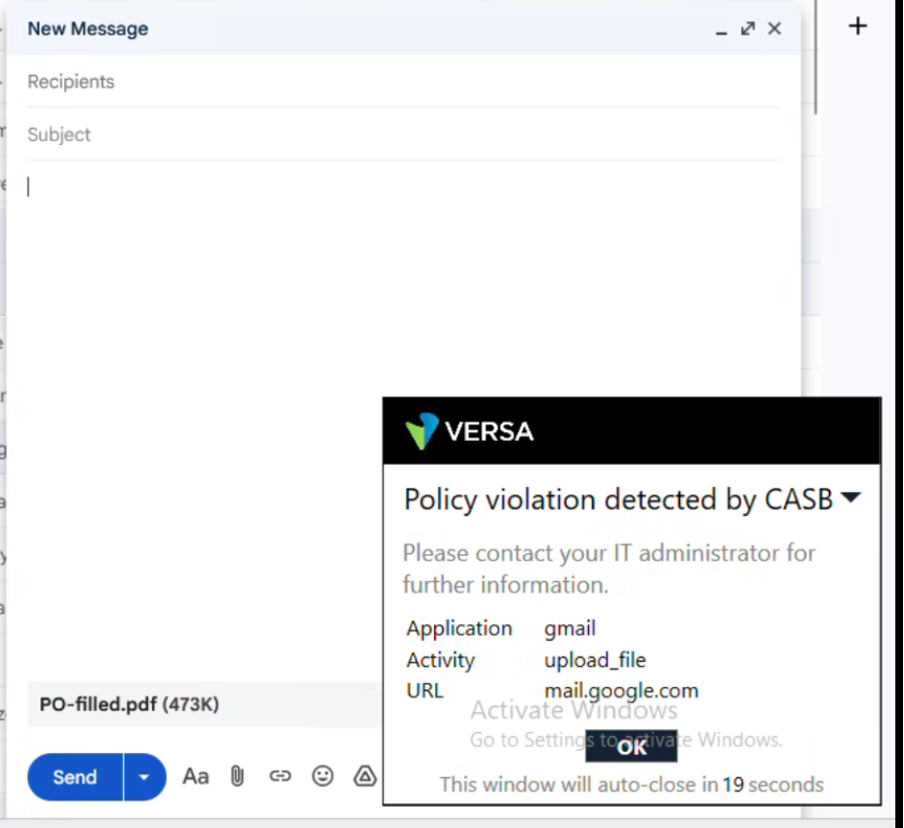

User Notification

When the CASB policy blocks the detected activity (for example, Gmail attachment upload), the end user will receive a browser/application notification similar to the screenshot shared.



This notification indicates that the requested action was denied based on the organization's security policy.



Enable CASB Debug


% set debug casb all-flags level all

%commit


Enable debug only during troubleshooting, as verbose logging may increase CPU and log volume.


Example Debug Output Analysis



2026-04-30 16:16:54.089 DEBUG [0x104] vs_casb_find_match: CASB rfc matched best rule order = 1

2026-04-30 16:16:54.089 INFO  [0x104] vs_casb_find_match: shdl 139625961281028 matched casb rule Gmil-Chatgpt(1), action block ------>Rule name and action


2026-04-30 16:16:54.090 INFO  [0x104] vs_casb_inc_rule_stats: Increase rule (tnt 3, profile 1031, rule 1) stats

2026-04-30 16:16:54.090 INFO  [0x104] vs_casb_inc_rule_stats: Increase profile (tnt 3, profile 1031) stats

2026-04-30 16:16:54.090 INFO   [0x104] vs_casb_tnt_scanner_take_rule_action: shdl 139625961281028 take action from rule Gmil-Chatgpt(1) ------>Taken action based on rule config


2026-04-30 16:16:54.090 DEBUG [0x104] _vs_identity_send_user_notification: alerts: tnt_id:3, sess_hdl:0x7efd33d2d604, client:CASB, saction:(null), src_ip:100.72.0.4, paction:(null), head:(null), message:Access to the web site is blocked at this time. Please contact your administrator for more information., md_app:gmail, md_action:(null), md_reason:(null), md_activity:upload_file, md_url:(null), pd_notif_id:(null) policy_action_obj:block --- > The activity which is being blocked.


2026-04-30 16:16:54.090 DEBUG [0x104] vs_identity_live_user_ip_tbl_find_cb: LPM search

2026-04-30 16:16:54.090 DEBUG [0x104] vs_identity_live_user_ip_tbl_lpm_search: User tamil with IP 100.72.0.4

2026-04-30 16:16:54.090 DEBUG [0x104] _vs_identity_send_user_notification: user type : VSA

2026-04-30 16:16:54.091 DEBUG [0x104] vs_identity_alerts_get_def_action: found matching rule 'Gmail'

2026-04-30 16:16:54.091 DEBUG [0x104] vs_identity_alerts_get_def_action: action : 404

2026-04-30 16:16:54.091 DEBUG [0x104] vs_identity_alert_send_vsa_notif: keystr : CASB:u:u:gmail:upload_file:u

2026-04-30 16:16:54.105 DEBUG [0x104] vs_identity_alert_ctxt_exist: for tnt_id:3, src_ip:100.72.0.4, keystr:CASB:u:u:gmail:upload_file:u

2026-04-30 16:16:54.106 DEBUG [0x104] vs_identity_alert_ctxt_lookup: for tnt_id:3, src_ip:100.72.0.4, keystr:CASB:u:u:gmail:upload_file:u, del_expired:true

2026-04-30 16:16:54.106 DEBUG [0x104] vs_identity_alert_ctxt_exist: ctxt not exist

2026-04-30 16:16:54.106 DEBUG [0x104] vs_identity_alert_send_vsa_notif: cp_url : https://captiveportal.versanow.net:44991/versa-flexvnf/alerts/index.htm?key=CASB%3au%3au%3agmail%3aupload_file%3au



Note: After you capture the debug output, please make sure to delete the same using below command.



% delete debug casb all-flags level all

%commit


Common Issues

CASB Rule Not Triggering

Check:

  • Security policy order
  • User/group match conditions
  • SSL decryption status
  • App-ID detection enabled
  • Correct SaaS application selected

Upload Block Not Working

Check:

  • IPS profile attached
  • Application activity signature present
  • Traffic decrypted successfully


Best Practices

  • Always deploy SSL inspection before CASB.
  • Use least-privilege activity controls.
  • Monitor hit counters after policy deployment.
  • Keep App-ID and URL databases updated.
  • Start with audit mode before full block mode.
