How to:


  1. Create a HUB
  2. Set HUB priority in the existing Spoke Group
  3. Verify the Workflow Template in the Device Group of Spokes
  4. Recreate the Workflow Template
  5. Commit the template again on all the required Spokes
  6. Verify LAN-VR on any Spoke Device


Create a HUB

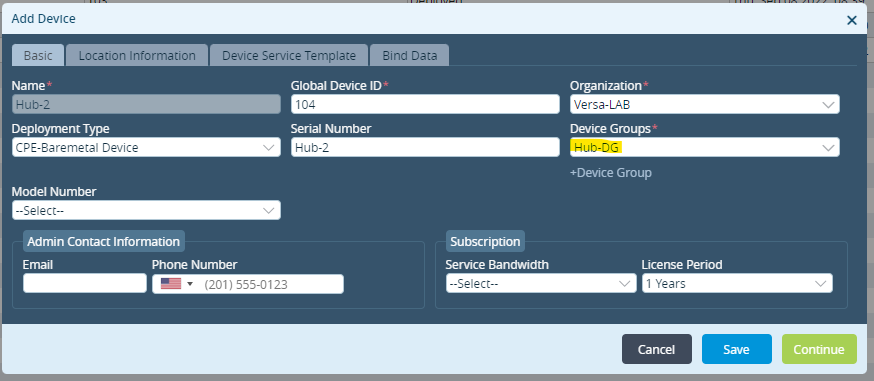

  • Add the Device Workflow with its Bind Data for the new HUB via Workflow > Devices

(Assuming the Device Group for HUB exists)


  • Provision the appliance with Staging Script

sudo ./staging.py -w 0 -c <Controller IP> -s <WAN IP on device> -g <Gateway IP> -l <IKE Local ID> -r <IKE Remote ID> -n <Serial Number>

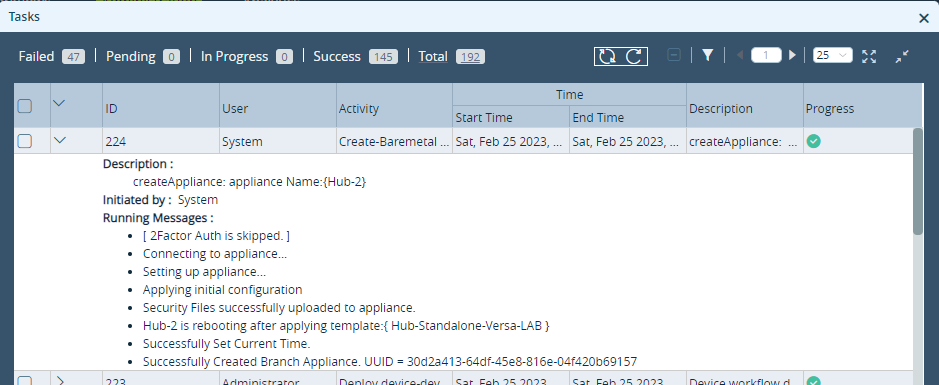

  • Verify the output of the task on VD for successful provisioning


  • Verify the status (Reachability/Config Sync/Service) of the HUB via Administration > Appliances



Set HUB priority in the existing Spoke Group

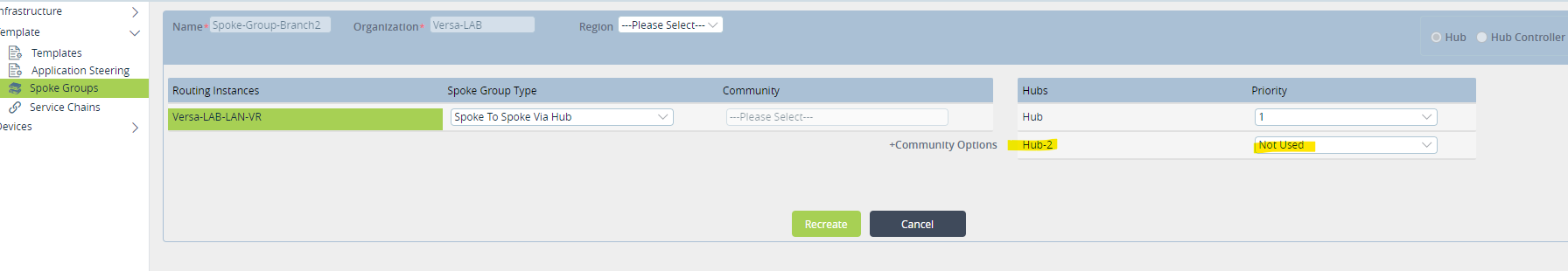

  • Once HUB is onboarded successfully, it will be listed as an option in the Spoke Groups with priority set to Not Used


  • Modify the priority as per the requirement

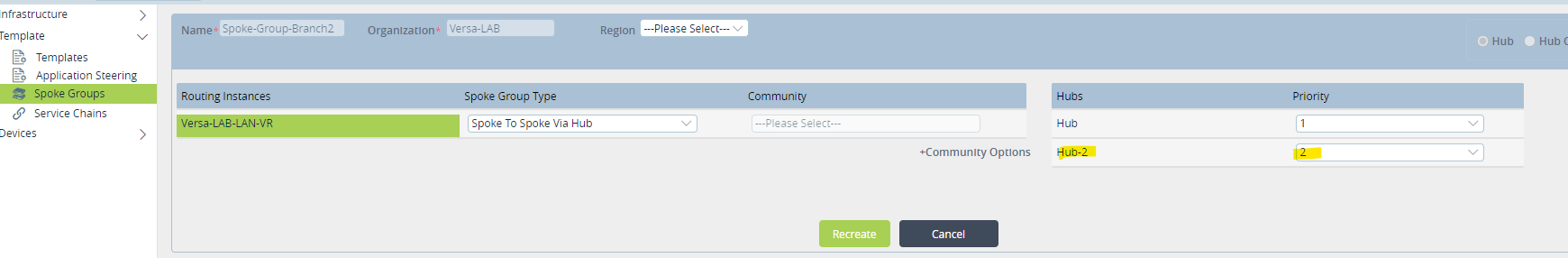

(Setting Hub-2 priority 2 for demonstration)


  • Once the priority is added, hit Create to recreate the Spoke Group



Verify the Workflow Template in the Device Group of Spokes

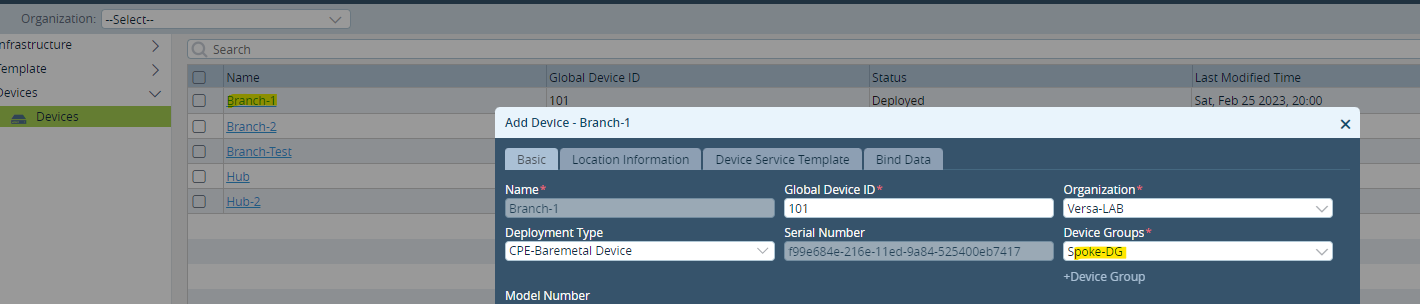

  • Verify the Device Group on any spoke appliance via Workflow > Devices


  • Verify the Workflow Template linked with this Device Group



Recreate the Workflow Template


  • open the Workflow Template verified in the above step via Workflow > Templates

(Verify the Spoke Group field contains the Spoke Group)

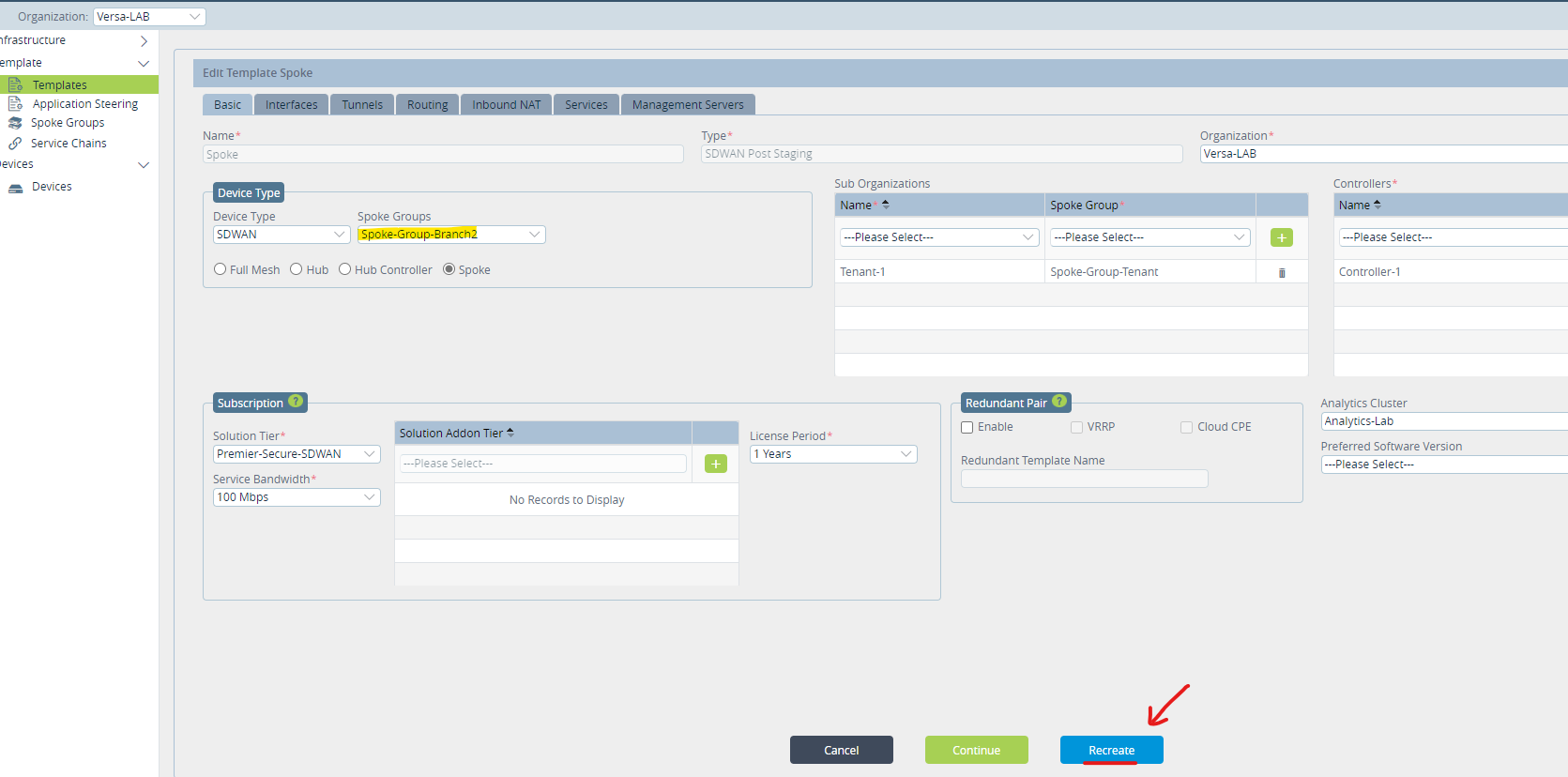

  • Hit Recreate to add the new Hub settings to the Template



Commit the template again on all the required Spokes

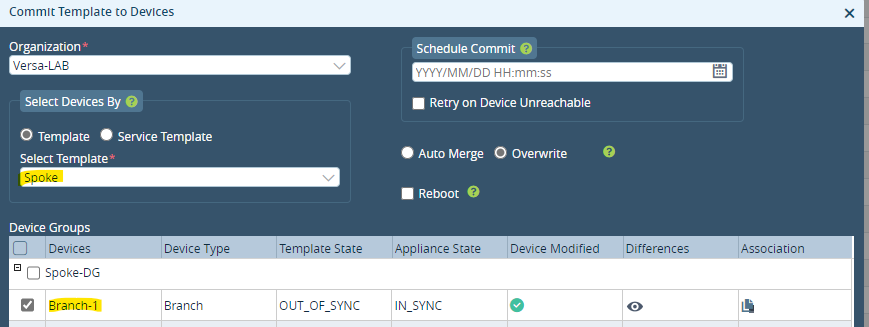

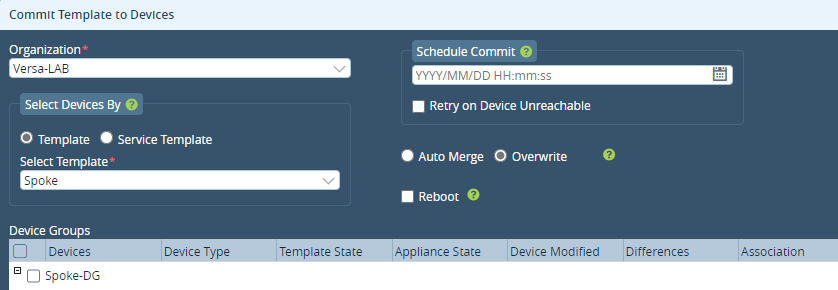

  • Hit Commit in VD. Select the ORG and Template that was recreated in the above step
  • Select the Spoke Devices in the Device Group to which you want to apply the changes

(Selected Branch-1 for Demonstration)

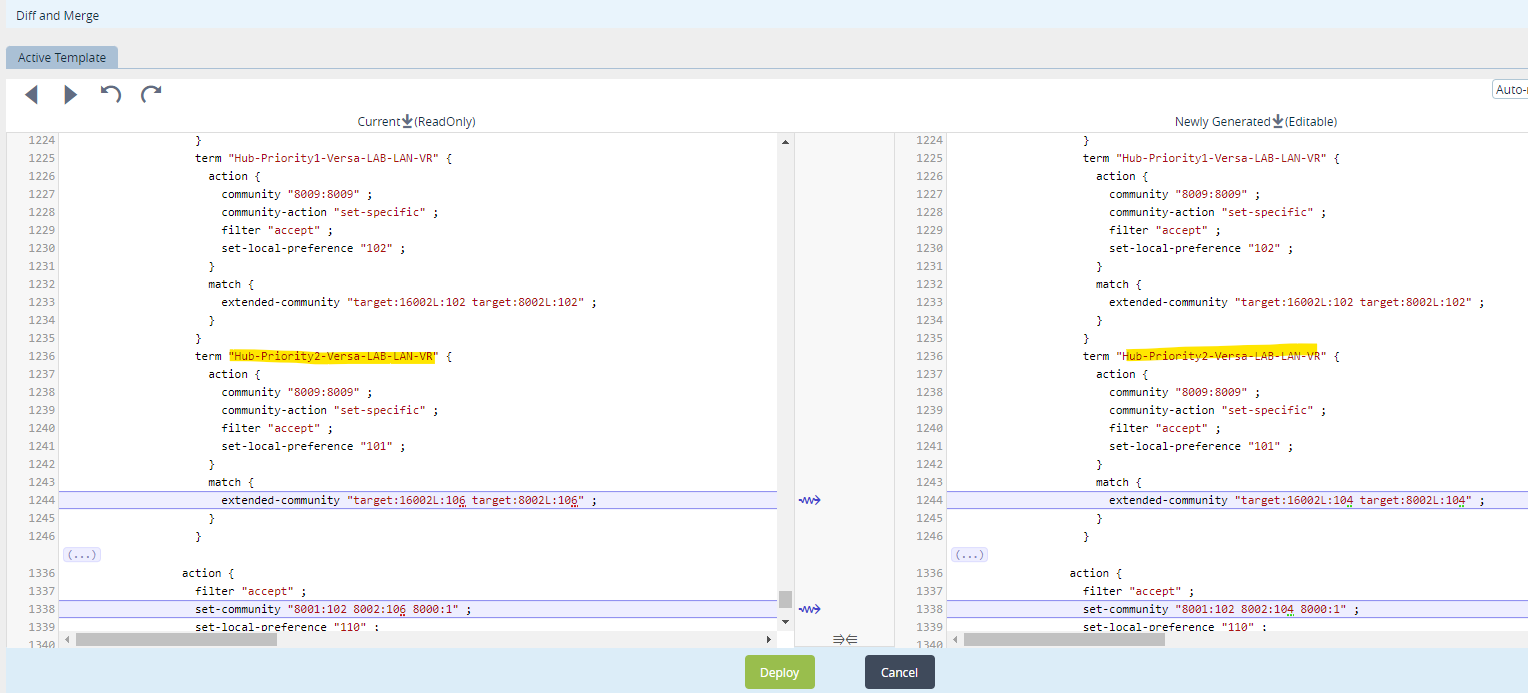

  • Verify the differences before and after committing via Diff tab.

(Extended Community for the Hub and Local preference depending on the defined HUB priority)

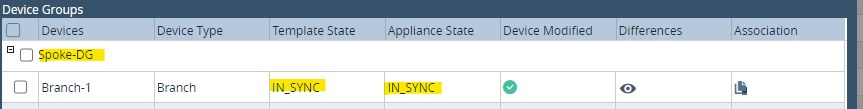

  • After commit is successful, the Appliance and Template state will be in Sync


Verify LAN-VR on any Spoke Device

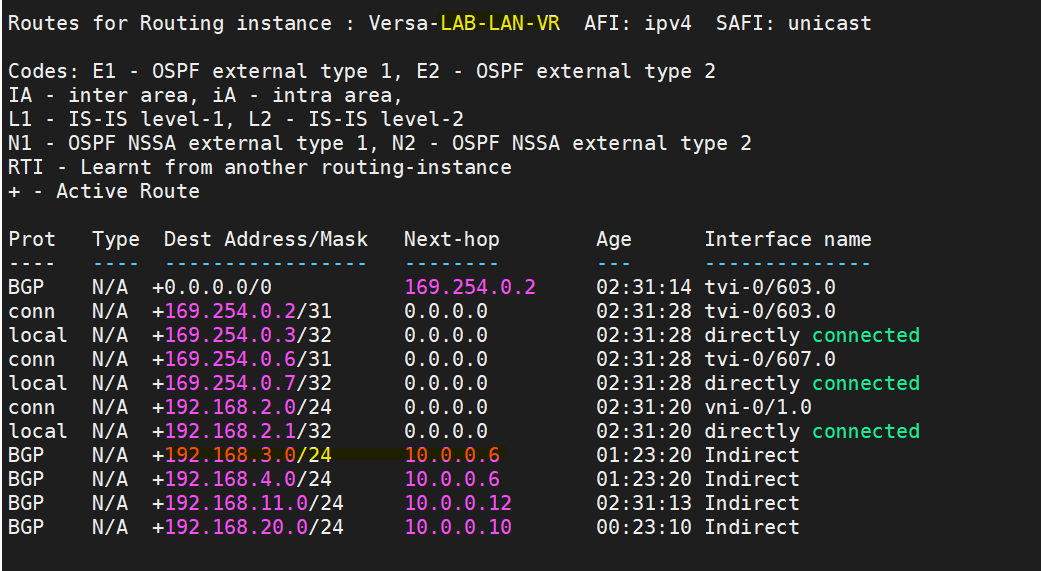

For demonstration, we can see that before Commit Spoke-1, LAN VR has HUB-1 as a next hop for reaching the LAN network behind Spoke-2 (Spoke to Spoke via HUB)

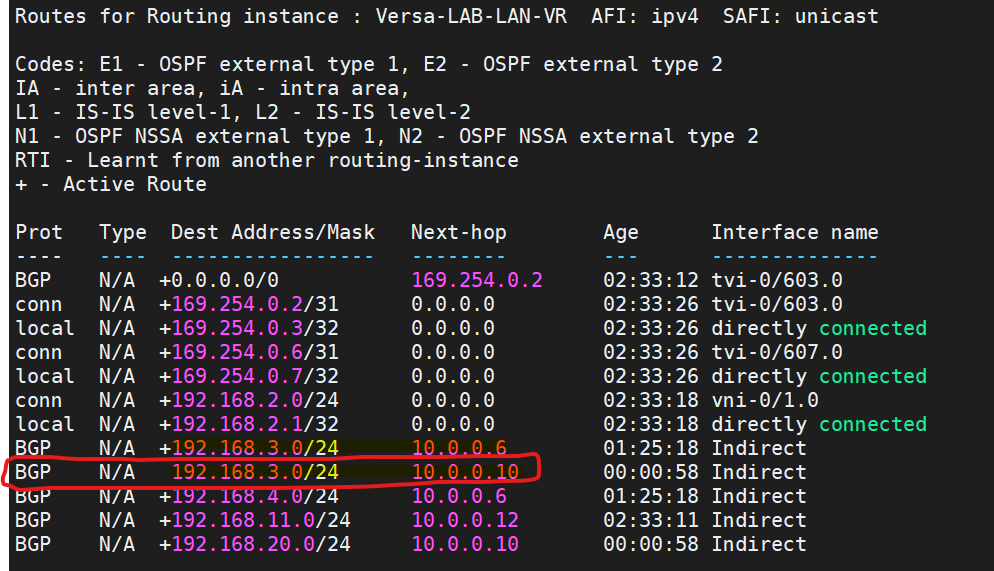

After Commit is successful, Spoke-1 LAN VR added HUB-2 as the next hop for reaching the LAN network behind Spoke-2
