The following document will help you on how to configure Group, Profile, User, Roles on the Active Directory and Configuration & Troubleshooting on Versa Director
Assumption: The Active Directory installation is already completed. Below is the process to prepare the configuration for the Versa Director.
- The protocol we use to communicate with AD is “LDAP-over-clear-text”
- AD-supported version is 3.
To check AD-supported versions, we need to import active directory
Command: Import-Module activedirectory
Version verification,
Screen: A
Active Directory Configuration:
Step 1: Create an “organization unit” under “Active Directory”.
EX: Active Directory name: versa.com (In our case domain name is versa.com)
*Organization name can be anything, it is defined by user
Organization name: <My_Organization> (user-defined name)
For more detail refer to the screenshot (Screen1)
Create “organization unit”: Right-click on “versa.com”-> Select “new”-> select “organization unit”
- Give Name: <any name>
Example: “My_Organization” Eg: Versa-Networks, Comcast, Lumen, Etc
Note: “My_Organization” can be created anywhere, under the versa.com hierarchy or any of the organization
Screen:1

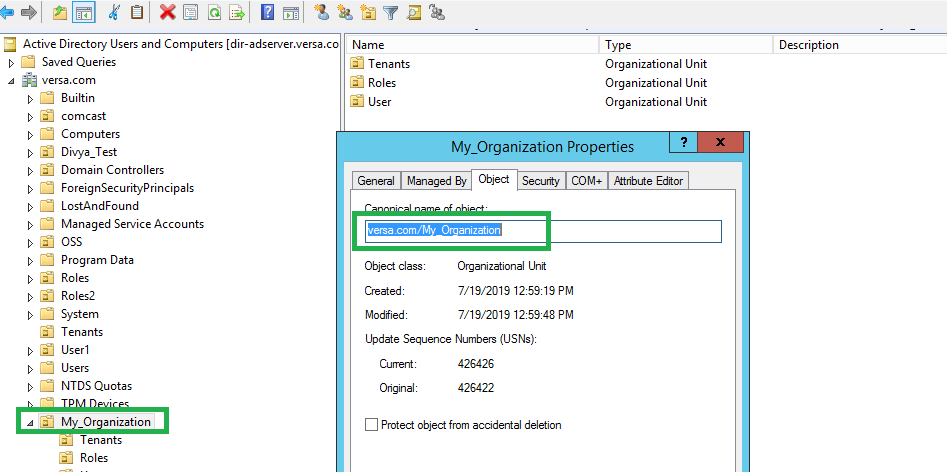

Example: To verify the properties of “My_Organization”, the screenshot is attached.
Screen:2
Note:
OU: Organization Unit
Tenant is an Organization

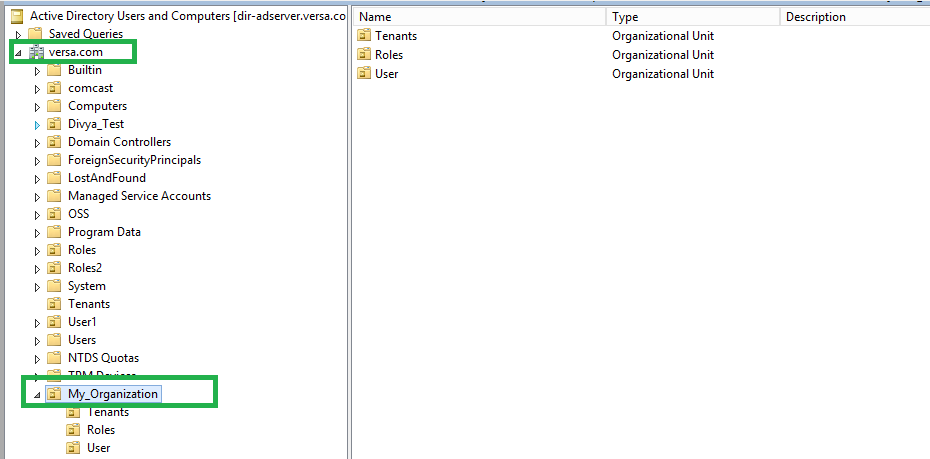

Step:2 Create Tenants -OU, Users -OU, and Roles -OU under “My_Organization”
Note: you can create Tenants -OU, Roles -OU, and Users -OU anywhere under “versa.com”. it is not mandatory to keep tenants, roles, and users under the same OU(My_Organization)users
- You can create <Tenants> -OU, with user-defined
Ex: Test <user defined name>
“Tenants”-OU can be named as “Test”-OU. It is user-defined.
We can create, “Tenants”-OU with any name.
2. You can create <Roles> -OU, with user-defined
Ex: Test1 <user defined name>
“Roles”-OU can be named as “Test”-OU. It is user-defined. We can create, “Roles”-OU with any name.
3. You can create <Users> -OU, with user-defined
Ex: Test2 <user defined name>
“Users”-OU can be named as “Test2”-OU. It is user-defined. We can create, “Users”-OU with any name.

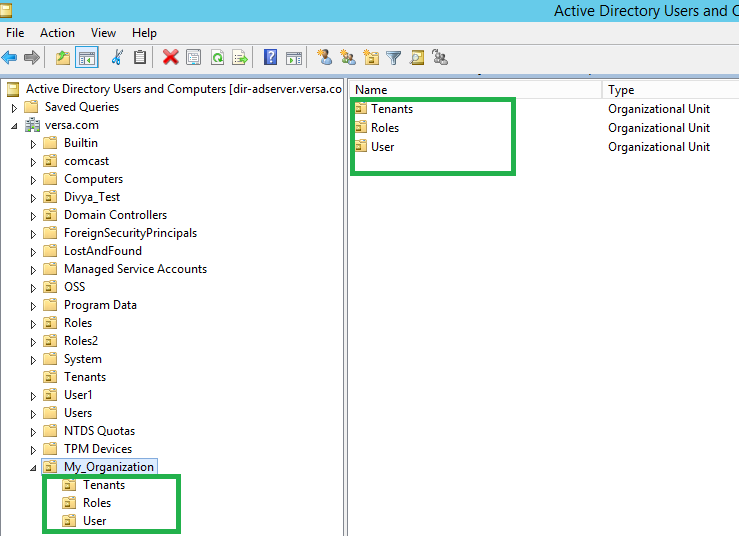

Example: Tenant-OU, User-OU, and Roles-OU can be part of 3 different or same organization units
Creation: Create “organization unit”: Right-click on “My_Organization”-> Select “new”-> select “organization unit
Note: It is not mandatory to create 3 different organization units, for tenants, Roles, and Users. We can create all users, tenants, and roles under the same organization units.,
Screen:3

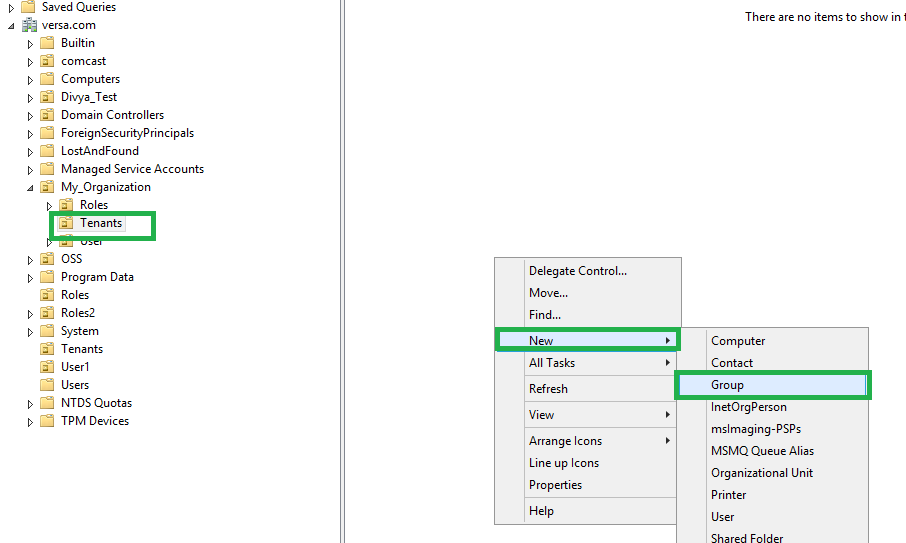

To add a Tenant: Click on your “your tenant organization unit-> right click->select “new”-> “Group”
Ex: Tenant -> right click->select “new”-> “Group”. (Here organization name is Tenants)

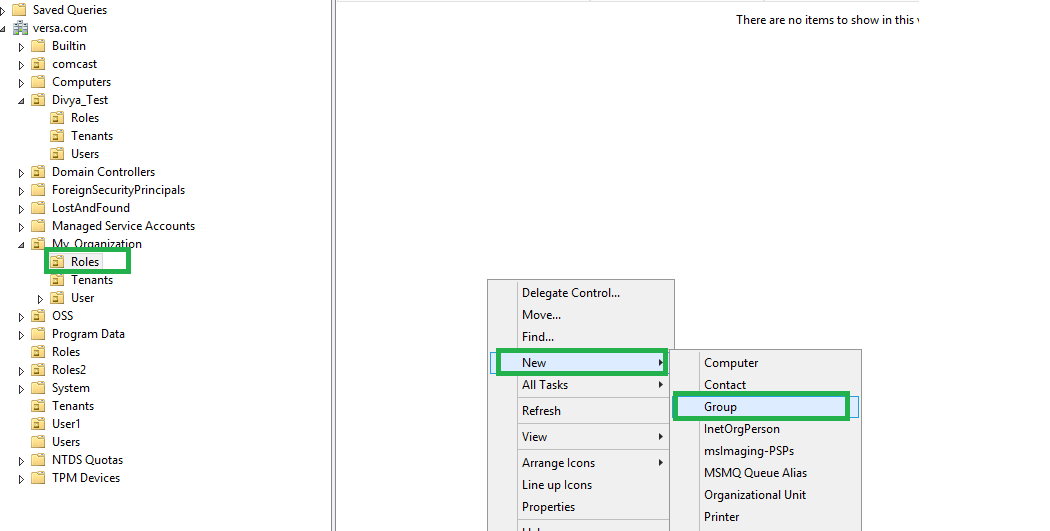

Screen:4
Screen:5

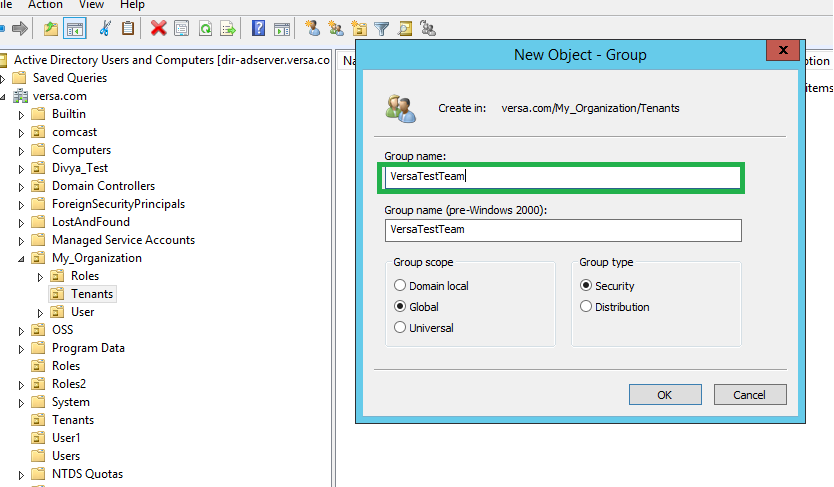

Note: Tenant name “VersaTestTeam” is case-sensitive

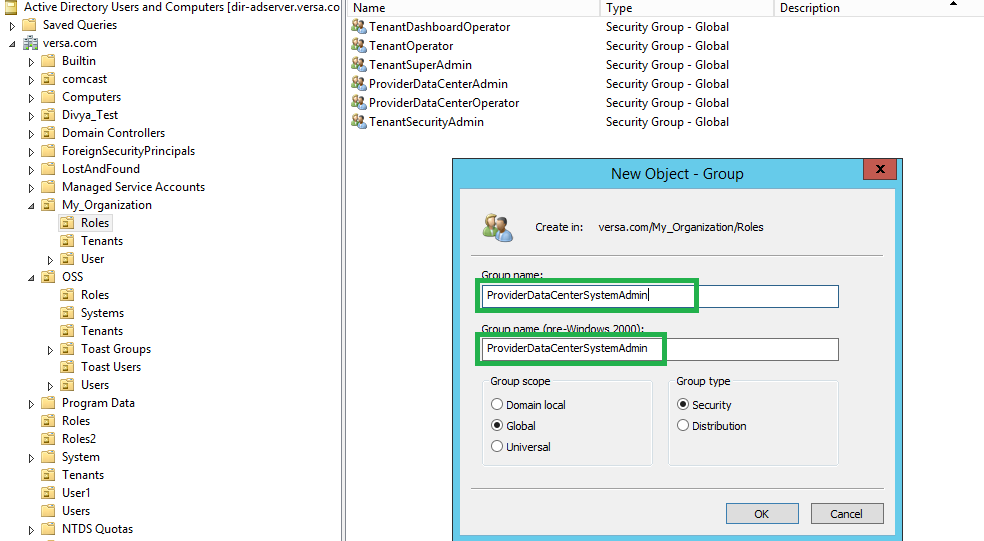

Add a Role : Click on “your role organization”-> right click-> select “new”->select “group”
Ex: click on “Roles”->right click-> select “new”-> select “group”
Different Pre-defined Roles supported(Apart from this user can also configure Custom roles):
- ProviderDataCenterAdmin
- ProviderDataCenterSystemAdmin
- ProviderDataCenterOperator
- TenantSuperAdmin
- TenantSecurityAdmin
- TenantDashboardOperator
- TenantOperator
Note: Roles are case sensitive, it must be the same as screen7
Screen:6
Screen:7

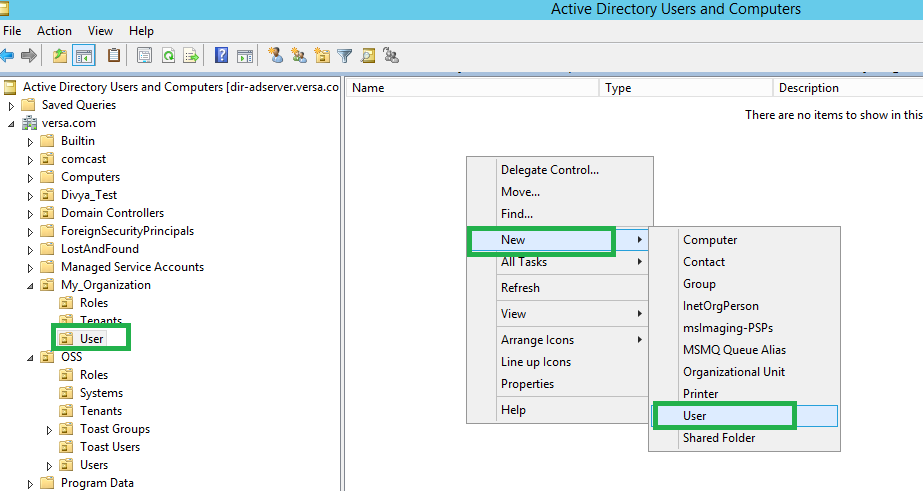

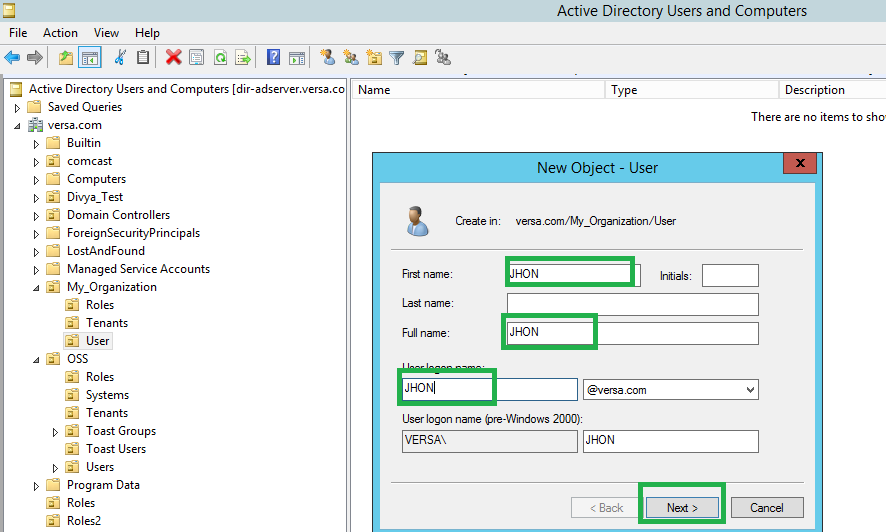

Add a user: Select “your user organization unit”-> right click-> select “new”-> select User
Ex: select “User”->right click-> select “new”-> Select User
Screen:8

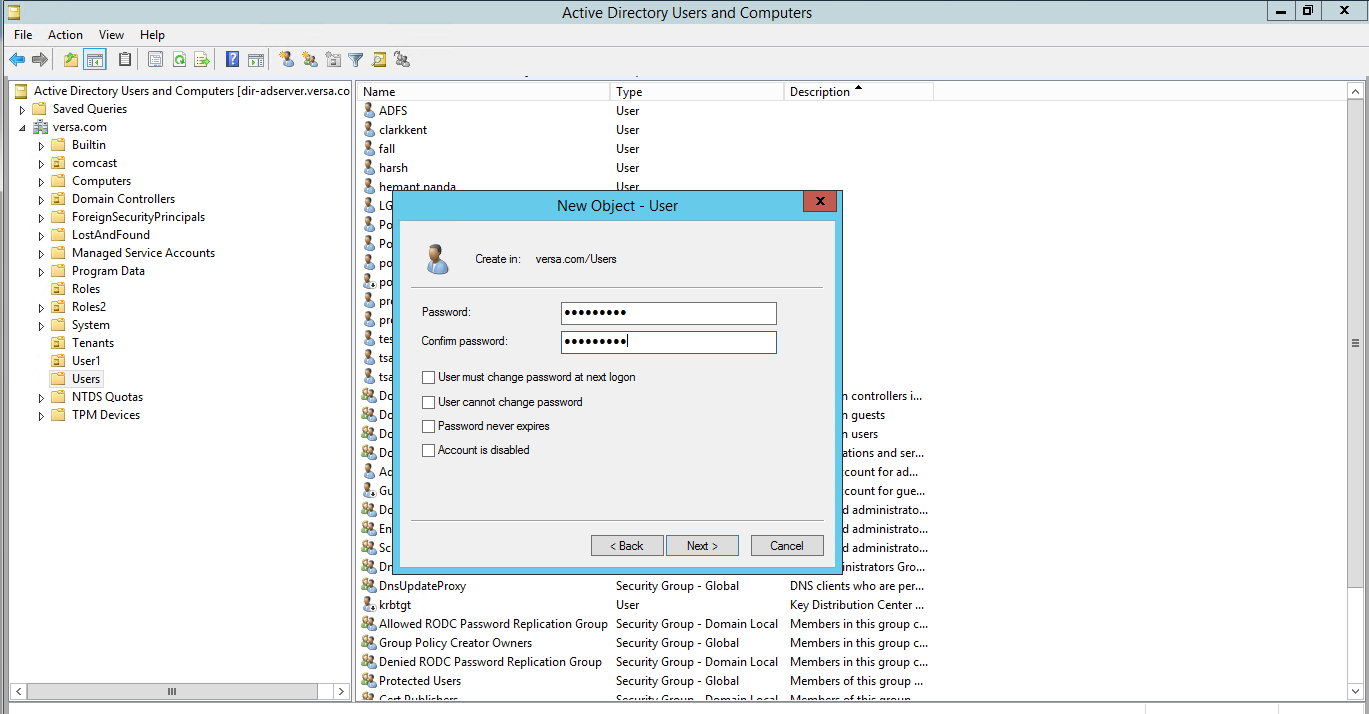

Screen:9

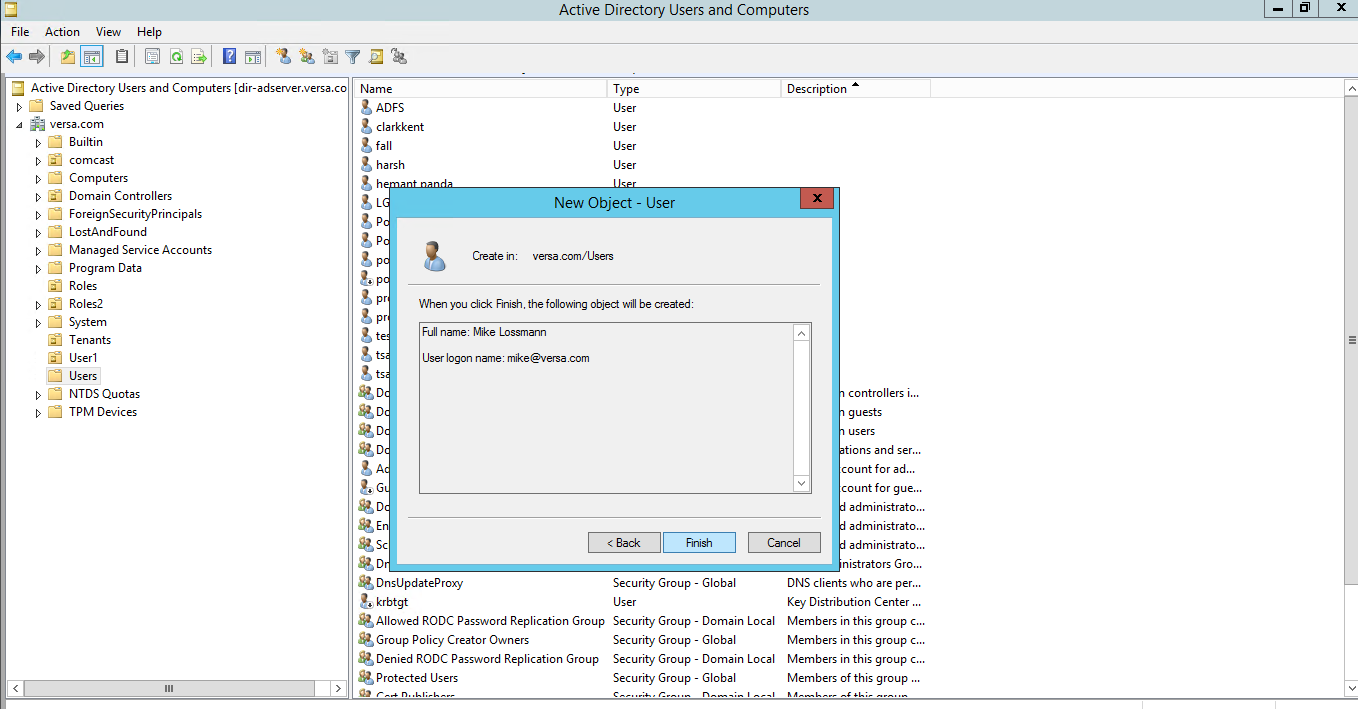

Screen:10
Note: Users’ are case-insensitive
Screen:11

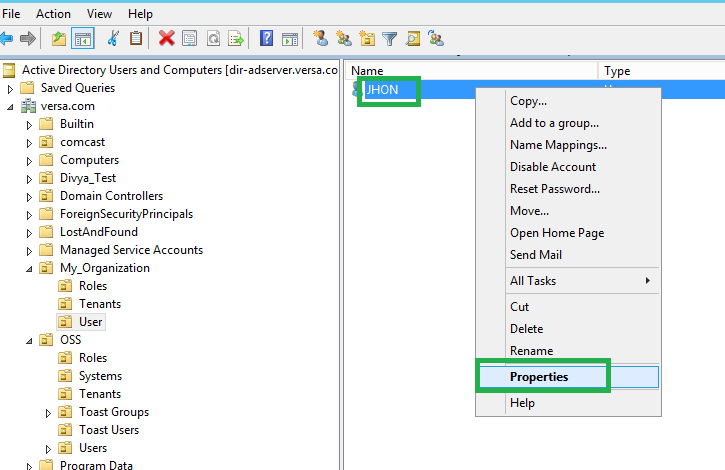

To Configure a newly created user, use the option mentioned below:
We must add roles and tenants (org) to the newly created user.

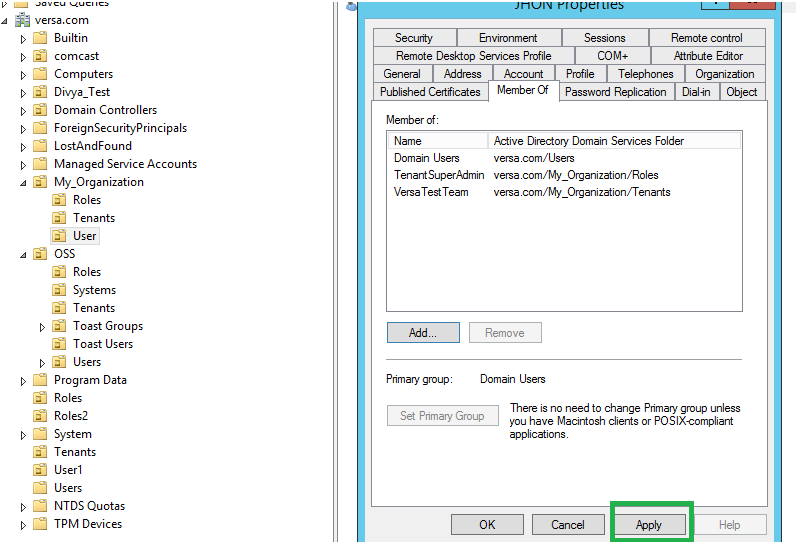

EX: The “JHON “user we created, needs to add tenant (org-> VersaTestTeam) and role (any versa supported role which is required (shown in screen7)
Screen:12

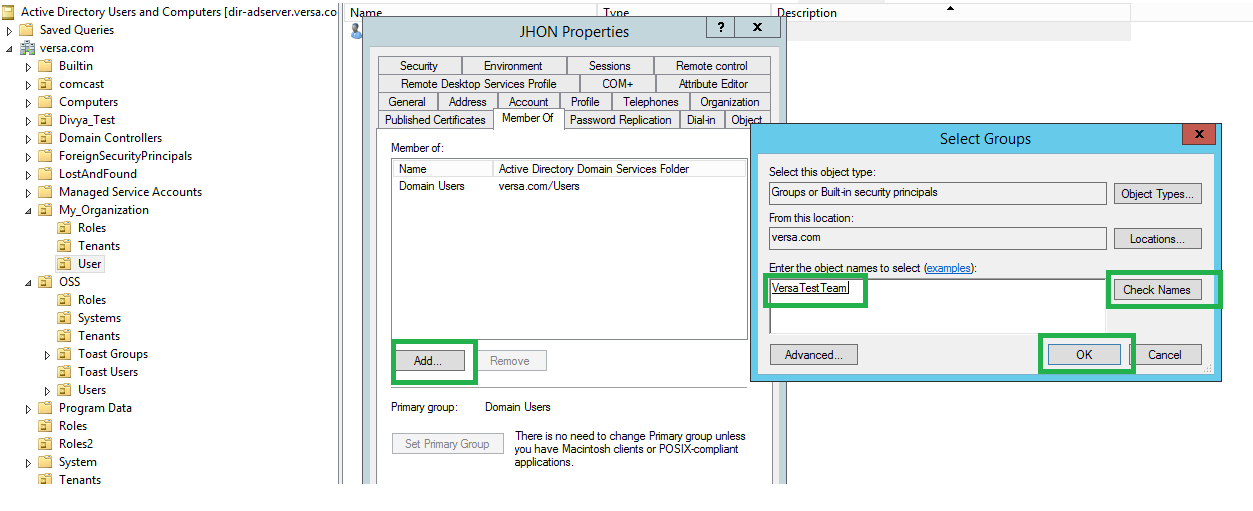

To Associate the Created user with the respective Org (For the System user this is not needed):
Screen:13

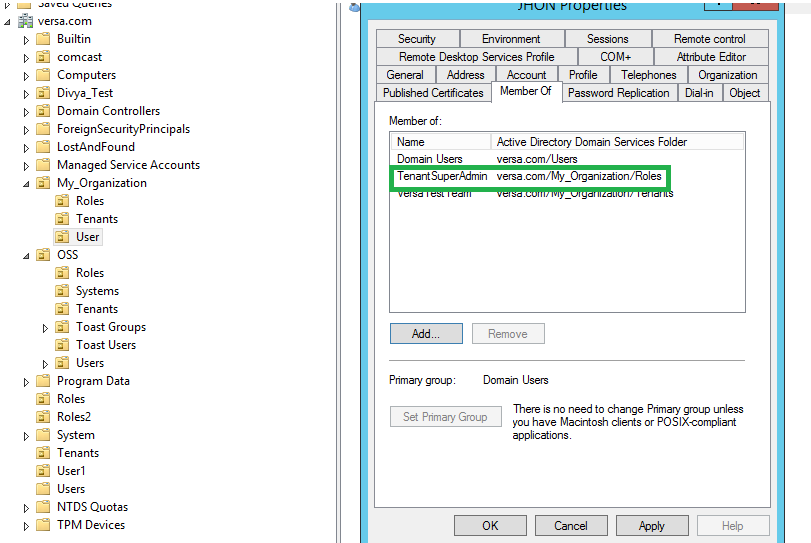

To Assign the Role of that user

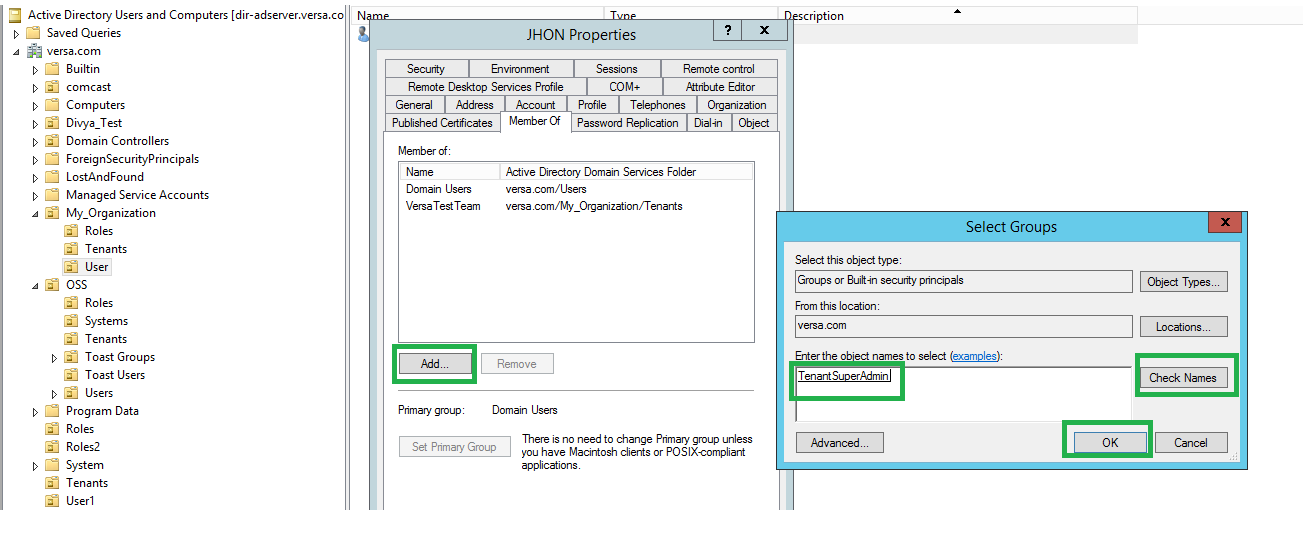

Screen:14
Screen:15
Screen:16
Configuration Versa-Director with AD:

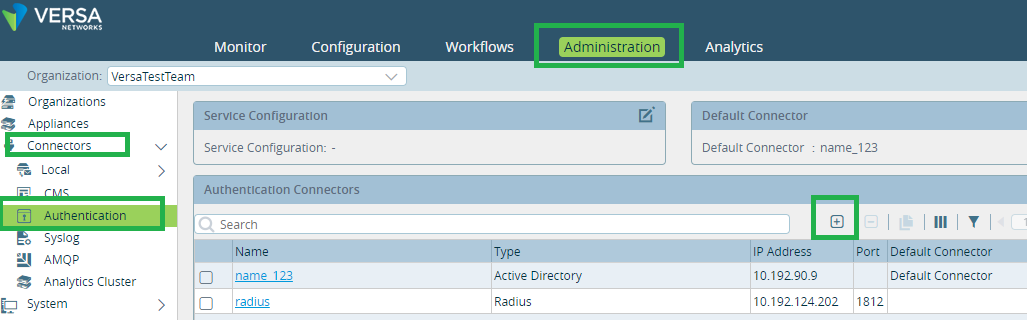

Login to “Versa Director”, go to “Administrator”-> click on “Connectors” -> click on “Authentication”
In “Authentication Connectors” section, please click on “+” button (as shown in the screen)

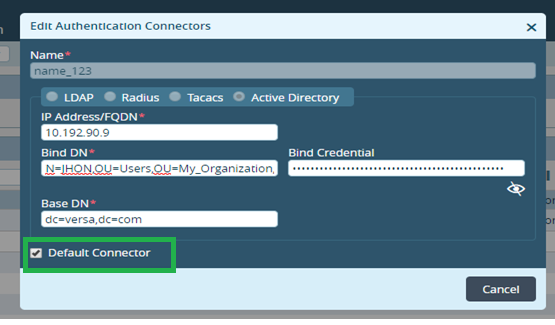

Screen: 17
Add the values as entered below(screen19),
The Versa Director uses BIND credentials to authenticate and grant access to the user's DB
For BIND DN: In AD, open powershell->Import-Module activedirectory-> enter command “Get-ADUser <username>”
Note: Here we can use service user or versa delegated role assigned user (any user(with Versa Roles or without versa Roles)).
Example: Get-ADUser JHON
(To run the above command, we need to import the Active Directory module)
Command to import module: Import-Module activedirectory

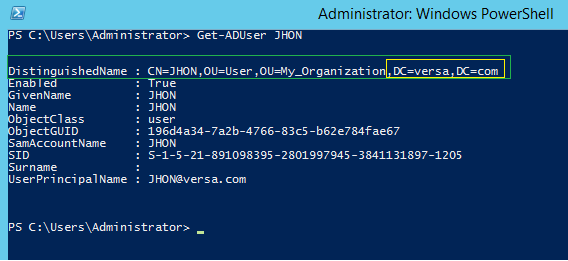

Screen:18
Bind DN:CN=JHON,OU=Users,OU=My_Organization,DC=versa,DC=com
Note: DistinguishedName value is Bind Dn value
Which is highlighted on screen 18’green color’
Base DN: DC=versa, DC=com
Which is highlighted in screen 18 ‘yellow color'
There are two types of AD connectors Logins, Default Authentication login (In screen 19, if you check the default connector) or (Non-Default authentication login In screen 19, if you uncheck the default connector)
Keys | Values | Example | Screen Nos |
Name | <user defined> | Name_123 | screen 19 |
IP address/ FQDN | Active director username or password | 10.192.90.9 | Screen 19 |
BIND DN | Distinguish name ( BIND DN) | CN=JHON,OU=Users,OU=My_Organization,DC=versa,DC=com | Screen 18 |
BIND Credentials | Password for BIND DN user | password | Screen 19 |
Base DN | Extracted from Distinguished name | ,DC=versa,DC=com | Screen 18( highlighted in yellow color) |
Default Connector | If check default connector box | System users and tenant users can able to login Assumption (connector is associated with tenant (org))
| Screen 19 and screen-21 |
If we uncheck default connector | Only tenant users can able to login Assumption (connector is associated with tenant (org))
| screen 21 |
System user-login:
If we enable the Default Authentication connector, only system users (such as Provider data center admin user or Provider data center system admin or Provider data operator. These roles should be assigned to the user in the Active directory) could able login into Versa Director.
Screen:19
The username for login must be the versa delegated role assigned (roles are Provider Data Center Admin, Provider Data Center System Admin, Provider Data Operator in AD) user. The user is case insensitive.
Example: JHON/jHon /Jhon (anything will work as it is case insensitive)
Screen:20
Tenant Login: assume that, user “JHON” is associated with tenant roles (either Tenant dashboard operator, Tenant Security admin, Tenant Super admin, and Tenant operator in AD) and associated with tenant “VersaTestTeam” as mentioned in screen 16
Example: <user>@<tenant name>
Username: jhon@VersaTestTeam

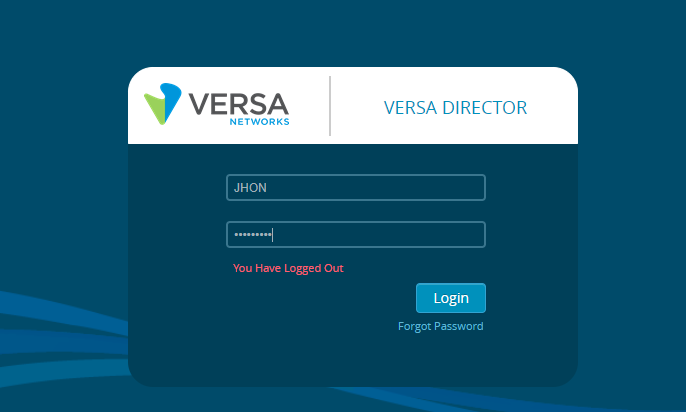

Try to log in to Director as shown on screen 22
If the default connector is disabled, then one needs to associate the connector under “Authentication connector” corresponding to the org as shown in screen 21, with that all tenant users could Login to Versa Director
Navigation: Login to VD->“Administrator”-> organization-> click on the org

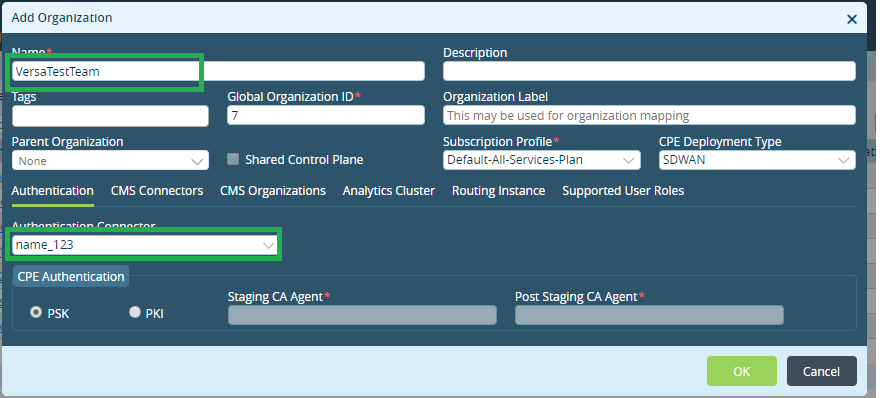

Screen:21
Example user-defined: In screen 19, the name of connector is “name_123”(“name_123” is user-defined, instead of “name_123” can be named as “<anything>”). This connector (name_123) needs to be associated with the tenant name “VersaTestTeam”, ”VersaTestTeam” is user defined, instead of “VersaTestTeam” can be named as “<anything>” But, make sure “org(VersaTestTeam)” is created in AD as shown in screen5), as shown in screenshot 21 be named user-defined
As mentioned above, To allow the tenant user to login, it is required to associate an Authenticator Connector under the tenant's Org configuration

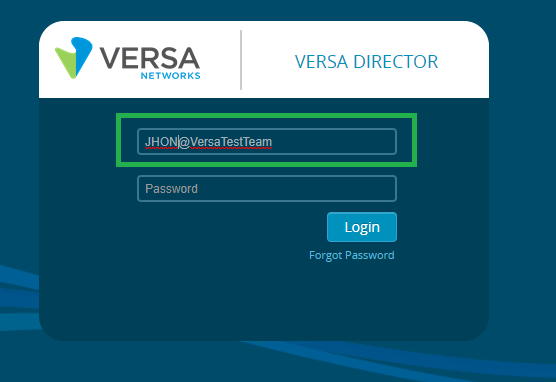

Screen:22
Troubleshooting steps:
- Logs path to Debug the issue
/var/log/vnms/ncs/vnms-external-auth.log
- Command to run directly from the shell to check if the client can connect and bind to the server.
Command: /opt/versa/vnms/scripts/externalauth/ad_client.py --address <AD IP> --ad-username "<BindDN>" --ad-password <password> --username <username> --password <user password> --base-dn "dc=<base-dn> "
Example:
/opt/versa/vnms/scripts/externalauth/ad_client.py --address 10.192.90.9 --ad-username "cn=srv-nms,ou=Service Accounts,ou=users,ou=OSS,dc=versa,dc=com" --ad-password Versa@123 --username test --password Versa@123 --base-dn "dc=versa,dc=com"
